SICK ZLD18 - Page 145

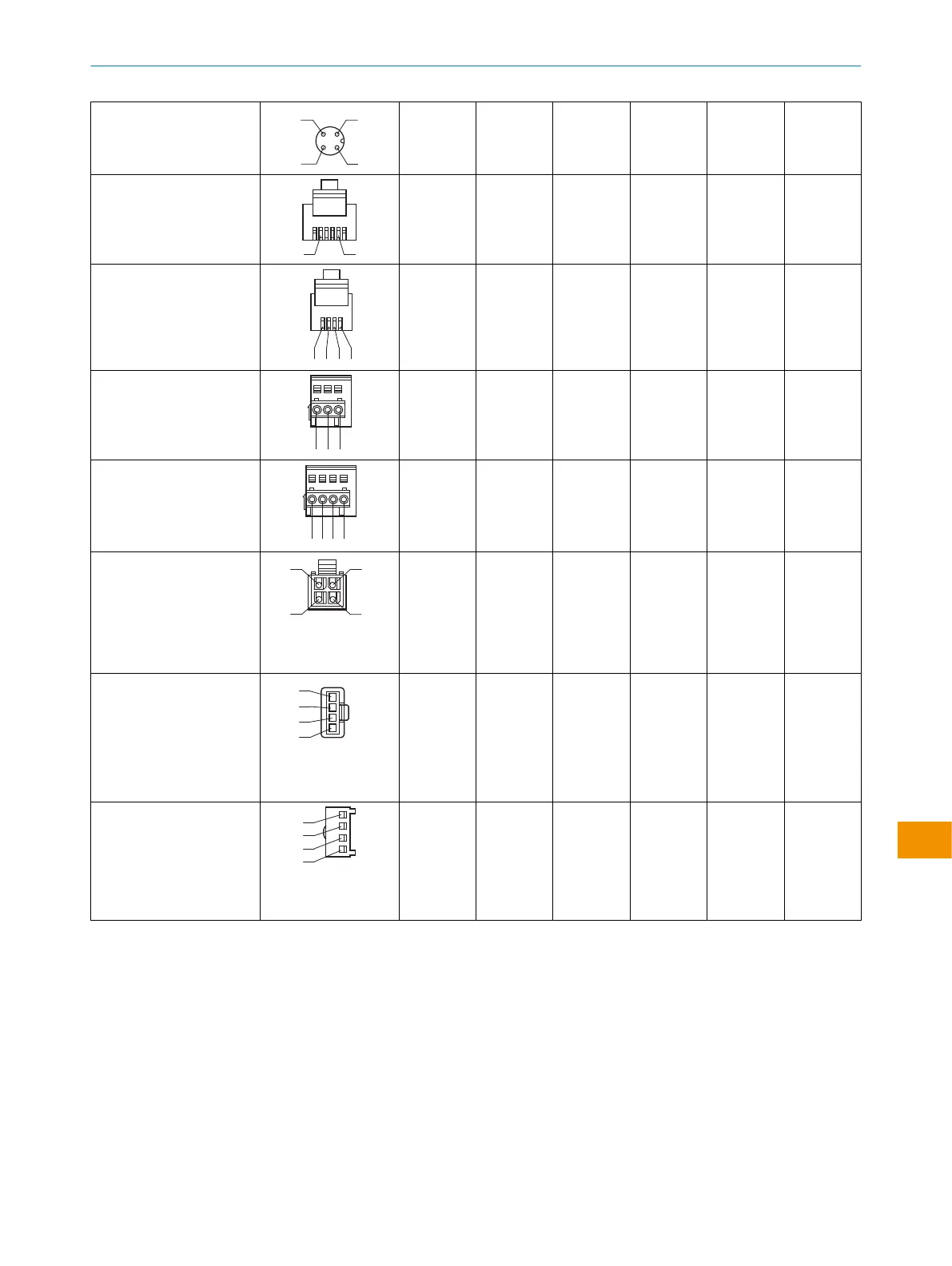

-xxx4xx
M12，4p
3
4
1
2
+ (L+)
(BN)
Q2
(WH)
- (M)
(BU)
Q1
(BK)
- -
-xxxAxx
RJ12
2 5
n. c. + (L+)
(BN)
Q1
(BK)
Q2
(WH)
- (M)
(BU)
n. c.
-xxxBxx
RJ9
1 2
3 4
+ (L+)
(BN)
Q2
(WH)
- (M)
(BU)
Q1
(BK)
- -
-xxxCxx
Wago 733-103
3
2 1
+ (L+)
(BN)
Q1
(BK)
- (M)
(BU)
- - -
-xxxDxx
Wago 733-104
34 2 1
+ (L+)
(BN)
Q2
(WH)
- (M)
(BU)
Q1
(BK)
- -
-xxxExx
Molex 23025-0400
(2x2)
34
12
Q1
(BK)
Q2
(WH)
+ (L+)
(BN)
- (M)
(BU)
- -
-xxxFxx
Tyco 1445022-4 (1x4)
1
2
3
4
+ (L+)
(BN)
Q2
(WH)
- (M)
(BU)
Q1
(BK)
- -
-xxxGxx
Wuerth 61900411621
(1x4)
1
2
3
4
+ (L+)
(BN)
Q2
(WH)
- (M)
(BU)
Q1
(BK)
- -
1)
连接器前视图
5.1 关于 UL 认证的提示
蓝色外壳类型（Zxx18-1xxxxx ... Zxx18-9xxxxx）：
•
Type 1 enclosure
清澈外壳类型（Zxx18-Axxxxx ... Zxx18-Jxxxxx）：
•
Type 1 enclosure
•
Class 2 power supply required
