Mounting position, mounting clearances
4.1 Standard mounting position
SITOP expansion modules
56 Equipment Manual, 09.2022, A5E36605235-2-76
Output current as a function of the ambient temperature and mounting height
Buffer module 6EP4231-7HB00-0AX0: -25 … 70 °C without derating
Buffer module 6EP1961-3BA01: -25 … 70 °C without derating
Inrush current limiter 6EP1967-2AA00: -25 … 60 °C without derating
Inrush current limiter 6EP4683-6LB00-0AY0: -40 … 70 °C without derating

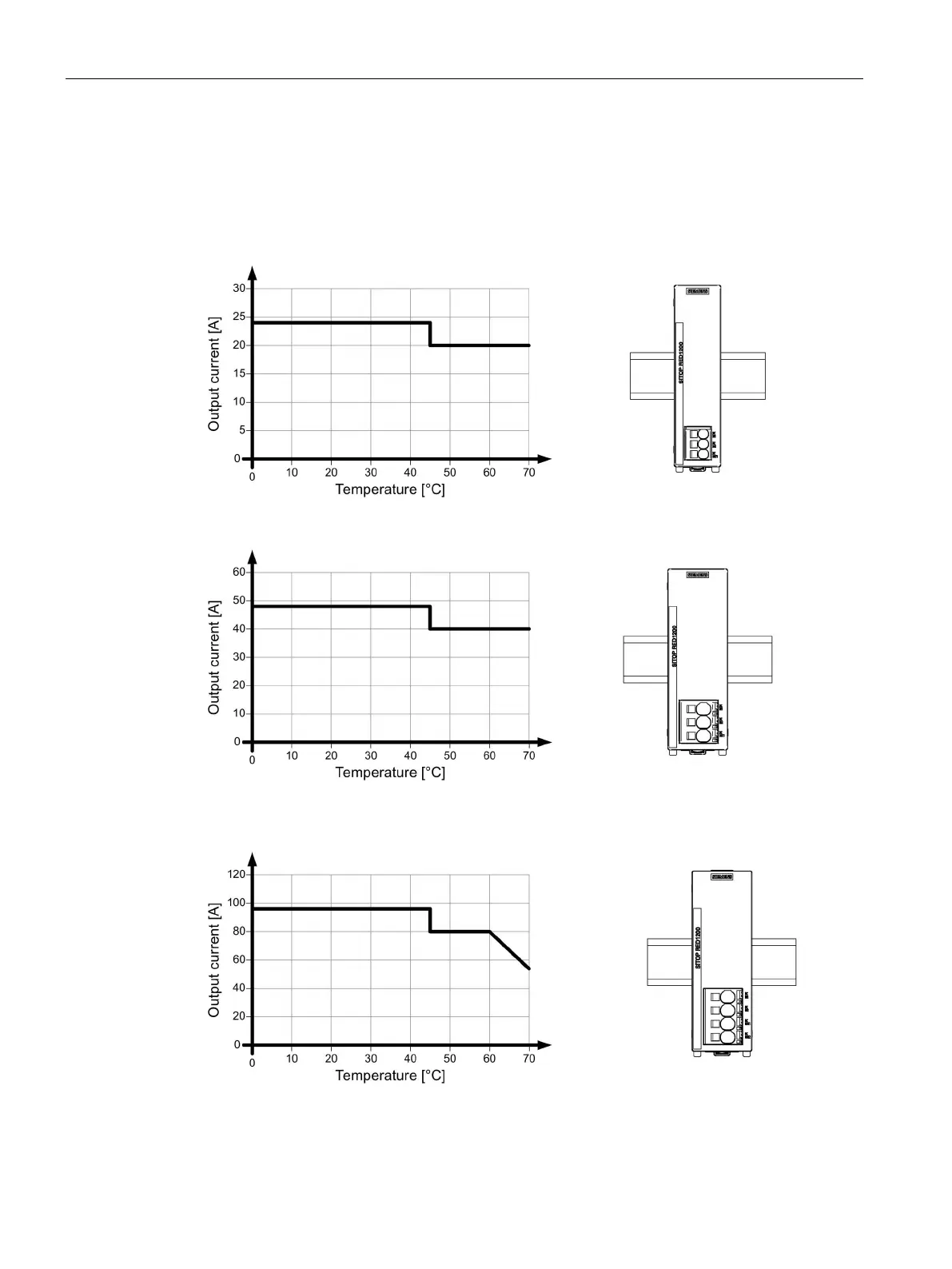

Figure 4-1 6EP4346-7RB00-0AX0: Output current in the standard mounting position
Figure 4-2 6EP4347-7RB00-0AX0 and 6EP4347-7RC00-0AX0: Output current in the standard
mounting position
Figure 4-3 6EP4348-7RB00-0AX0: Output current in the standard mounting position
