Mounting position, mounting clearances
4.1 Standard mounting position
SITOP expansion modules
Equipment Manual, 09.2022, A5E36605235-2-76
57

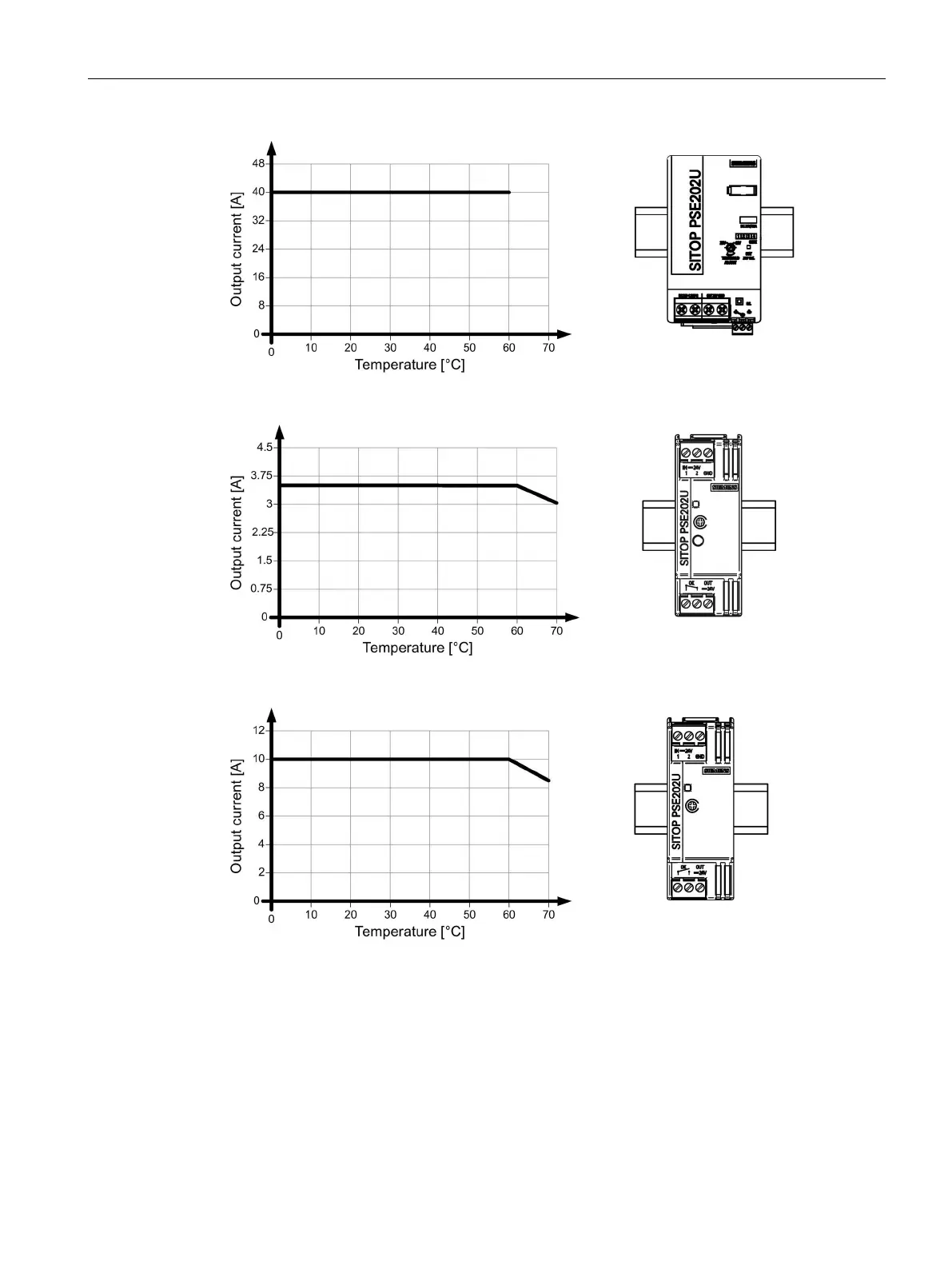

Figure 4-4 6EP1961-3BA21: Output current in the standard mounting position
Figure 4-5 6EP1962-2BA00: Output current in the standard mounting position
Figure 4-6 6EP1964-2BA00: Output current in the standard mounting position
