861-9601.9 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • Revision 11 65/214

Installation

Preparing the busbar

sections

➭ Undo the bolted joints ① and ② .

➭ Remove the bolted joint ③ .

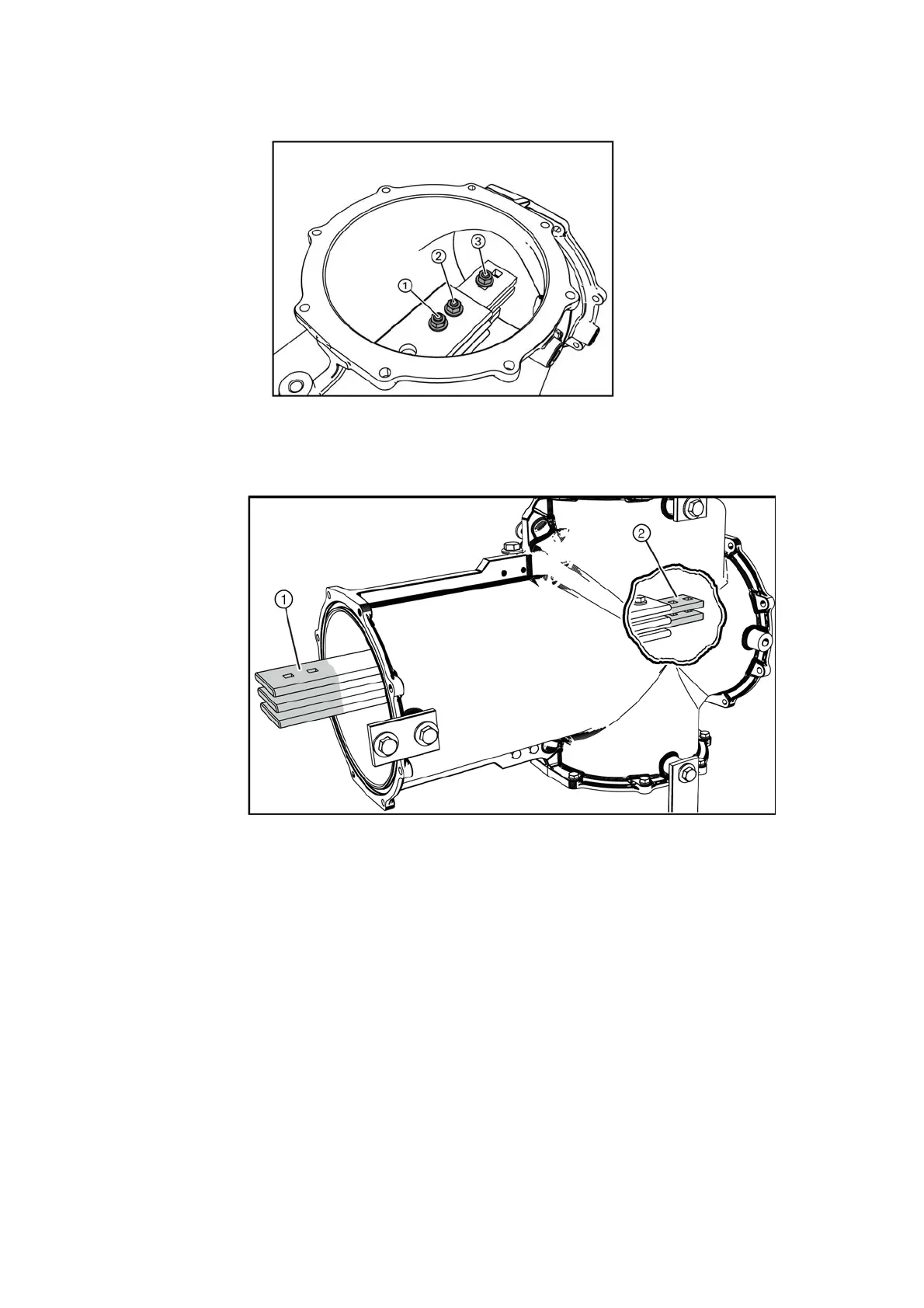

Fig. 47: Bolted joints at the busbar section

➭ Clean the links at the busbar sections using an emery sponge and a lint-free cloth.

Then, apply a very thin film of the supplied mounting paste.

①

Link at the busbar

②

Link at the joint of the busbars
