Siemens Albatros2 Technical Manual

2
Engineering use
Ro
om units
QAA74
12
Siemens Graphical User Interface UI400 CE1U2348en
Building Technologies 2014-06-03
It is normally installed vertically (90°), e.g. on a wall surface. The mounting surface
may be inclined however.
Device Protection as per EN 60529
QAA74 IP40
l Mounted
The following table shows possible power supplies.
Power supply Explanation Note
Via bus (2-wire) Bus power BSB Not backlit
Via controller (3-wire)
At connection G+ on the
controller
Backlit
Via external power supply
Observe section "External
power supply"
Backlit

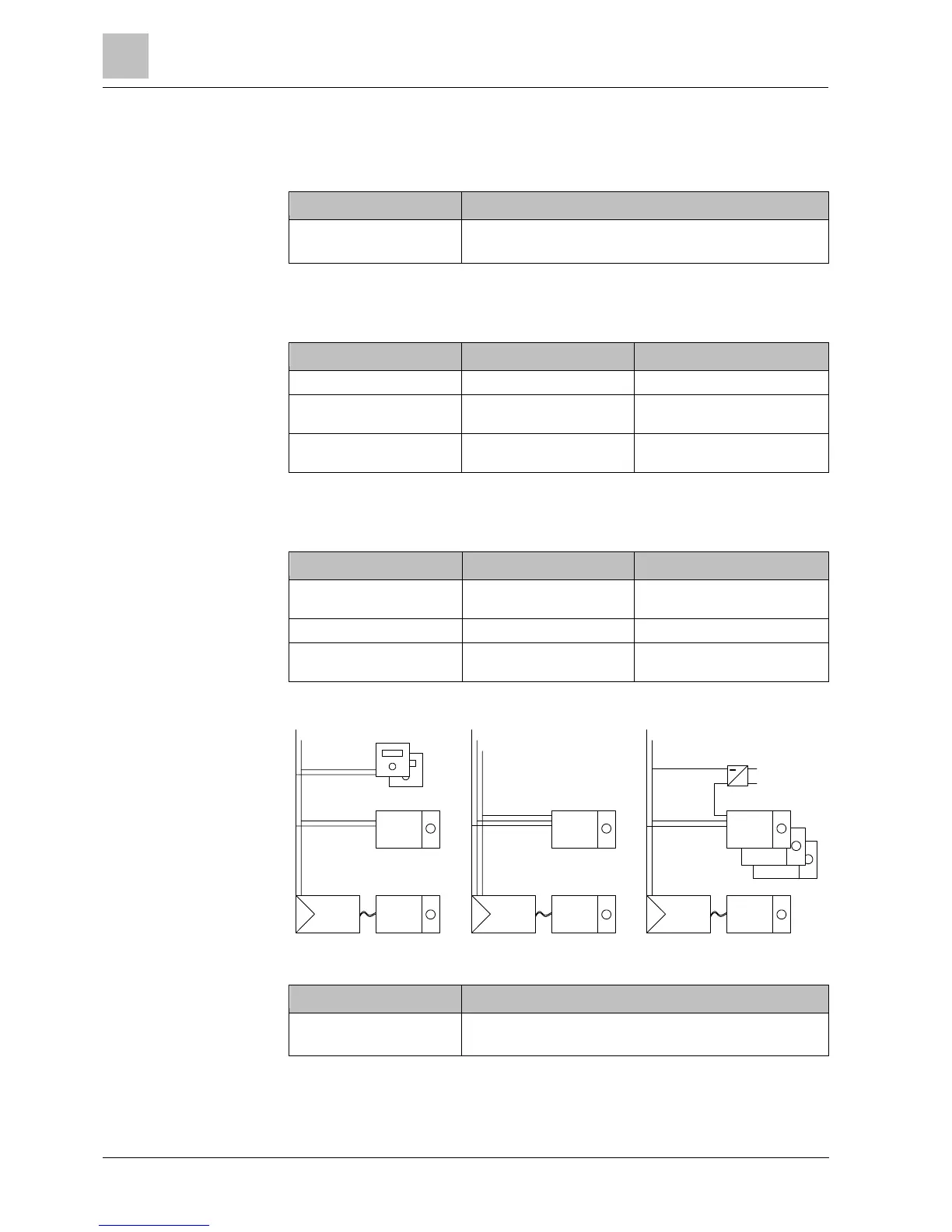

Application Wiring Bill of quantity (maximum)
Renovation 2-wire
1x AVS74, 1x QAA74, 2x
QAA55
New building, simple 3-wire, to controller 1x AVS74, 1x QAA74
New building, extended
3-wire with external power
supply
1x AVS74, 3x QAA74
N1
BSB (CL+)
GND (CL-)
N1
BSB (CL+)
GND (CL+)
N1
BSB (CL+)
GND (CL-)
1x AVS74
1x QAA74
2x QAA55
DC 12 V (G+)
AC 230 V
1x AVS74
1x QAA74
1x AVS74
3x QAA74
~
DC 12 V
Extern al supply Notes
DC +12 V SELV l Power consumption: 36 mA per device
l Power limitation: 1 A
Orientation
Protection against
foreign objects and water
protection
Power supply
Bill of quantity for wiring
variants
Extern al supply
