Siemens Albatros2 Technical Manual

3
Mount and connect
Mount AVS74 operator unit
32
Siemens Graphical User Interface UI400 CE1U2348en
Building Technologies 2014-06-03

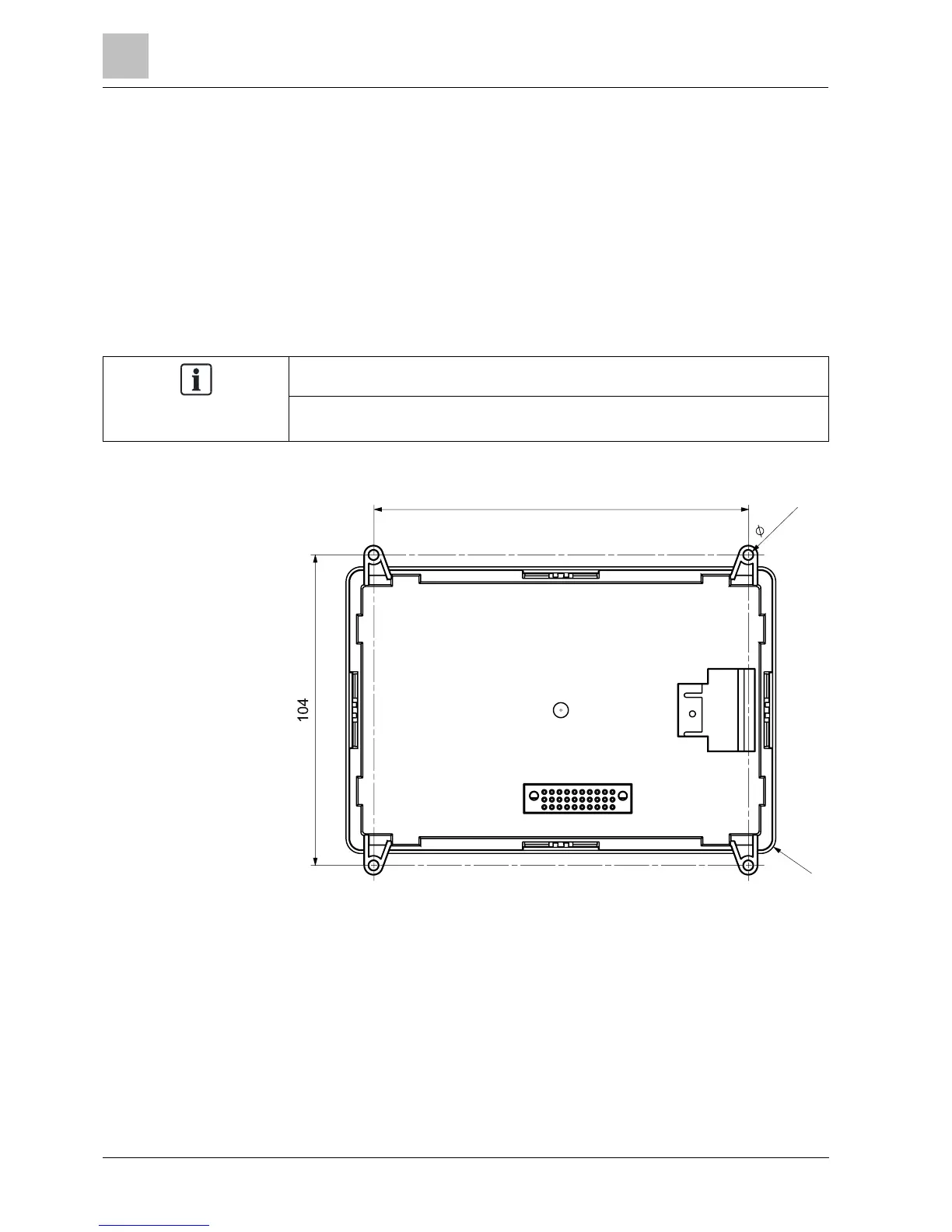

3.4.2 Rear side installation (AVS74.661, AVS74.761)
l The following is required for rear-side mounting of an AVS74.661 or
AVS74.761:
– 4 screws M3. Maximum diameter 3.2 mm
– 4 threaded bolts
AVS74.661 and AVS74.761 for rear mounting have 4 brackets on the housing
corners that are screwed down tightly to the threaded bolts on the source housing.
NOTICE
●
The customer must provide
seals between the AVS74 and producer housing.
●
The seals must seal the unit on the sides.
125.6
3
.
2
(
4
x)
R
5
(
4
x
)
Prerequisites
Attachment principle
Drilling plan
