3.2.2 Surface mount cable routing
Take off the rear side mounting plate
See Flush mount cable routing [➙ 20].
Attach the mounting plate
NOTICE
The top of the unit and a cable duct from above could mutually hinder mounting.
● Use the drilling template in the installation guide supplied with the product,
scale 1:1.
● For surface mounting, maintain at least 10 mm between the top edge of the
mounting plate and the end of the cable duct. The unit top part must be able
to be moved up freely when installing or takin
See Flush mount cable routing [➙ 20].
See Flush mount cable routing [➙ 20].

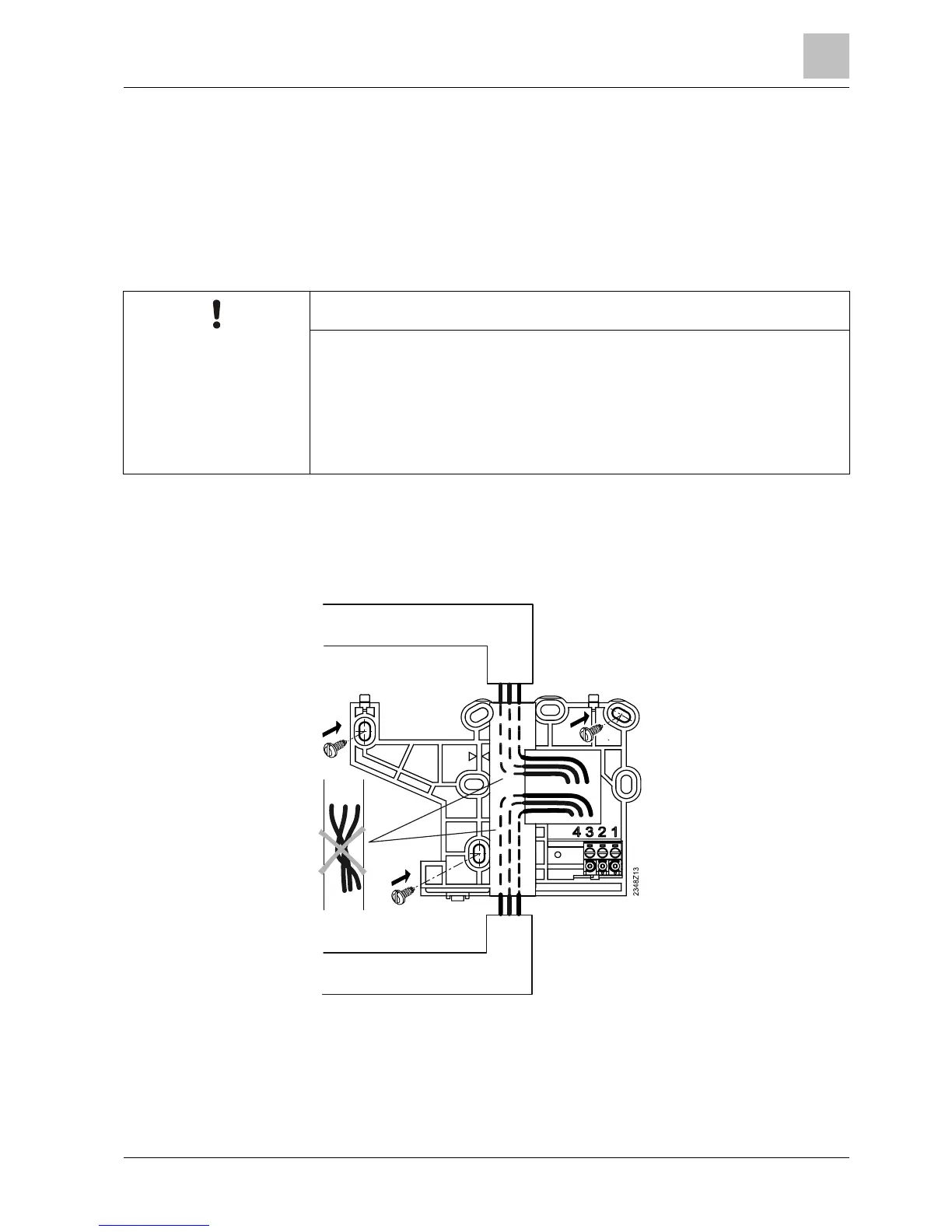

Cabling
*
* Alternative cable path
l The cables can be installed from above or, as an alternative, from below to the
mounting plate.
l Cable cannot cross under the mounting plate due to the small unit height.
Mounting plate
dimensions
Fixed with screws
To Next Page
