Mount and connect
3
Mounting QAA74 room unit
21
Siemens Graphical User Interface UI400 CE1U2348en
Building Technologies 2014-06-03

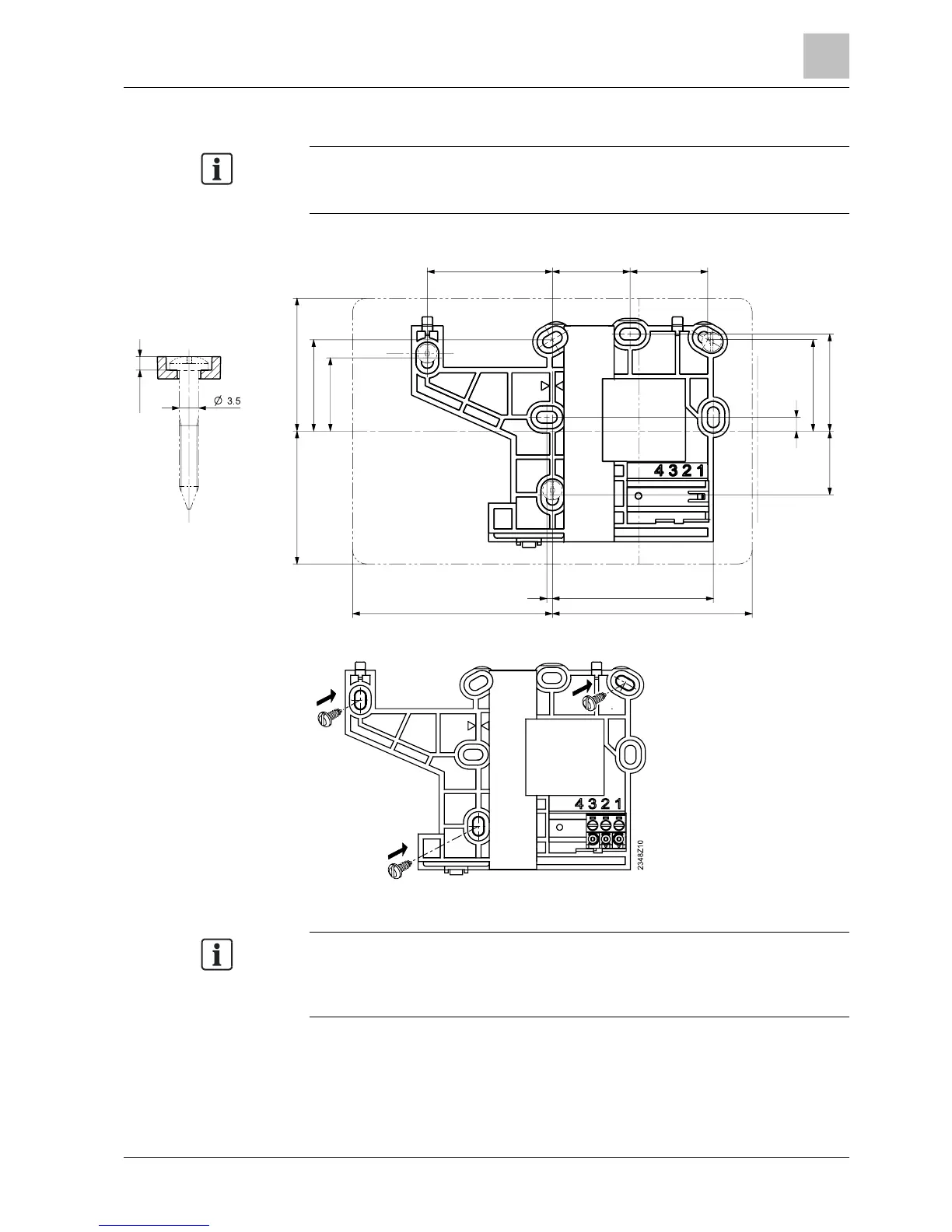

Attach the mounting plate
Mounting tip
.
Use the drilling template in the installation guide supplied with the product, scale
1:1.
max. 2.4
26.4
33
4848
45.1
28 28
3 3
3 5
5
23
72 72
2 58
Stability
.
At a minimum, include the screws highlighted by the arrows. Additional screws
may be used if the connection between the mounting plant and mounting surface
is not sufficient.
Mounting plate
dimensions
Fixed with screws
