Operation
4
37
Siemens Graphical User Interface UI400 CE1U2348en
Building Technologies 2014-06-03

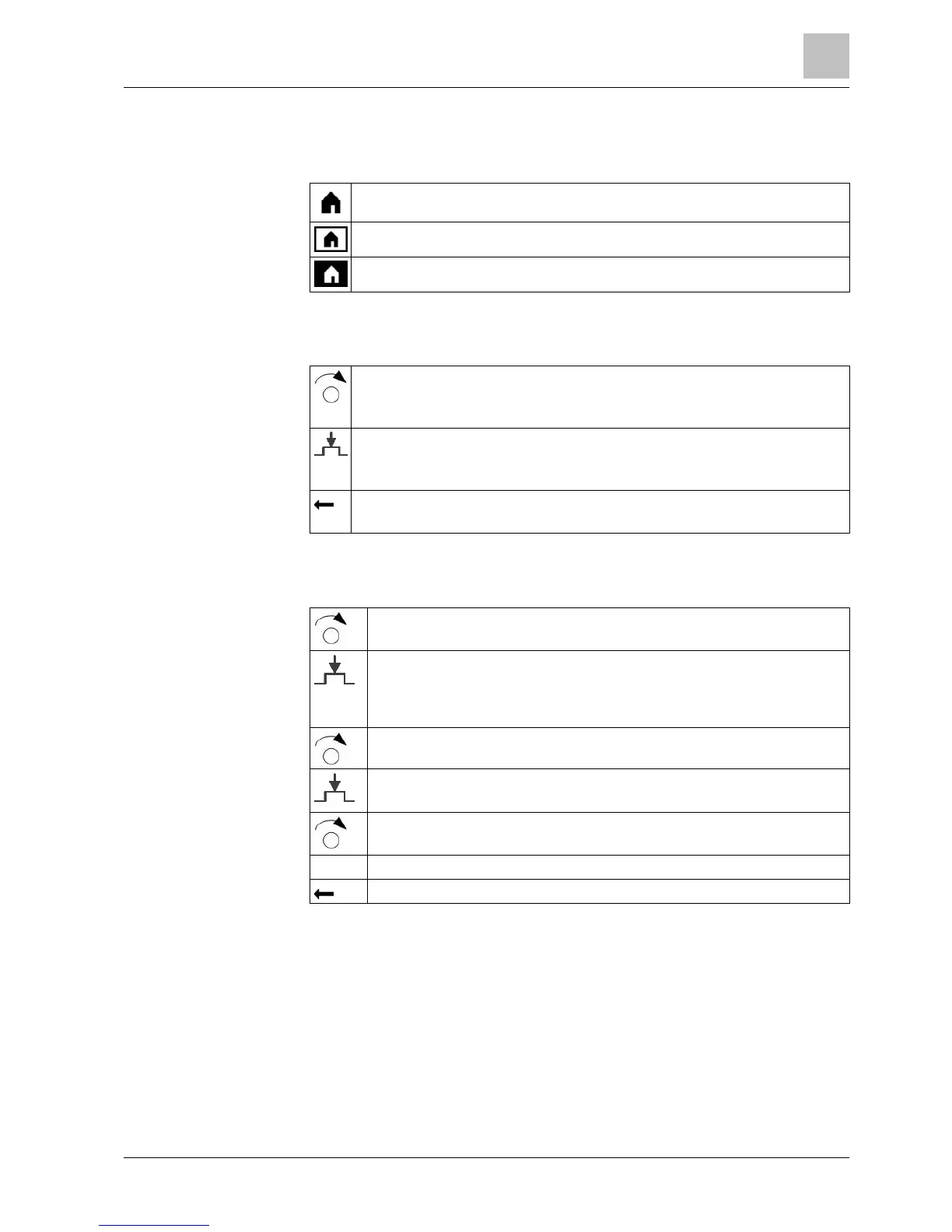

Navigate and set using the control knob
Operating objects may have three display states:
Not selected: The operating object is displayed normally, black on white
background.
Preselected: The operating object is framed.
Selected: The operating object is inverted with white on black background.
To go to the navigation bar:
Turn control knob.
l The preselection is displayed with a frame around the symbol.
l The related topic page is displayed in the work area.
Press control knob.
l The symbol is selected on the navigation bar and is displayed inverted.
l The first adjustable operating object of the work area is preselected.
Go back using the Back arrow on the navigation bar.
l The symbol in the navigation bar is once again preselected.
To set the values in the work area:
Turn control knob.
l The preselection is displayed with a frame around the operating object.
Press control knob.
l The operating object is selected and is displayed inverted.
l The lower level is displayed if the operating object consists of multiple levels
(e.g. time program).
Turn control knob. Set value.
Press control knob. Confirm the set value.
l The set operating object is once again preselected.
Continue navigation
l To other pages, for selected and inverted displayed page titles.
Back "Back" goes a level higher within the work area.
Back arrow to return to navigation bar.
