AOP Operating Instructions – Issue 07/05
6SE6400-5AP00-0BB0
6.3.1 Indexed Parameters
In the Expert level the user can view and edit the individual characteristics of the
two-dimensional array index.

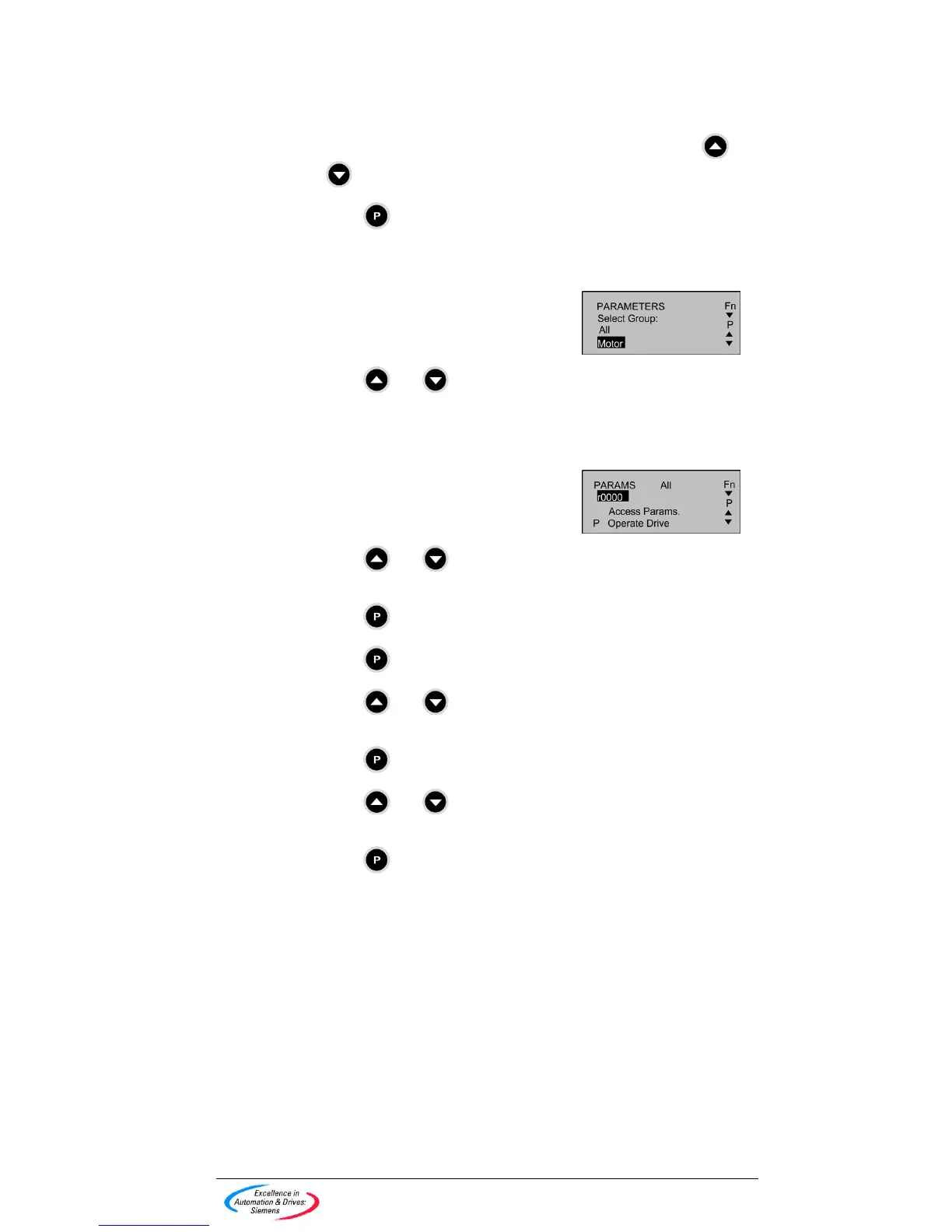

The procedure for editing the indexed parameters is as follows:
1. From the Main Menu scroll through the list of options using the
and
keys until ‘PARAMETERS’ is highlighted.
2. Press the
key to confirm the selected option.
The user is then presented with the parameter screen from which they can
select the required parameter group.
3. Using the
and keys scroll through the groups and select the
desired parameter group.
Once a group is selected the user will be presented with the first parameter in
ascending order of numerical value.
4. Using the
and keys scroll through the parameters until the
required parameter is highlighted.
5. Press the
key to confirm the selected parameter.
6. Press the
key again to access the parameter index.
7. Using the
and keys scroll through the indexes until the
required index is highlighted.
8. Press the
key to access the index value.
9. Using the
and keys scroll through the values until the
required value is highlighted.
10. Press the
key to confirm the change of value and return to the
parameter selection screen.
Once the user has been returned to the parameter selection screen a new
parameter can be selected.
To edit another parameter steps 4 to 10 should be repeated until all the
necessary parameters have been configured.
6.4 AOP Stored Parameter Sets
The AOP contains a battery-backed storage facility capable of storing up to 10
parameter sets.
The standard AOP will be issued with three drive type parameter sets:
¾ MM420
¾ MM440
