9
AOP Operating Instructions – Issue 07/05
6SE6400-5AP00-0BB0
On completion of the upread process the user will be returned to the Main Menu.

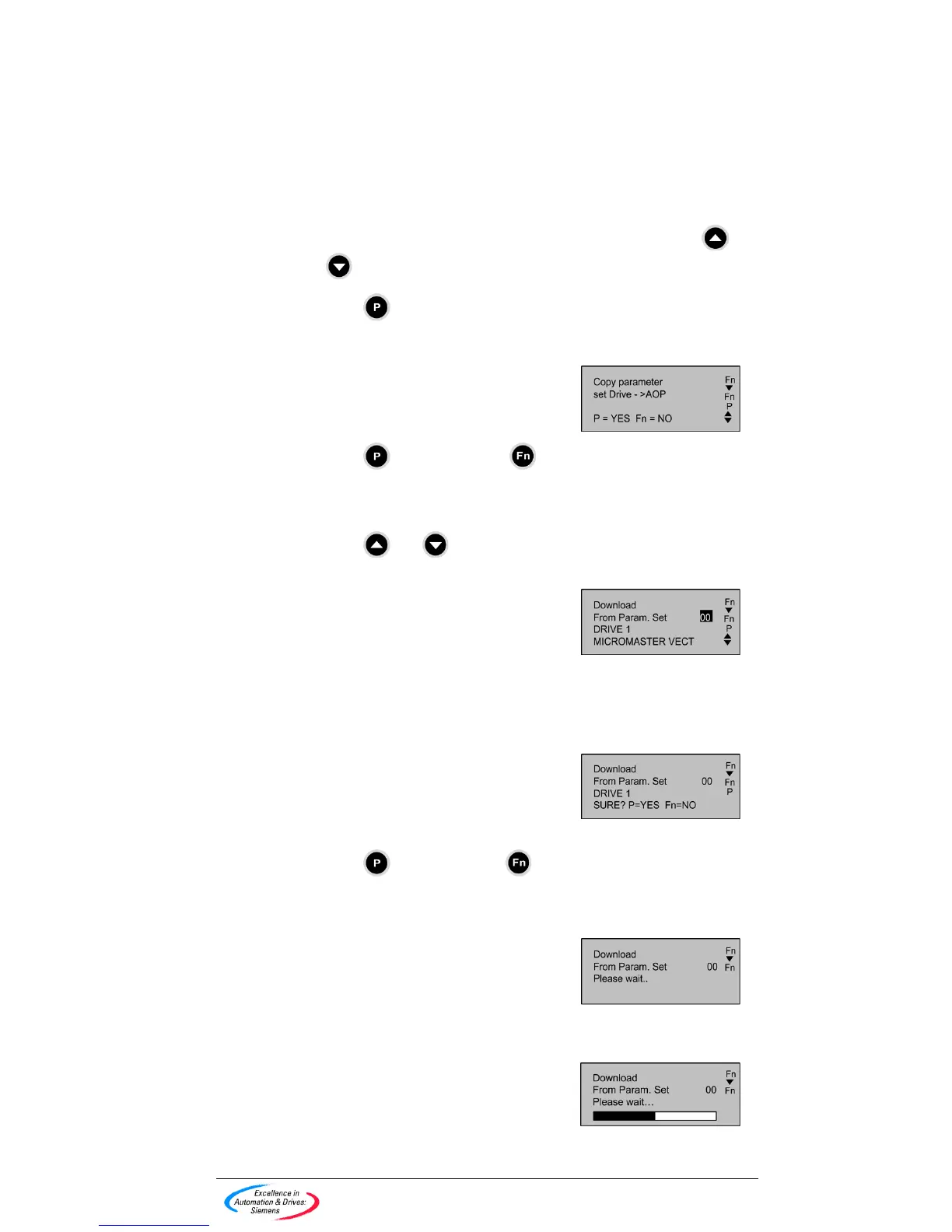

2.4 Parameter Download
The download facility allows a user to write a parameter set to an inverter
connected in local mode and to a single specified inverter on a network of
inverters in master mode.
In master mode a specific inverter must be designated as the recipient inverter.
The download cannot be accomplished across all connected inverters
simultaneously.
1. From the Main Menu scroll through the list of options using the
and
keys until ‘DOWNLOAD’ is highlighted.
2. Press the
key to confirm the selected option.
The user is then presented with the download menu.
3. Press the
key to confirm or to cancel the process.
In Master mode the user would have to select a specific inverter from the
networked inverters.
4. Using the
and keys scroll through the parameter sets of the
AOP, from which the information is to be written.
The user will be presented with a confirmation screen.
5. Press the key to confirm or to cancel the process.
The user will be presented with a ‘wait’ screen while communications with the
specified inverter is established.
Once communications have been successfully established and the download is
proceeding, the user is presented with a further ‘wait’ screen.
On completion of the download process the user will be returned to the Main
Menu.
