Siemens AOP User Manual

4
AOP Operating Instructions – Issue 07/05
6SE6400-5AP00-0BB0

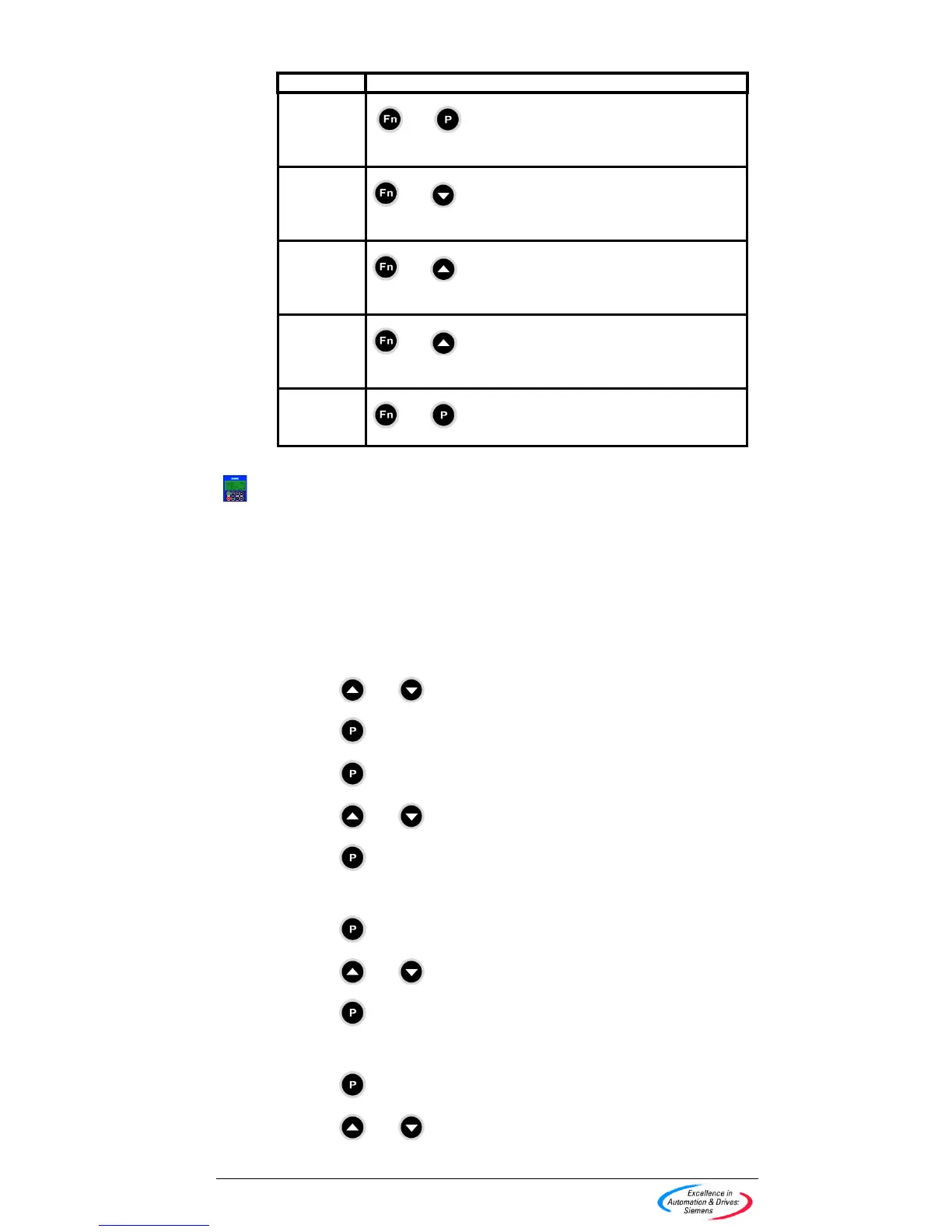

1.1 Special Key Functions
Function Keypad Strokes
Main Menu
and simultaneously, at any time, will display
the main menu.
Help
and simultaneously, at any time will display the
relevant help screens.
Delete
Parameter
Set
and when uploading a parameter set is used to
delete a stored parameter set.
Software
Version
and when viewing a stored parameter set to
see the software version.
Top Level
Menu
and to go to top level menu
Is used throughout the manual to indicate a keypad special function.
2 Applications Examples
2.1 Single drive control using the AOP
To configure a single inverter with the AOP as the control source, the following
procedure should be performed to change the required parameters.
1. Fit the AOP to the inverter.
2. Using
and select the required Language for the display.
3. Press
to confirm the language selection.
4. Press
to bypass the Start Help.
5. Using
and select Parameters.
6. Press
to confirm selection.
7. Select All Parameters.
8. Press
to confirm selection.
9. Using
and select P0010
10. Press
to edit the parameter value.
11. Set P0010 access level to 1
12. Press
to confirm selection.
13. Using
and select P0700.

Siemens AOP Specifications

General

Type	Advanced Operator Panel
Display	TFT LCD
Touch Screen	Yes
Interface	Ethernet, USB, RS232
Protection Class	IP65
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Weight	1.5 kg
