Siemens CPU 315-2 DP Hardware And Installation Guide


S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
A5E00105492-03
1-1
3UHIDFH

3XUSRVHRIWKLVPDQXDO
To get you started, this manual contains the information you will need to plan,
assemble, wire up, address and commission a S7-300.
You will then get to know the tools you can use to diagnose and eliminate errors in
hardware and software.
%DVLFNQRZOHGJHUHTXLUHG
To understand this manual you will require a general knowledge of automation
technology, backed up by a knowledge of the STEP 7 basic software. You may find
it useful to read the Programming with STEP 7 V5.1 manual first.
6FRSHRIWKHPDQXDO

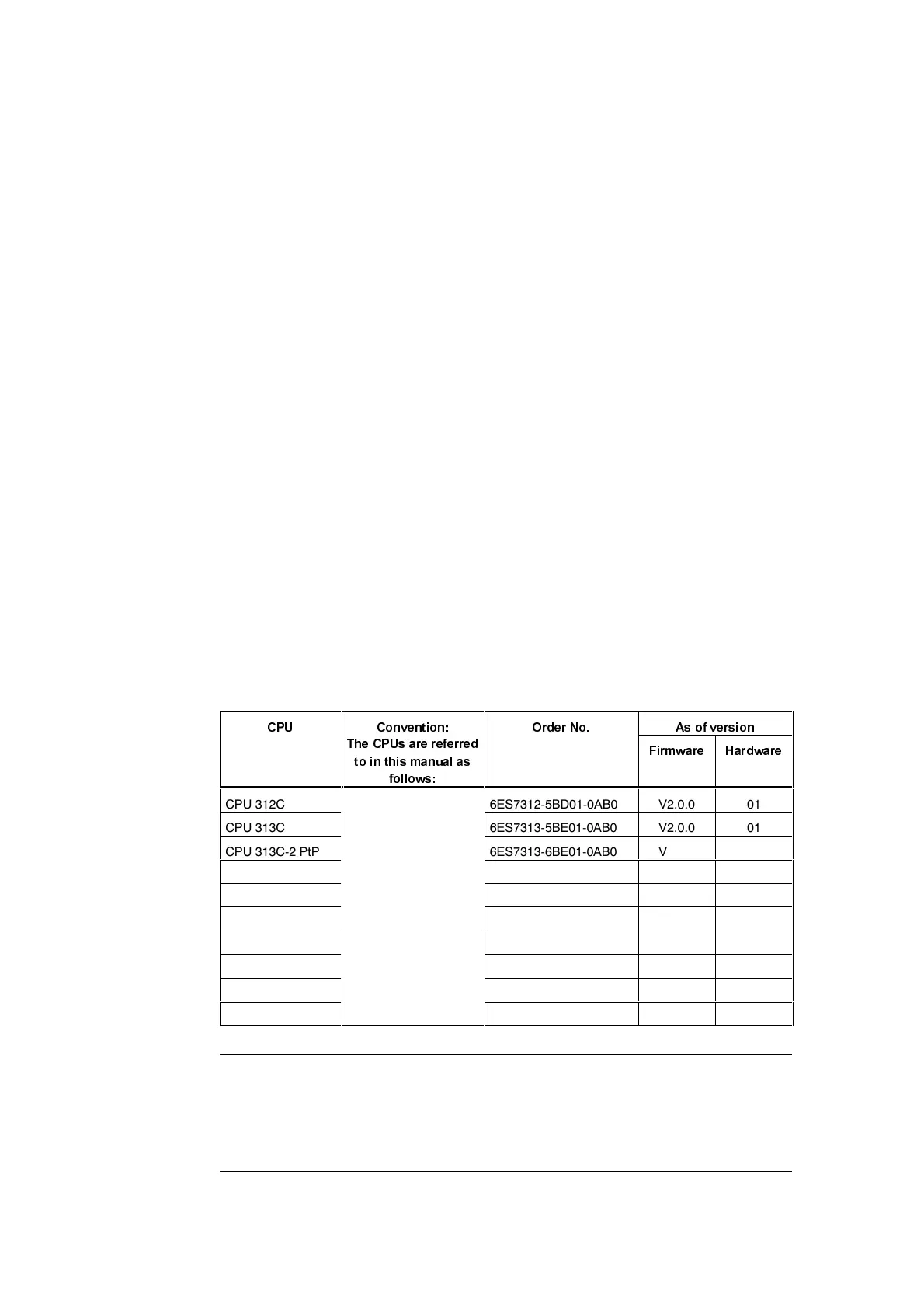

This manual is applicable to the following CPUs and hardware and software
versions:
$VRIYHUVLRQ&38 &RQYHQWLRQ
7KH&38VDUHUHIHUUHG
WRLQWKLVPDQXDODV
IROORZV
2UGHU1R
)LUPZDUH +DUGZDUH
CPU 312C 6ES7312-5BD01-0AB0 V2.0.0 01
CPU 313C 6ES7313-5BE01-0AB0 V2.0.0 01
CPU 313C-2 PtP 6ES7313-6BE01-0AB0 V2.0.0 01
CPU 313C-2 DP 6ES7313-6CE01-0AB0 V2.0.0 01
CPU 314C-2 PtP 6ES7314-6BF01-0AB0 V2.0.0 01
CPU 314C-2 DP
CPU 31xC
6ES7314-6CF01-0AB0 V2.0.0 01
CPU 312 6ES7312-1AD10-0AB0 V2.0.0 01
CPU 314 6ES7314-1AF10-0AB0 V2.0.0 01
CPU 315-2 DP 6ES7315-2AG10-0AB0 V2.0.0 01
CPU 317-2 DP
CPU 31x
6ES7317-2AJ10-0AB0 V2.1.0 01
1RWH
This manual describes all modules available at the time of publication.
We reserve the right to enclose Product Information for new modules or new
versions of modules containing up-to-date information.

Siemens CPU 315-2 DP Specifications

General

Memory	64 KB
Power Supply	24 V DC
Order Number	6ES7 315-2AG10-0AB0
Number of DP Masters	1
Number of DP Slaves	124
Load Memory	64 KB
Number of Timers	256
Number of Counters	256
Data Memory	64 KB
Operating Temperature	0 to 60 °C
Integrated Interfaces	MPI, DP
Digital Outputs	Not integrated
Analog Inputs	Not integrated
Analog Outputs	Not integrated
Programming Languages	LAD, FBD, STL
Digital Inputs	Not integrated
Weight	660 g
