S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
6-4 A5E00105492-03
3UHSDULQJWKHPUDLOIRULQVWDOODWLRQ
1. Cut the 2 m rail to the required length.
2. Mark out:
– four bores for the fixing screws (for dimensions refer to "Dimensions for
fixing holes")
– one hole for the protective conductor bolt.
3. If the length of your rail exceeds 830 mm, you must stabilize it by providing
additional holes for fixing it with more screws.
Mark out these holes along the groove in the middle section of the rail (see the
Figure below). The pitch should be approx. 500 mm.
4. Drill the marked holes to a diameter of 6.5
+0.2
mm for M6 screws.
5. Attach an M6 screw for fixing the ground conductor.
3
4
5
2
1

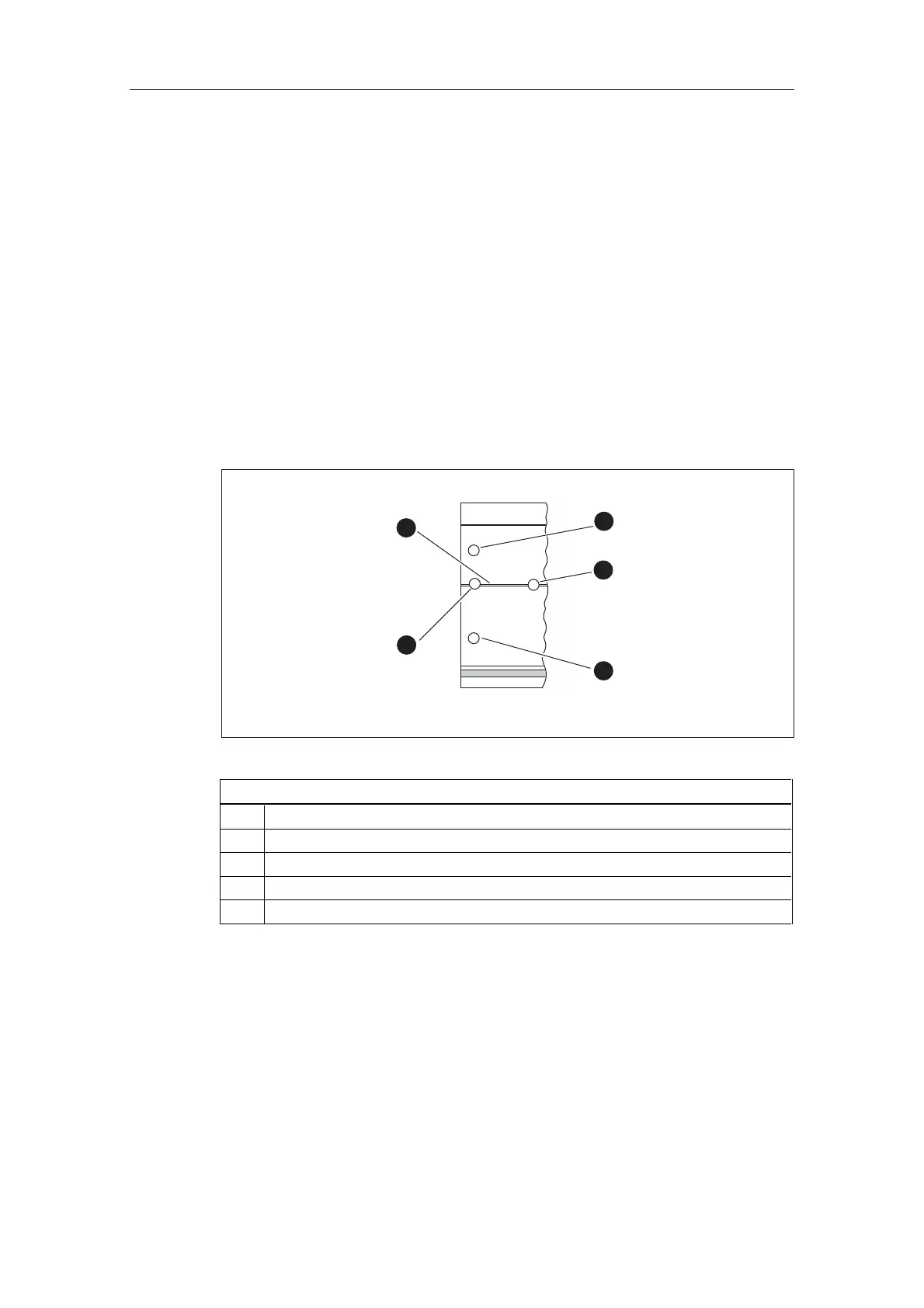

Figure 6-1 Holes for mounting the 2 m rail
.H\WRQXPEHUVLQWKHILJXUH
 Hole for ground conductor screw
 Groove for drilling additional holes for mounting screws
 Hole for mounting screw
 Additional hole for mounting screw
 Hole for mounting screw


Siemens CPU 315-2 DP Specifications

General

Memory	64 KB
Power Supply	24 V DC
Order Number	6ES7 315-2AG10-0AB0
Number of DP Masters	1
Number of DP Slaves	124
Load Memory	64 KB
Number of Timers	256
Number of Counters	256
Data Memory	64 KB
Operating Temperature	0 to 60 °C
Integrated Interfaces	MPI, DP
Digital Outputs	Not integrated
Analog Inputs	Not integrated
Analog Outputs	Not integrated
Programming Languages	LAD, FBD, STL
Digital Inputs	Not integrated
Weight	660 g
