That is, the DP master writes its Data to these intermediate memory address areas
and the CPU reads these data in the user program, and vice versa.
Transfer memory
in the address
area
PROFIBUS
CPU as DP slave
DP master
I/Q
I/Q

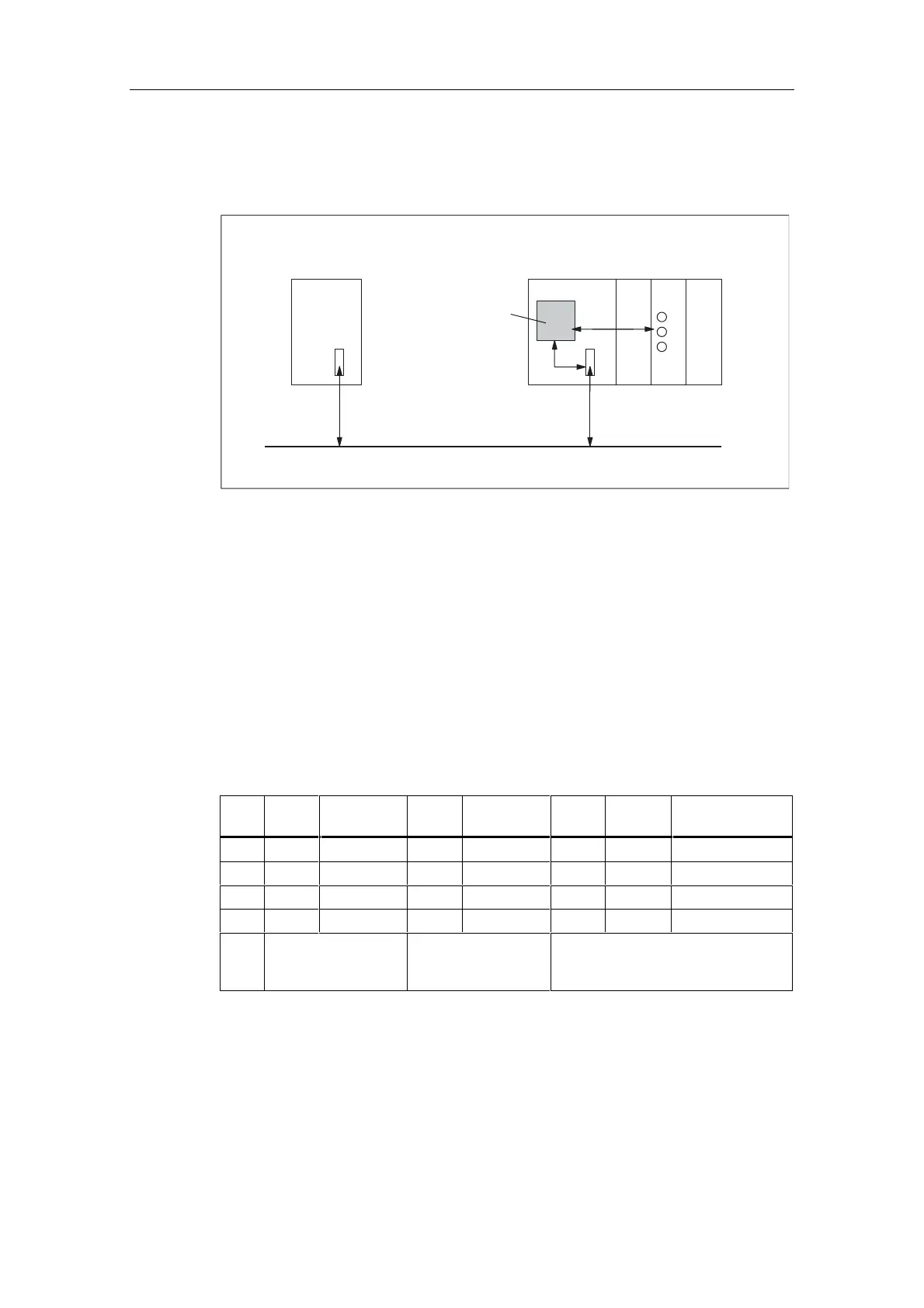

Figure 9-7 Intermediate memory in a DP CPU operating as a DP slave
$GGUHVVDUHDVLQLQWHUPHGLDWHPHPRU\
In 67(3, configure the I/O address areas:
• You can configure up to 32 I/O address areas.
• Maximum length per address area is 32 bytes.
• You can configure a maximum of 244 input bytes and 244 outputs bytes.
The table below shows the principle of address areas. You can also find this figure
in the 67(3 configuration.
Table 9-10 Configuration example for the address areas in intermediate memory
7\SH0DVWHU
DGGUHVV
7\SH 6ODYH
DGGUHVV
/HQJW
K
8QLW &RQVLVWHQF\
1 E 222 A 310 2 Byte Unit
2 A 0 E 13 10 Word Total length
:
32
Address areas in the
DP master CPU
Address areas in the
DP slave CPU
These address area parameters
must be identical for DP master and
DP slave


Siemens CPU 315-2 DP Specifications

General

Memory	64 KB
Power Supply	24 V DC
Order Number	6ES7 315-2AG10-0AB0
Number of DP Masters	1
Number of DP Slaves	124
Load Memory	64 KB
Number of Timers	256
Number of Counters	256
Data Memory	64 KB
Operating Temperature	0 to 60 °C
Integrated Interfaces	MPI, DP
Digital Outputs	Not integrated
Analog Inputs	Not integrated
Analog Outputs	Not integrated
Programming Languages	LAD, FBD, STL
Digital Inputs	Not integrated
Weight	660 g
