Siemens CPU 315-2 DP Hardware And Installation Guide

&RPPLVVLRQLQJ
S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
A5E00105492-03
9-7
&RQQHFWLQJWKH3*WRVHYHUDOQRGHV
6WDWLRQDU\3*
1. Use bus connectors to connect a stationary PG in the MPI subnet to the other
nodes of the MPI subnet.

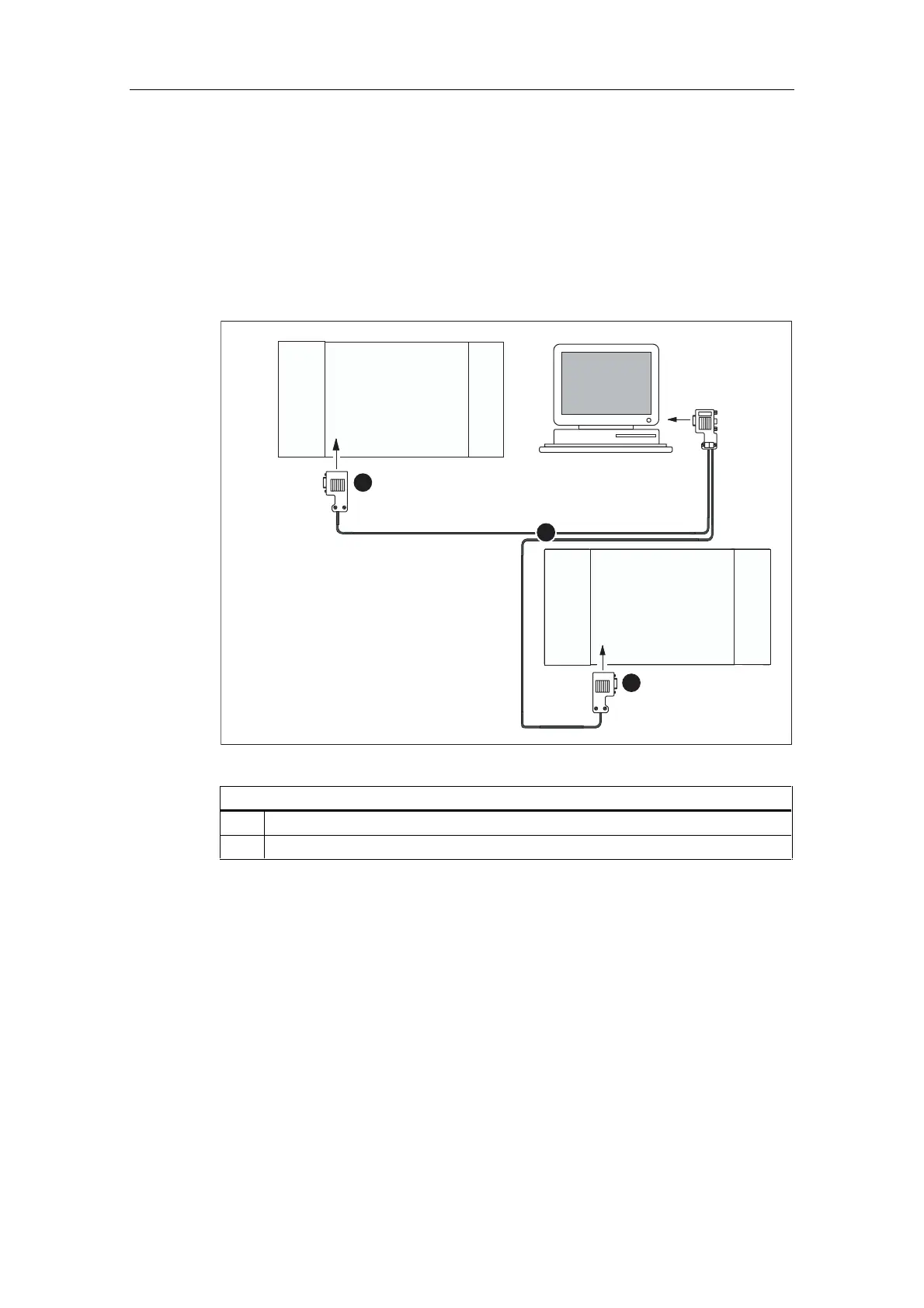

The following picture illustrates two networked S7-300s which are connected to
one another using bus connectors.
PG
SF
BUSF
DC5V
FRCE
RUN
ST OP
SIEM EN S
CPU
PS
2
SM
SM
2
1
CPU
PS
Figure 9-2 Connecting a PG to multiple S7-300 PLCs
7KHGLDJUDPLOOXVWUDWHVXQGHUQXPEHU
 PROFIBUS bus cable
 Connector with inserted terminating resistor


Siemens CPU 315-2 DP Specifications

General

Memory	64 KB
Power Supply	24 V DC
Order Number	6ES7 315-2AG10-0AB0
Number of DP Masters	1
Number of DP Slaves	124
Load Memory	64 KB
Number of Timers	256
Number of Counters	256
Data Memory	64 KB
Operating Temperature	0 to 60 °C
Integrated Interfaces	MPI, DP
Digital Outputs	Not integrated
Analog Inputs	Not integrated
Analog Outputs	Not integrated
Programming Languages	LAD, FBD, STL
Digital Inputs	Not integrated
Weight	660 g
