$SSHQGL[
S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
12-28 A5E00105492-03
&LUFXLWIRUFRLOVRSHUDWHGZLWK'&YROWDJH

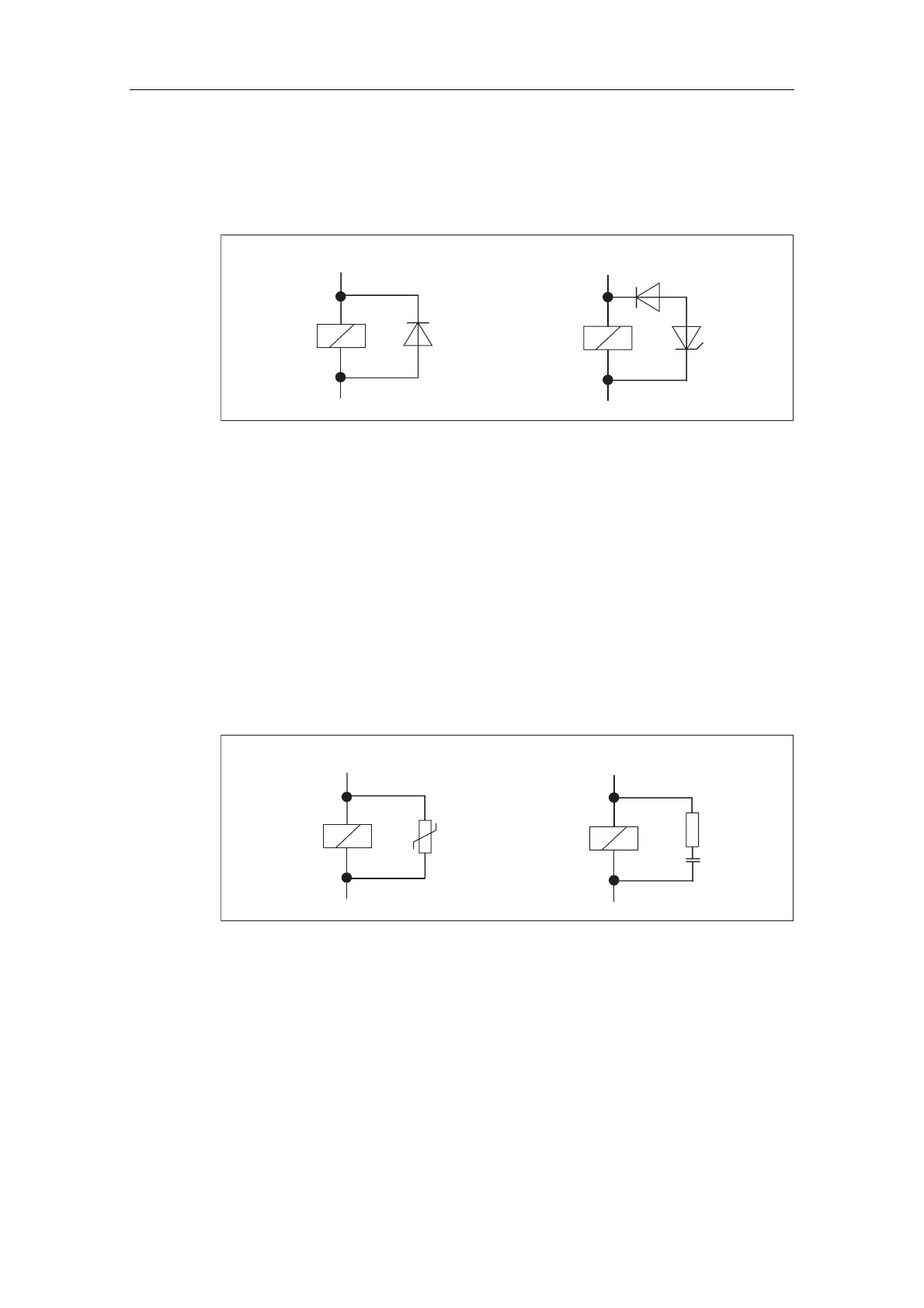

The figure below shows DC-operated coils equipped with diode or Zener diode
circuit.
with diode
with Zener diode
+
-
+
-
Figure 12-9 Circuit for coils operated with DC voltage
Diode/Zener diode circuits have the following characteristics:
Opening surge voltage can be totally avoided.
The Zener diode has a higher switch-off voltage capacity.
High switch-off delay (6 to 9 times higher than without protective circuit).
The Zener diode switches off faster than a diode circuit.
&LUFXLWIRUFRLOVRSHUDWHGZLWK$&YROWDJH
The figure shows coils operated with AC voltage and varistor or RC circuit.
with varistor
with RC element
~
~
~
~
Figure 12-10 Circuit for coils operated with AC voltage
The characteristics of varistor circuits are:
The amplitude of the opening surge is limited rather than attenuated.
The surge rise-ratio remains the same
Short off-delay.
The characteristics of RC circuits are:
Amplitude and steepness of the opening surge are reduced.
Short off-delay.
