S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
10-8 A5E00105492-03
3XWWLQJD1HZ0RGXOHLQWR6HUYLFH
Proceed as follows to put the new module into service:
1. Open the front panel.
2. Reinstall the front connector.
3. Close the front panel.
4. Switch the load voltage back on.
5. Set the CPU to RUN mode again.
CPU
PS
1
2

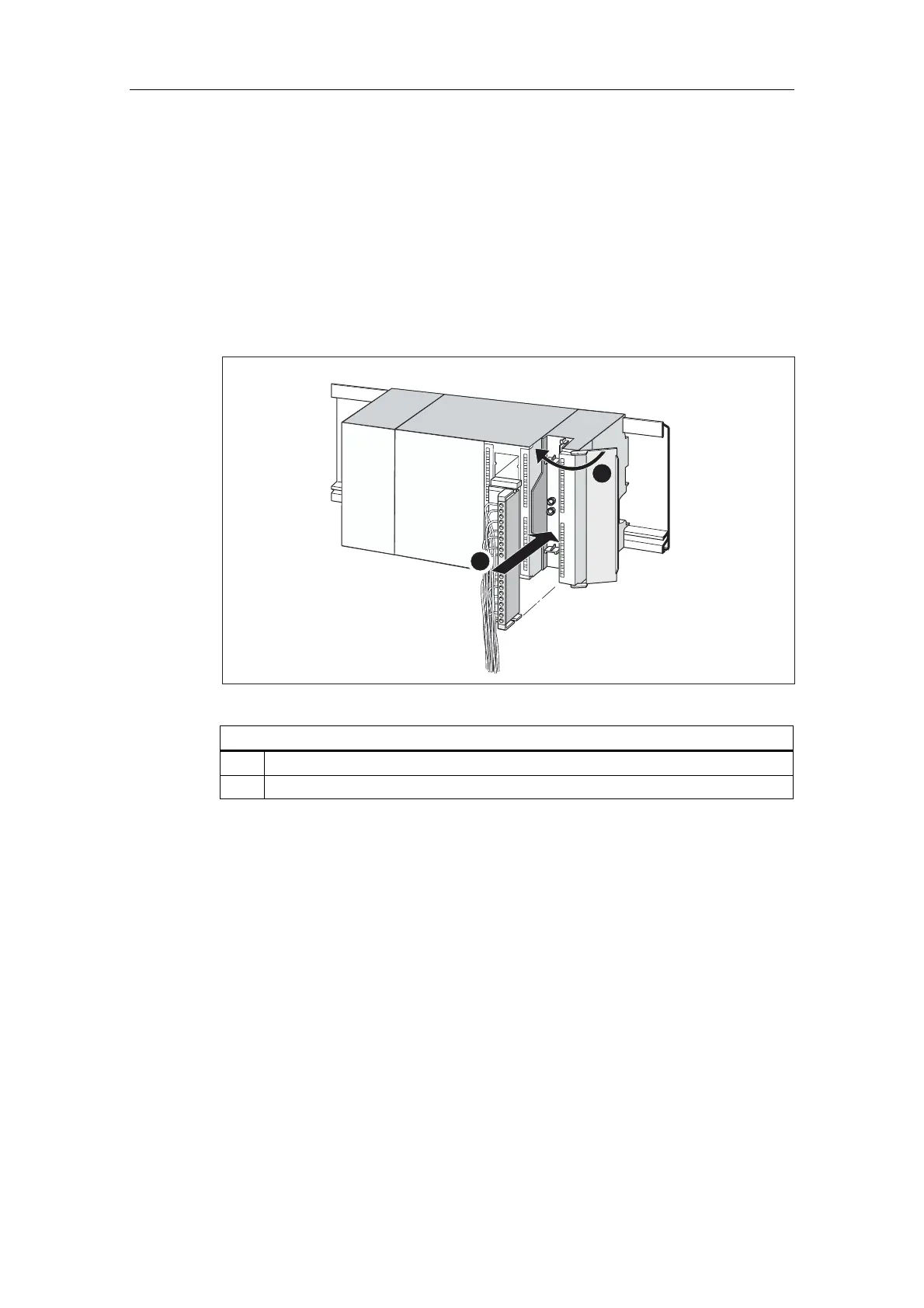

Figure 10-4 Inserting the front connector
7KHILJXUHLOOXVWUDWHVWKHGHVFULEHGVWHSV
 Move the front connector into operating position
 Close front panel.
%HKDYLRURI6DIWHUPRGXOHUHSODFHPHQW
After module replacement the CPU switches to run mode, provided no error has
occurred. If the CPU maintains STOP status, you can view the cause of error with
67(3 (refer to the 67(3 User Manual).

Siemens CPU 315-2 DP Specifications

General

Memory	64 KB
Power Supply	24 V DC
Order Number	6ES7 315-2AG10-0AB0
Number of DP Masters	1
Number of DP Slaves	124
Load Memory	64 KB
Number of Timers	256
Number of Counters	256
Data Memory	64 KB
Operating Temperature	0 to 60 °C
Integrated Interfaces	MPI, DP
Digital Outputs	Not integrated
Analog Inputs	Not integrated
Analog Outputs	Not integrated
Programming Languages	LAD, FBD, STL
Digital Inputs	Not integrated
Weight	660 g
