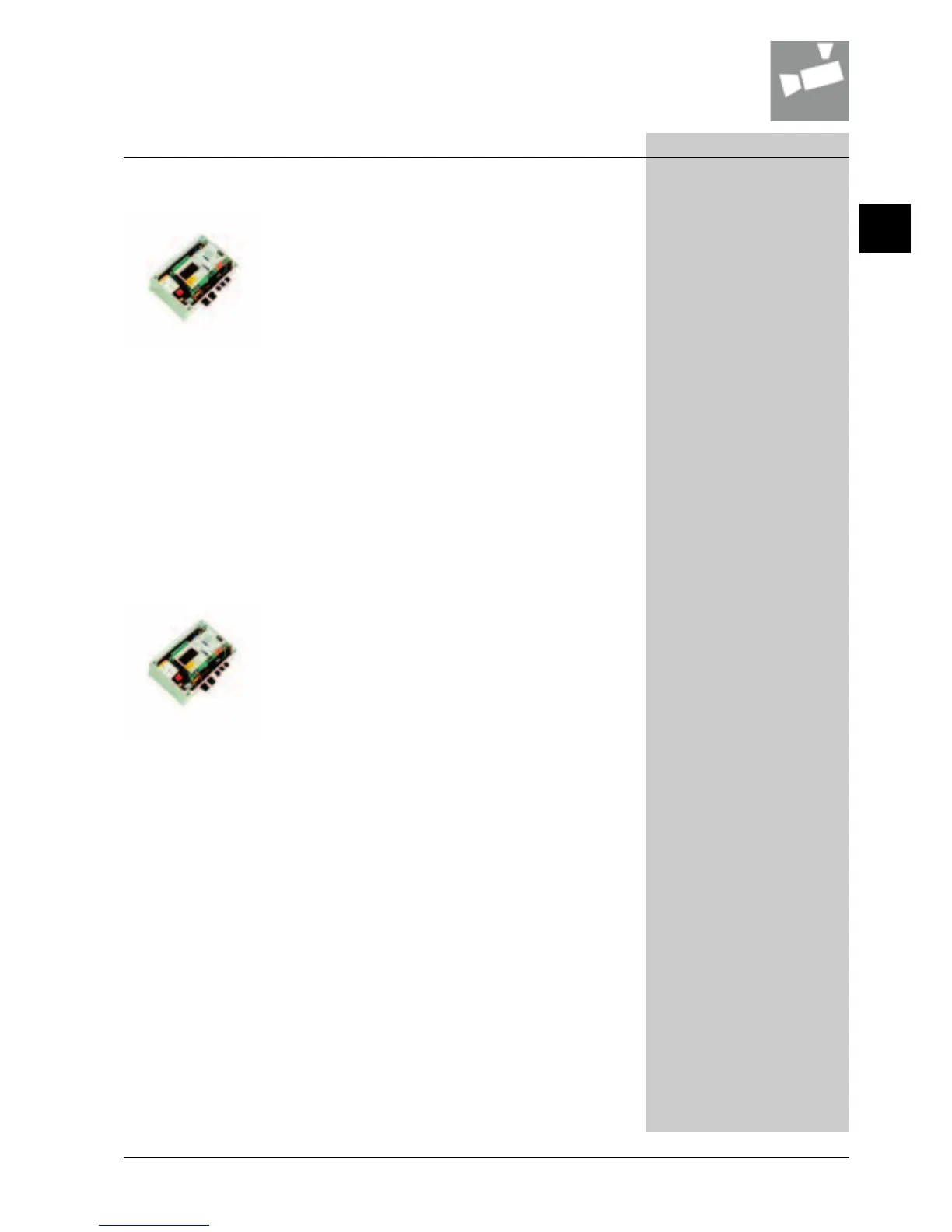

Pan/Tilt and Telemetry Equipment
Pan/Tilt Telemetry Receivers / Drivers
4-11© Siemens Building Technologies Group
4
Type Order No.
RX217D
17 Function Telemetry Receiver
Offers full variable-speed control and faster preset positioning capabil-
ity‚ for DC systems with pan-tilt and zoom lenses. Also gives iris control
and auxiliary functions. Compatible with all telemetry controllers
(Molynx protocol). Shortest route to pre-set position. For ease of
control‚ pan speed slows down for zoom.
230 V AC supply for functions.
Power requirements 230 D 240 V AC‚ 50/60 Hz
Power consumption 20 W
P/T head control voltage 24 V DC
Address codes 256
Baud rate 9600 bps
Control functions 17
Compatible with Controllers / matrix switchers with
Molynx protocol
Operating temperature range -20° C to +40° C
Telemetry formats C Type (Coax) or
D Type (RS485‚ Molynx protocol)
MTBF At 25° C 30‚000 h
Dimensions (W x H x D) 210 x 135 x 280 mm
Weight PCB: 0.50 kg
Box: 1.75 kg
BPZ:80-205
RX217D-24
17 Function Telemetry Receiver
Offers full variable-speed control and faster preset positioning capabil-
ity‚ for DC systems with pan-tilt and zoom lenses. Also gives iris control
and auxiliary functions. Compatible with all telemetry controllers
(Molynx protocol). Shortest route to pre-set position. For ease of
control‚ pan speed slows down for zoom.
24 V AC supply for functions.
Power requirements 230 D 240 V AC‚ 50/60 Hz
Power consumption 20 W
P/T head control voltage 24 V DC
Address codes 256
Baud rate 9600 bps
Control functions 17
Compatible with Controllers / matrix switchers with
Molynx protocol
Operating temperature range -20° C to +40° C
Telemetry formats C Type (Coax) or
D Type (RS485‚ Molynx protocol)
MTBF At 25° C 30‚000 h
Dimensions (W x H x D) 210 x 135 x 280 mm
Weight PCB: 0.50 kg
Box: 1.75 kg
BPZ:80-206
