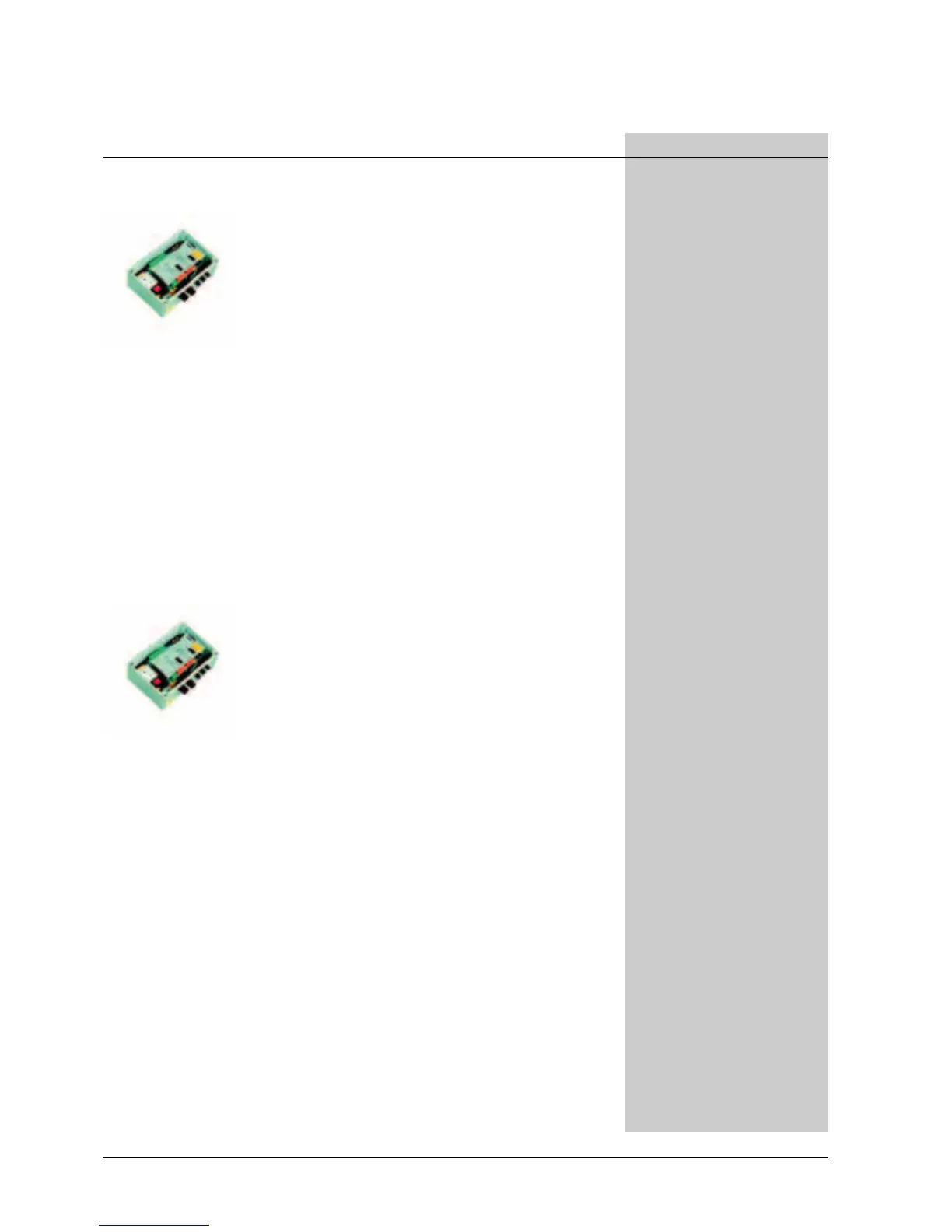

Pan/Tilt and Telemetry Equipment
Pan/Tilt Telemetry Receivers / Drivers
4-10 © Siemens Building Technologies Group
Type Order No.
RX217
17 Function Telemetry Receiver
Offers preset positioning capability‚ for fixed-speed AC systems with
pan‚ tilt and zoom. Also gives iris control and auxiliary functions. Com-
patible with all RX telemetry controllers. Supplied as standard‚ built into
a weatherproof box according to IP66. Can accept C or D telemetry.
Supports up to 99 presets.
Automatic home positioning. UK mains socket.
Power requirements 220 D 230 V AC‚ 50/60 Hz
Power consumption 20 W
P/T head control voltage 230 V AC
Address codes 256
Baud rate 9600 bps
Control functions 17
Compatible with Controllers / matrix switchers with
Molynx protocol
Operating temperature range -20° C to +40° C
Telemetry formats C Type (Coax) or
D Type (RS485‚ Molynx protocol)
MTBF At 25° C 30‚000 h
Dimensions (W x H x D) 164 x 135 x 254 mm
Weight PCB: 0.50 kg
BOX: 1.75 kg
BPZ:80-203
RX217-24
17 Function Telemetry Receiver
Offers preset positioning capability‚ for fixed-speed AC systems with
pan‚ tilt and zoom. Also gives iris control and auxiliary functions. Com-
patible with all RX telemetry controllers. Supplied as standard‚ built into
a weatherproof box according to IP66. Can accept C or D telemetry.
Supports up to 99 presets.
Automatic home positioning. UK mains socket.
Power requirements 220 D 230 V AC‚ 50/60 Hz
Power consumption 20 W
P/T head control voltage 24 V AC
Address codes 256
Baud rate 9600 bps
Control functions 17
Compatible with Controllers / matrix switchers with
Molynx protocol
Operating temperature range -20° C to +40° C
Telemetry formats C Type (Coax) or
D Type (RS485‚ Molynx protocol)
MTBF At 25° C 30‚000 h
Dimensions (W x H x D) 164 x 135 x 254 mm
Weight PCB: 0.50 kg
BOX: 1.75 kg
BPZ:80-204
