Matrix Switching Systems
Accessories Matrix Switching Systems
10-13© Siemens Building Technologies Group
10

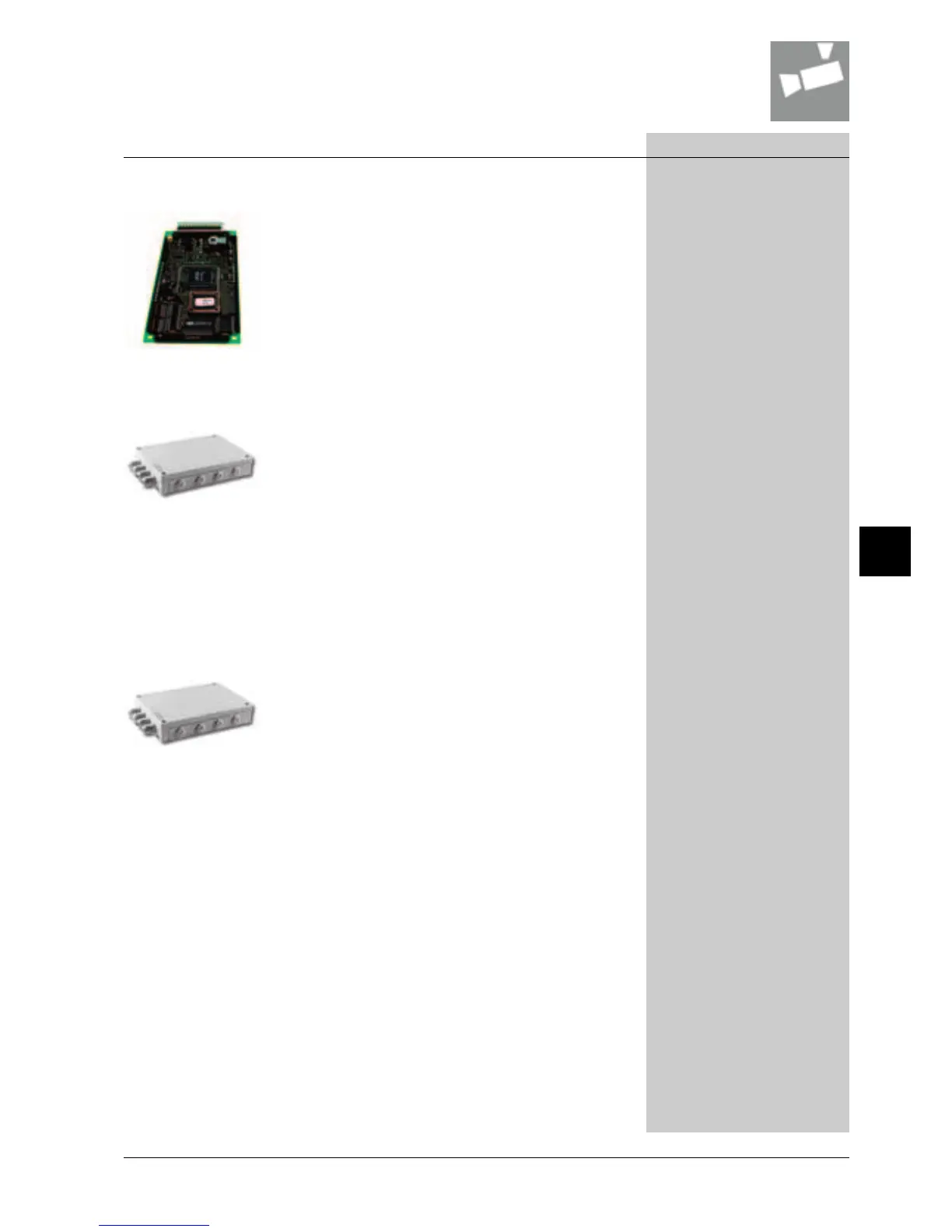

Type Order No.
CAC0101
Protocol Converter TTY-TTL
This converter module converts the SIMATRIX TTY SCU telemetry con-
trol to interface with remote controllable cameras CCxx1225 K500‚
K505 and CCxx1315. It should be mounted in a protective housing.
Baud rate 2400...19K2 selectable
Power consumption 1 W
Power requirements 12 V DC
Dimensions (W x H x D) 112 x 23 x 60 mm
Telemetry formats Input: TTY (SCU protocol)‚ Output:
TTL device specific
Weight 0.20 kg
2GF5505-8BA
CAC0103
Protocol Converter TTY-RS485
This converter module converts the SIMATRIX TTY SCU telemetry con-
trol to interface with remote controllable cameras CCBS1337‚
CCWC1335 and functional domes CCDA1425/CCDA1435‚ Molynx-D
CCDA1410/CCDA1415 and PELCO -P controller. It will directly work with
the CKA4820 and CKA3210.
Baud rate 2400...19K2 selectable
Power consumption 2 W
Power requirements 12 V DC
Dimensions (W x H x D) 130 x 180 x 40 mm
Weight 0.60 kg
Telemetry formats Input: TTY (SCU protocol)‚ Output:
RS485 device specific
S24245-F5046-A1
CAD0485-AA
RS485 Distribution Amplifier
This unit amplifies one RS422/485 input to 8 x RS422/485 outputs for
point to point star configuration. It is for universal usage and works
directly with CAC0103. The output is designed for a maximum load of
10 devices per RS485 line.
Baud rate 2400...19K2 selectable
Inputs 1 x RS422/485;
termination selectable
Outputs 8 x RS422/485;
termination selectable
Power consumption 6 W
Power requirements 12 V DC
Dimensions (W x H x D) 130 x 180 x 40 mm
Weight 0.60 kg
S24245-F5047-A1
SIM648-SW/SIP
SIPORT Interface Kit for SIMATRIX 648
This interface kit enables the interface to the SIPORT access control sys-
tem via RS232 com port 3 of SIMATRIX 648. It includes special firmware
delivered on an EPROM and Software license.
Weight 0.01 kg
2GF2208-8AM
