Siemens CRT

Matrix Switching Systems
Accessories Matrix Switching Systems
10-14 © Siemens Building Technologies Group
Type Order No.
SIM648-SW/DMS
TOPSIS/GMA Interface Kit for SIMATRIX 648 to DMS Interface
This interface kit enables the interface to the TOPSIS/GMA via RS232
com port 3 of SIMATRIX 648. It includes special firmware delivered on
an EPROM and Software license.
Weight 0.05 kg
2GF2208-8AK

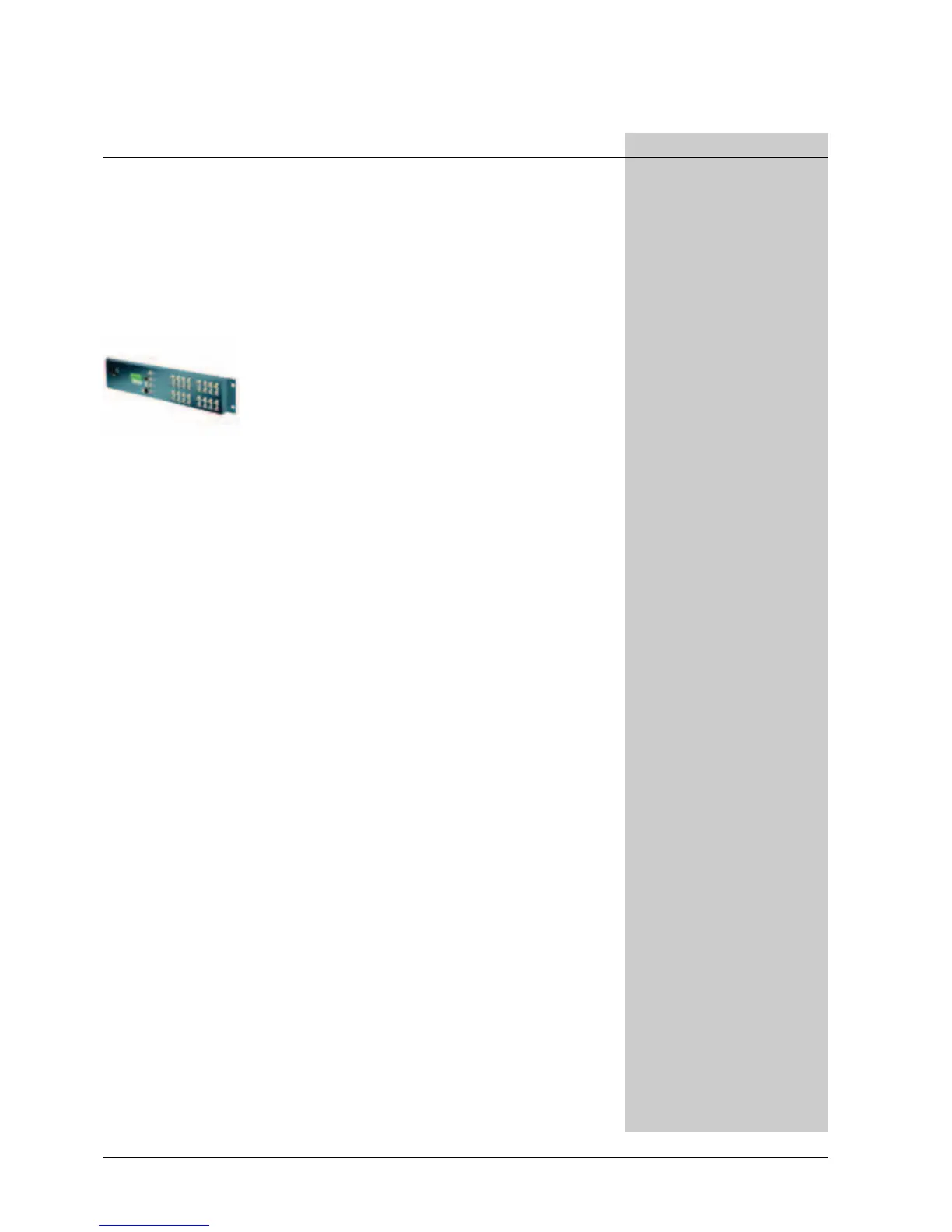

CAC1601
Coax Controller Unit
This converter is a combined coaxial telemetry transmitter‚ telemetry
protocol converter and 16 by 4 video switcher. It allows Siemens
Solaris™ speed domes and telemetry receivers to be controlled over
the coax using up to 2 simultaneous telemetry control sources‚ as
detailed in the system overview below.
- Video Inputs: 16 loop through C-Type channels
- Video Outputs: 4 controllable monitor outputs
(2 with PAL on-screen text)
- Telemetry inputs: 2 RS485/1 dual channel‚ USB Telemetry channel
- Protocol support: Siemens CCDA‚ Siemens SCU‚ Bewator Molynx‚
- Bewator PC-CON‚ Ernitec ERNA‚ Pelco D‚ Pelco P‚ VCL‚ Vicon‚ Videmech
Universal protocol
- Set up: LCD with adjacent control keys
Power consumption 1.25 VA
Power requirements 12 V DC
Telemetry formats 2 x RS485 / 1 dual channel‚ USB
telemetry channels
Weight 2.50 kg
2GF1194-8BM
VC-3K
VC-3K Visilynx 3 Keyboard Cable
The keyboard cable is used to connect a Visilynx keyboard to the
Visilynx video matrix.
Dimensions (W x H x D) Length 1 m
Weight 0.14 kg
BPZ:80-229
VC-3E
VC-3E Visilynx 3i ISU Expansion Cable
The expansion cable is used to connect two 32 x 8 V3i Integrated Sys-
tem Units (ISUs) together to form a 64 x 16 full matrix node. The cable
links video and control signals between the ISUs and is the only cable
required for linking.
Dimensions (W x H x D) Length 1 m
Weight 0.7 kg
BPZ:80-228
PCBV331
Visilynx Alarm Input Panel
The Alarm Panel is designed to fit into a standard 19" rack cabinet. 128
Inputs for interfacing the Visilynx alarm input panel with the V3I Matrix‚
the additional 37-way Alarm cable VC-Alarm‚ that is not part of the
delivery‚ is required.
Inputs Max. 128
Weight 0.7 kg
BPZ:80-221
