Cameras and Domes
Fixed Domes
1-32 © Siemens Building Technologies Group
Type Order No.
CVVS1415..

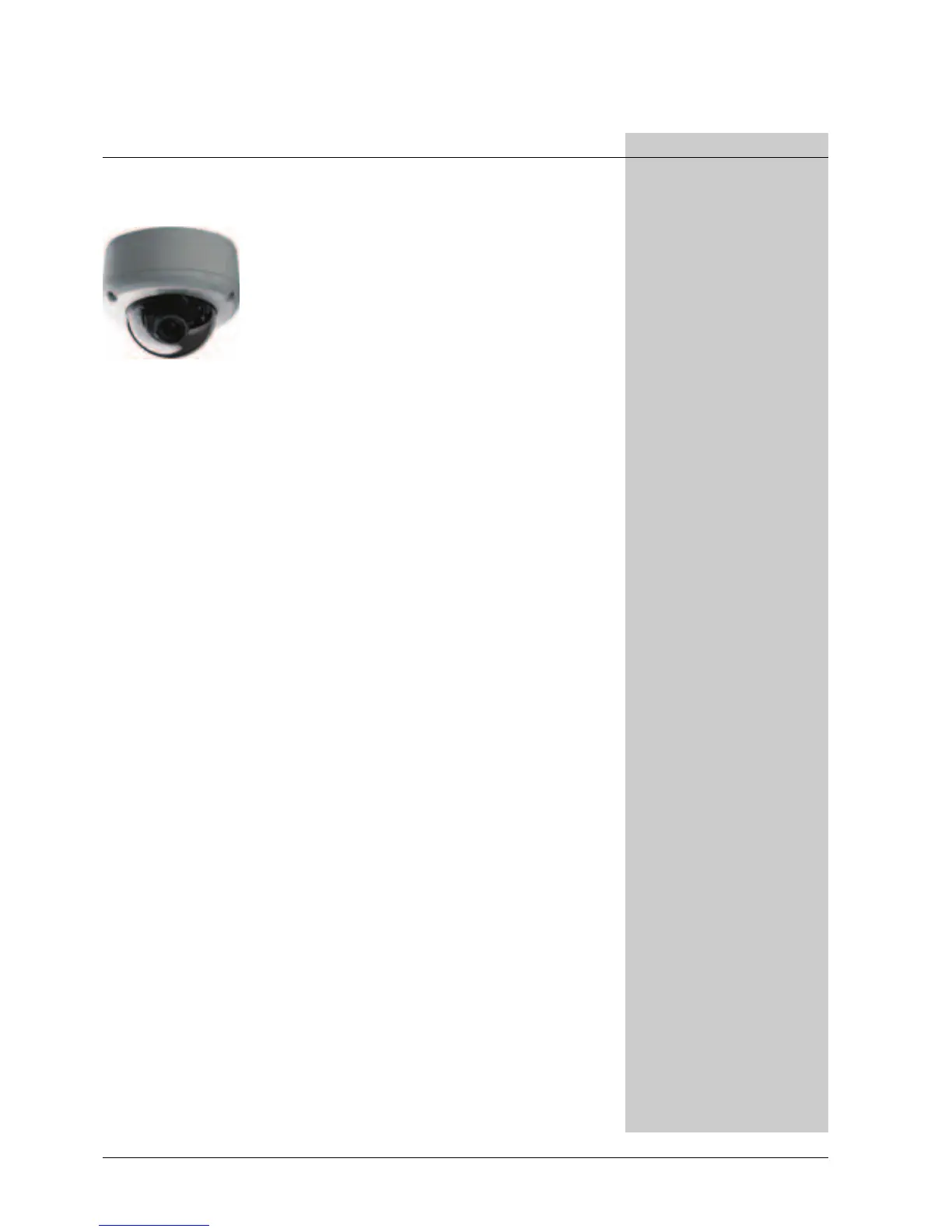

1/4" CCD 3-8 mm Day-Night Vandal Resistant Varifocal Dome
480 TVL‚ 12 V DC / 24 V AC
Attractive‚ vandal resistant‚ high resolution‚ day-night camera including
mechanical IR cut filter with IP66 protection rating‚ for either ceiling or
wall mount‚ complete with 1000 kg impact-resistant‚ polycarbonate
protective bubble. Specifically designed to withstand the type of phys-
ical abuse and random vandalism encountered in public areas‚ both
outdoor‚ and indoor‚ and includes service monitor connection and cable
for local‚ easy setup and external‚ anti-tamper fixing screws.
Horizontal resolution 480 TV lines
Minimum illumination Colour: 0.34 Lux (F1.4 @50IRE)
Mono: 0.15 Lux (F1.4 @50IRE)
Gain control AGC (ON/OFF)
S/N ratio > 50 dB
Lens 2.8 D 5.8 mm‚ DD auto-iris
Electronic shutter (AES) Autom 1/50 to 1/100K s
Horizontal angle of view 35.9 D 74.7
0
Minimum object distance 0.2 m
Maximum relative aperture F1.4 z360
Bubble type Tinted
Backlight compensation (ON/OFF)
Local service monitor connector 2-pin (1 m cable included)
Remote setup 10-pin for PC connection (cable &
software included)
Protection rating IP66
White balance control Auto
Dimensions (W x H) 140 x 112 mm
Power consumption 3.5 W
Power requirements 12 V DC / 24 V AC
Weight 1.70 kg
CVVS1415..
CVVS1415-LP
1/4" CCD 3-8 mm Day-Night Vandal Resistant Varifocal Dome
480 TVL‚ PAL‚ 12 V DC / 24 V AC
As CCDA1435.. for technical details‚ but with the following differences:
Television standard PAL: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally)
Pixels 752 (H) x 582 (V)
2GF1185-8AE
CVVS1415-LN
1/4" CCD 3-8 mm Day-Night Vandal Resistant Varifocal Dome
480 TVL‚ NTSC‚ 12 V DC / 24 V AC
As CCDA1435.. for technical details‚ but with the following differences:
Television standard NTSC: 525 lines‚ 60 fields‚
60 Hz (vertically)‚
15.734 Hz (horizontally)
Pixels 768 (H) x 494 (V)
2GF1185-8AF
