Housings and Mounts
Housing Mounts
3-10 © Siemens Building Technologies Group
Type Order No.

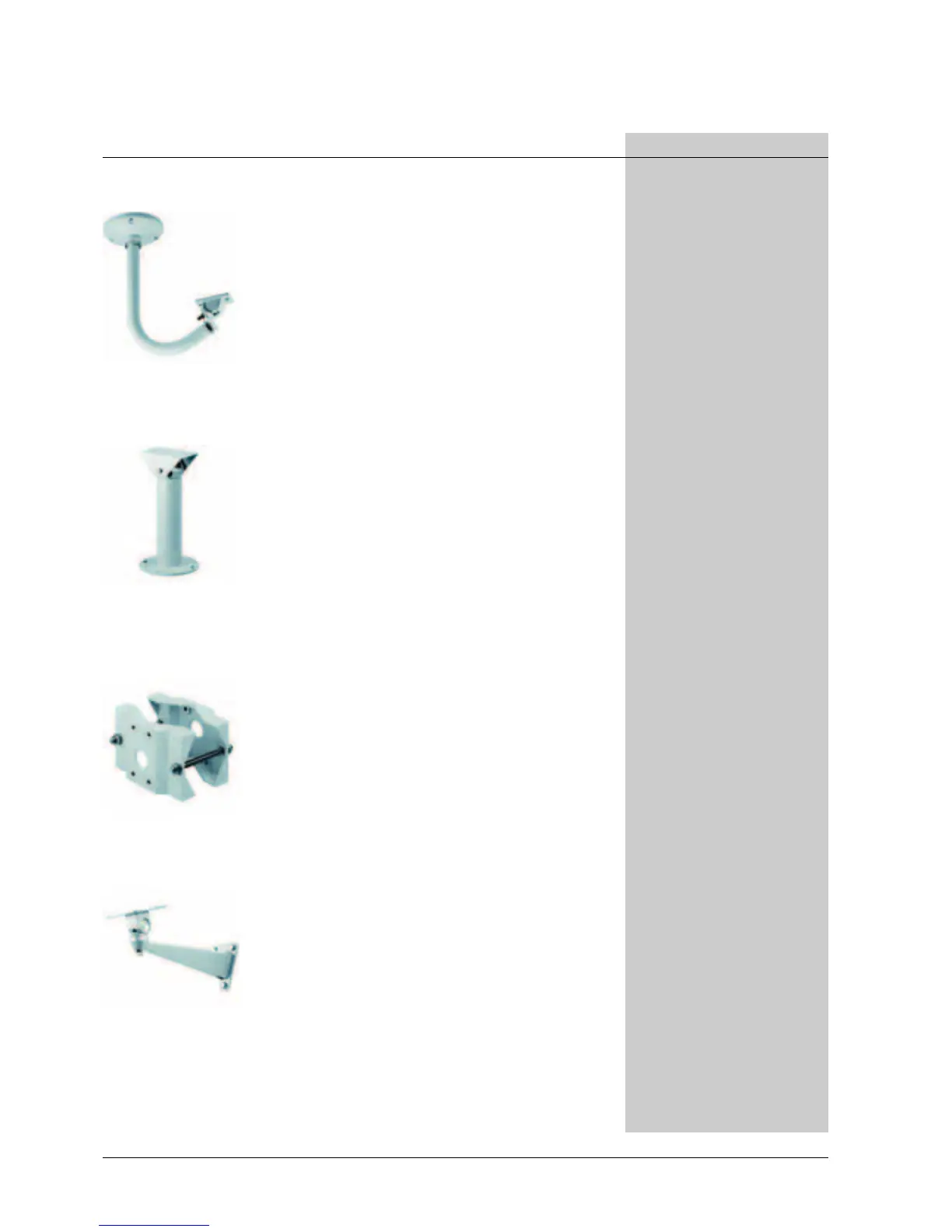

VCH910
Ceiling Mount Bracket for ECH-B/ECH-M
Aluminium ceiling mount with internal cable channel and integral
housing‚ swivel-tilt joint. The housing position is secured with a single
fixture. Three fixing holes on the base-plate enable stable mounting on
flat surfaces. Provided complete with stainless-steel fixtures to attach
the housing to the mount.
Arm length 390 mm
Dimensions (W x H x D) 170 x 255 x 390 mm
Colour Off-white (RAL9002)
Finish Epoxy powder-coat
Load rating 25 kg
Weight 1.78 kg
GBQ:A5383360001
VCH992
Pedestal-Mount ECH-B/ECH-M
Aluminium pedestal for mounting housings on the top of poles or
building parapets. The integrated joint enables the top-mounted hous-
ing to be rotated and tilted. Four fixing holes on the base enable stable
mounting on flat surfaces. Provided complete with stainless-steel fix-
tures to attach the housing to the mount.
Arm length 185 mm
Dimensions (W x H x D) 121 x 121 x 185 mm
Colour Off-white (RAL9002)
Finish Epoxy powder-coat
Load rating 25 kg
Weight 0.63 kg
GBQ:A5383490001
VCH990
Pole-Adapter for VCH900‚ VPT900 Mounts
Aluminium adapter to enable the WMB-S-M-B housing wall-mount and
VPT900 pan-tilt‚ wall-mount to be fitted to round poles and posts. Pro-
vided complete with stainless-steel fixtures to attach the adapter to a
pole and the mount to the adapter.
Dimensions (W x H) 110 x 175 mm
Colour Off-white (RAL9002)
Finish Epoxy powder-coat
Load rating 50 kg
Weight 1.28 kg
GBQ:A5383520001
BH15
BH15 Swivel Bracket 15 kg Rated
Fits onto the HS01 & HS02 Camera Housings. This bracket utilises the
extrusion features of the housing to provide a slide and lock mounting
to the bracket.
Dimensions (W x H x D) 50 x 85 x 280 mm
Load rating Max. Load 15 kg
Finish Die-cast aluminium
Weight 0.70 kg
BPZ:80-105
