Pan/Tilt and Telemetry Equipment
Pan/Tilt Heads
4-6 © Siemens Building Technologies Group

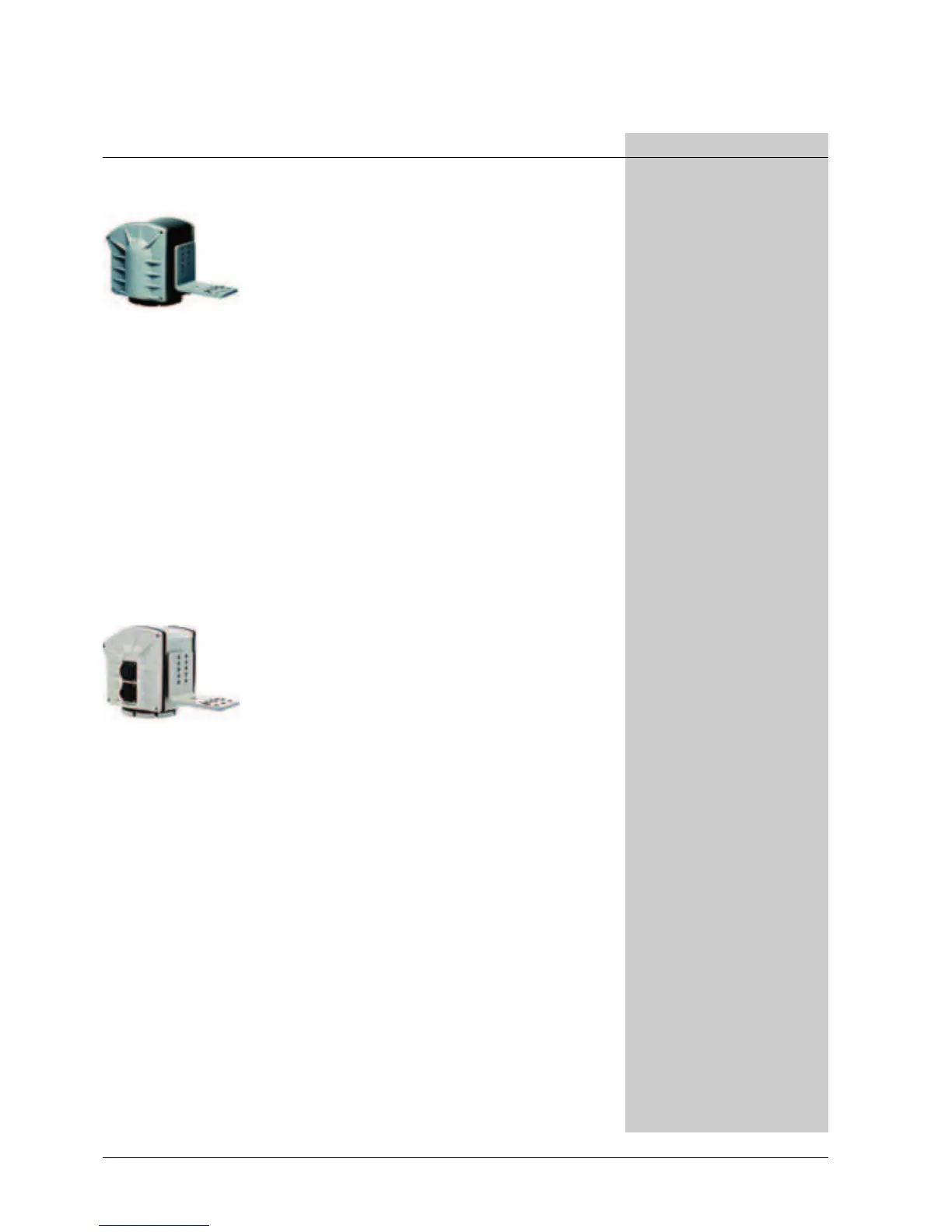

Type Order No.
PT40 Pot
Pan-Tilt‚ Fixed-Speed‚ 20 kg‚ IP66‚ 24 V AC‚ Presets
Pan-tilt to allow the remote control of panning and tilting CCTV camer-
as‚ suitable for mounting both indoors and outdoors. Separate pan and
tilt drive units with low-voltage motors and self-locking gears; adjusta-
ble pan and tilt ranges; aluminium housing with drive shafts made of
high quality stainless steel and with potentiometers for position con-
trol to allow the programming of presets.
Pan travel 360°
Pan speed 6°/s
Tilt travel ± 90°
Tilt speed 3°/s
Travel limits Internally adjustable pan and tilt
limits
Load rating 20 kg
Plug connection 13 pin
Shell construction Extruded aluminium body
Colour RAL7032 (light grey)
Potentiometer on both axis 5 kOhm
Dimensions (W x H x D)
Weight 6.50 kg
Protection rating IP66
Power requirements 24 V AC
Power consumption 2 x 6.8 W
2GF1708-8AS
CDD2410
Pan-Tilt‚ Prog. Speed‚ 12 kg‚ IP66‚ 24 V AC‚ Presets‚ Built in Receiver
Pan-tilt to allow the remote control of panning and tilting CCTV camer-
as with variable speed‚ suitable for mounting both indoors and out-
doors. Separate pan and tilt drive units with low-voltage motors and
self-locking gears; adjustable pan and tilt ranges; aluminium housing
with drive shafts made of high quality stainless steel and with potenti-
ometers for position control to allow the programming of presets. The
pan-tilt head contains a built-in receiver-driver‚ which enables the con-
trol of pan and tilt functions‚ a motorized lens with zoom‚ focus‚ and iris
functions without an additional telemetriey receiver directly by the
SIMATRIX via the TTY interface. In addition‚ the CDD2410 can be pro-
grammed for presets and also features a user-definable sequence capa-
bility.
Pan travel 360°
Pan speed 32°/s
Tilt travel ± 90°
Tilt speed 16°/s
Load rating 12 kg
Plug connection 13 pin / 24 pin
Potentiometer on both axis 5 kOhm
Presets 50 positions
Colour C31 / RAL7032 (light grey)
Weight 6.50 kg
Protection rating IP66
Dimensions (W x H x D)
Power requirements 24 V AC
Power consumption 90 W
2GF1708-8EA
