Pan/Tilt and Telemetry Equipment
Pan/Tilt Telemetry Receivers / Drivers
4-8 © Siemens Building Technologies Group
Type Order No.

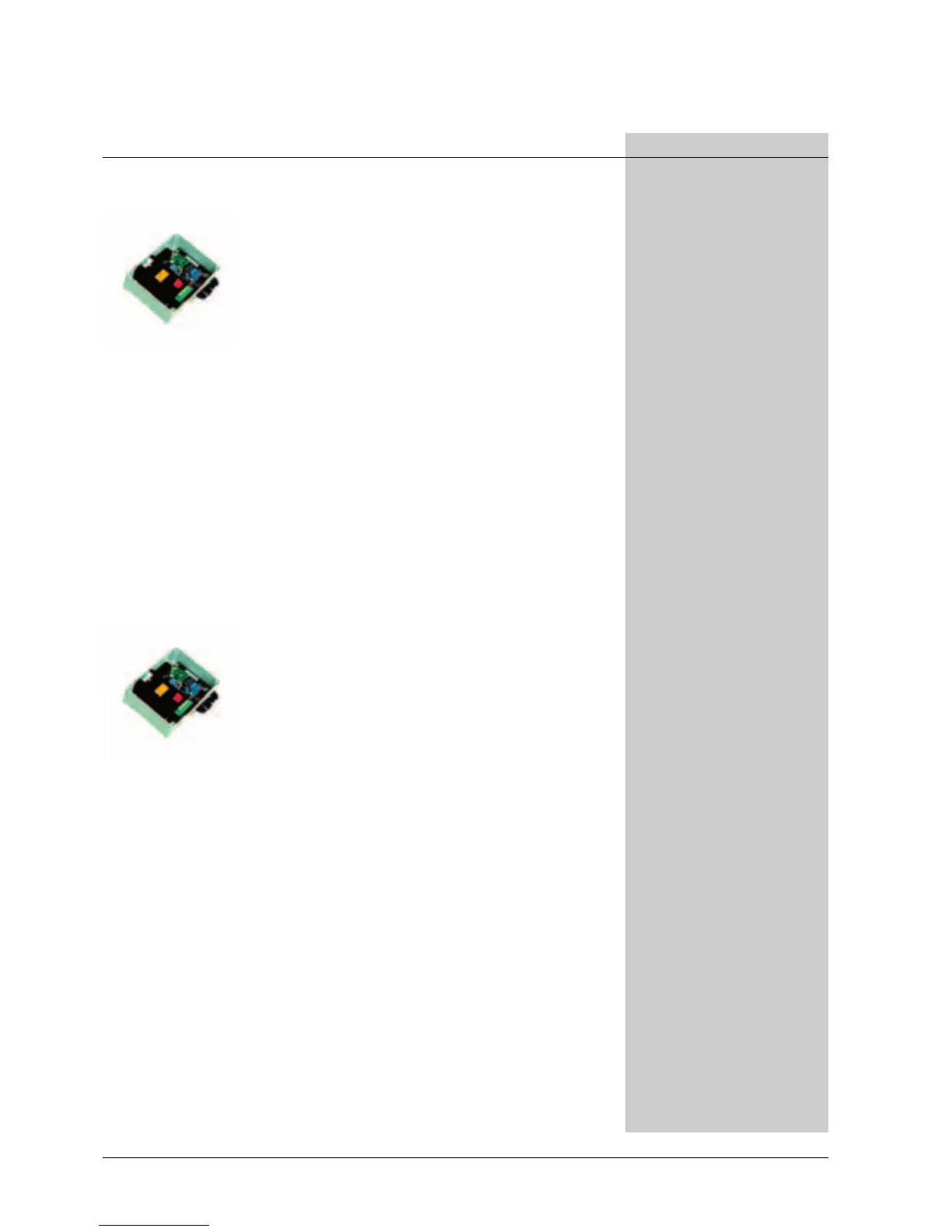

RX210
10 Function Telemetry Receiver
For fixed-speed AC systems with pan‚ tilt and auto-iris zoom lenses.
Compatible with all telemetry controllers using Molynx protocol. Sup-
plied as standard in a weatherproof box according to IP66.
Power requirements 230 D 240 V AC‚ 50/60 Hz
Power consumption 20 W
P/T head control voltage 230 V AC
Address codes 256
Dimensions (W x H x D) 168 x 86 x 220 mm
Telemetry formats C Type (Coax) or
D Type (RS485‚ Molynx protocol)
Baud rate 9600 bps
Cable entry 2 x 20 mm
3 x 13 mm
MTBF At 25° C 30‚000 h
Dimensions (W x H x D) 168 x 86 x 220 mm
Protection rating IP66
Control functions 10
Compatible with Controllers / matrix switchers with
Molynx protocol
Operating temperature range -20° C to +40° C
Weight PCB: 0.80 kg
Box: 1.50 kg
BPZ:80-199
RX210-24
10 Function Telemetry Receiver
For fixed-speed AC systems with pan‚ tilt and auto-iris zoom lenses.
Compatible with all telemetry controllers using Molynx protocol. Sup-
plied as standard in a weatherproof box according to IP66.
Power requirements 230 D 240 V AC‚ 50/60 Hz
Power consumption 20 W
P/T head control voltage 24 V AC
Address codes 256
Dimensions (W x H x D) 102 x 30 x 100 mm
Telemetry formats C Type (Coax) or
D Type (RS485‚ Molynx protocol)
Baud rate 9600 bps
Cable entry 2 x 20 mm
3 x 13 mm
MTBF At 25° C 30‚000 h
Dimensions (W x H x D) 102 x 30 x 100 mm
Protection rating IP66
Control functions 10
Compatible with Controllers / matrix switchers with
Molynx protocol
Operating temperature range -20° C to +40° C
Weight PCB: 0.80 kg
Box: 1.50 kg
BPZ:80-200
