Siemens FCI2016-U1

Periphery board (250p) FCI2016
Detector circuits, circuit driver 1 (circuits 1 and 2)
1
19 |
46
Building Technologies
A6V10315038_f_en_
--
Siemens Industry, Inc.
2016
-
02
-
25

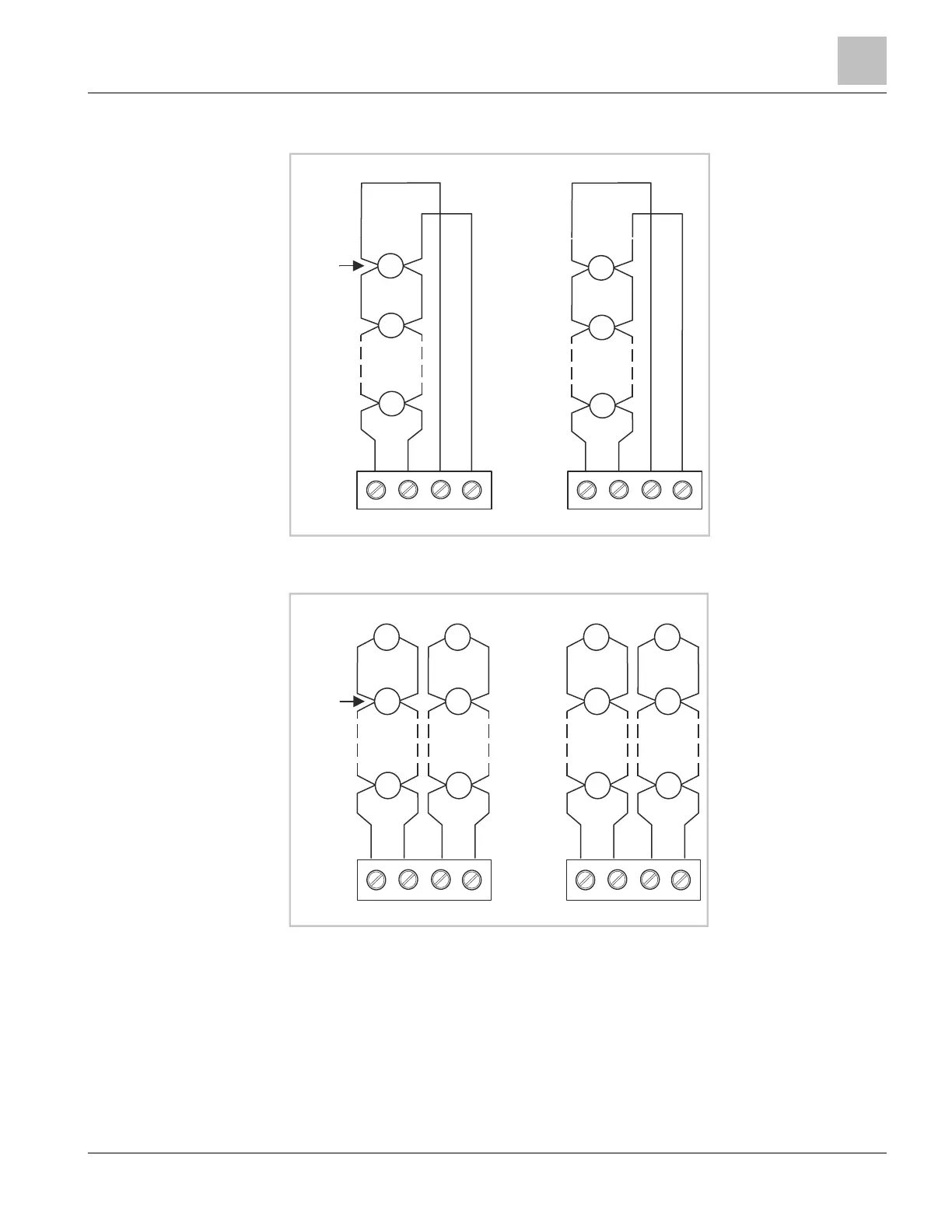

1.9.1 Wiring
Figure 5: Style 6 wiring
Both circuits are supervised and power limited.
Figure 6: Style 4 wiring
Both circuits are supervised and power limited.
13 24
2+
X1402
2-1+ 1-
No EOL required
1324
2+
X1401
2-1+ 1-
No EOL required
Initiating
device
13 24
2+
X1402
2-1+ 1-
No EOL required
1
3
2
4
2+
X1401
2-1+ 1-
No EOL required
Initiating
device
