Structure of the device
2.1 Appearance of the device
LOGO! CIM
16 Operating Manual, 10/2021, A5E51250518-AA

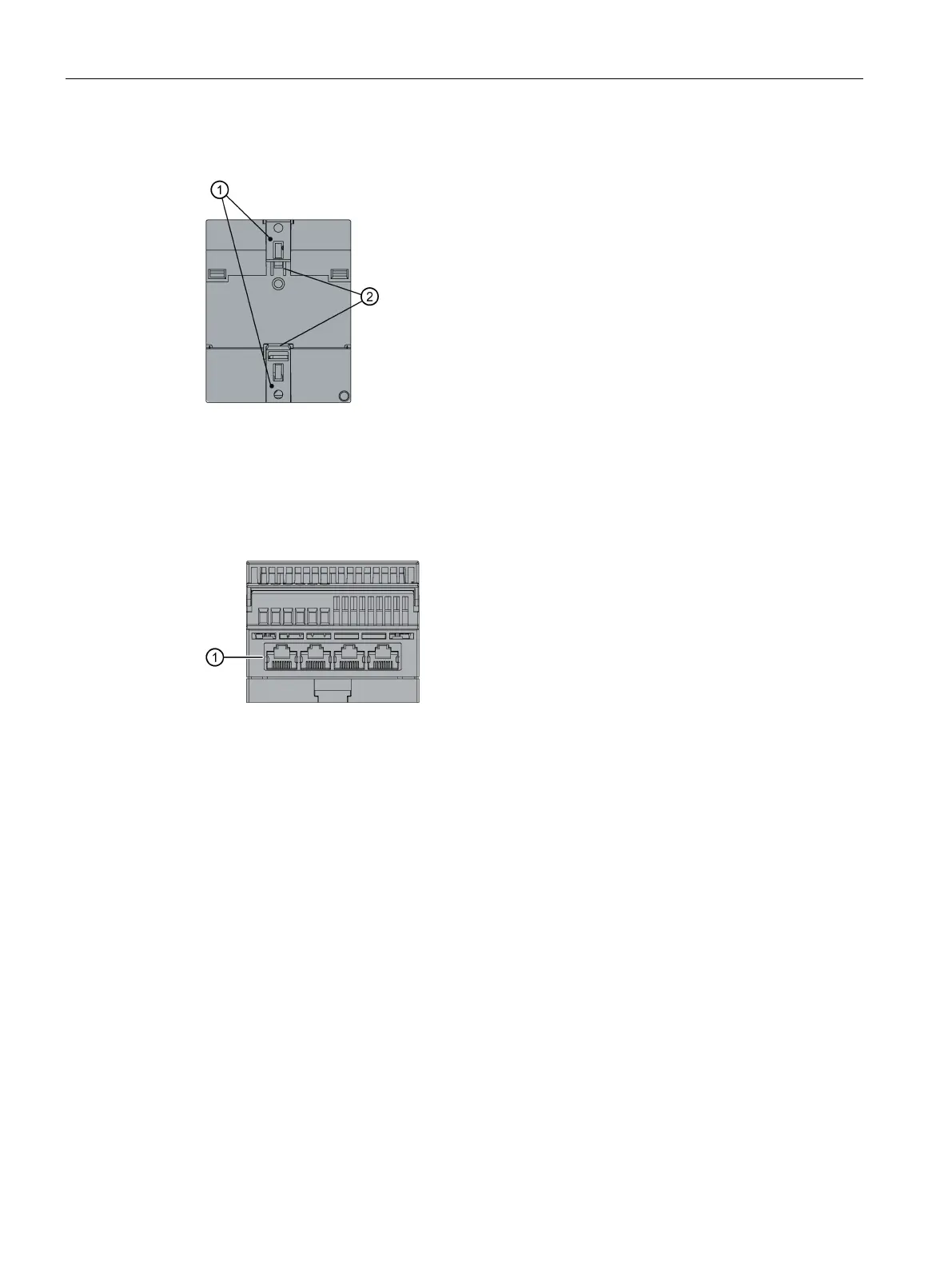

Rear view
①
Mounting slides
②
Mounting interlock for DIN rail
Bottom view
①
4 × RJ45 Ethernet 10/100 Mbps
