Web-based configuration
5.4 Web pages
LOGO! CIM
Operating Manual, 10/2021, A5E51250518-AA
57
Here you configure the properties of the connections that CIM work as S7 server.
• Remote IP: the IP of the client that you want to connect
• Local TSAP: the TASP in LOGO! CIM is 00.01 to FF.FF
Remote TSAP: the TSAP of the client that you want to connect
Here you configure the properties of the connections that CIM work as a S7 client
• Remote IP: the IP of the server that you want to connect
• Remote TSAP: the TSAP of the server that you want to connect
Local TSAP: the TASP in LOGO! CIM is 00.01 to FF.FF
Click to open the "Data transfer table" of the corresponding connection that CIM work as a S7 client.

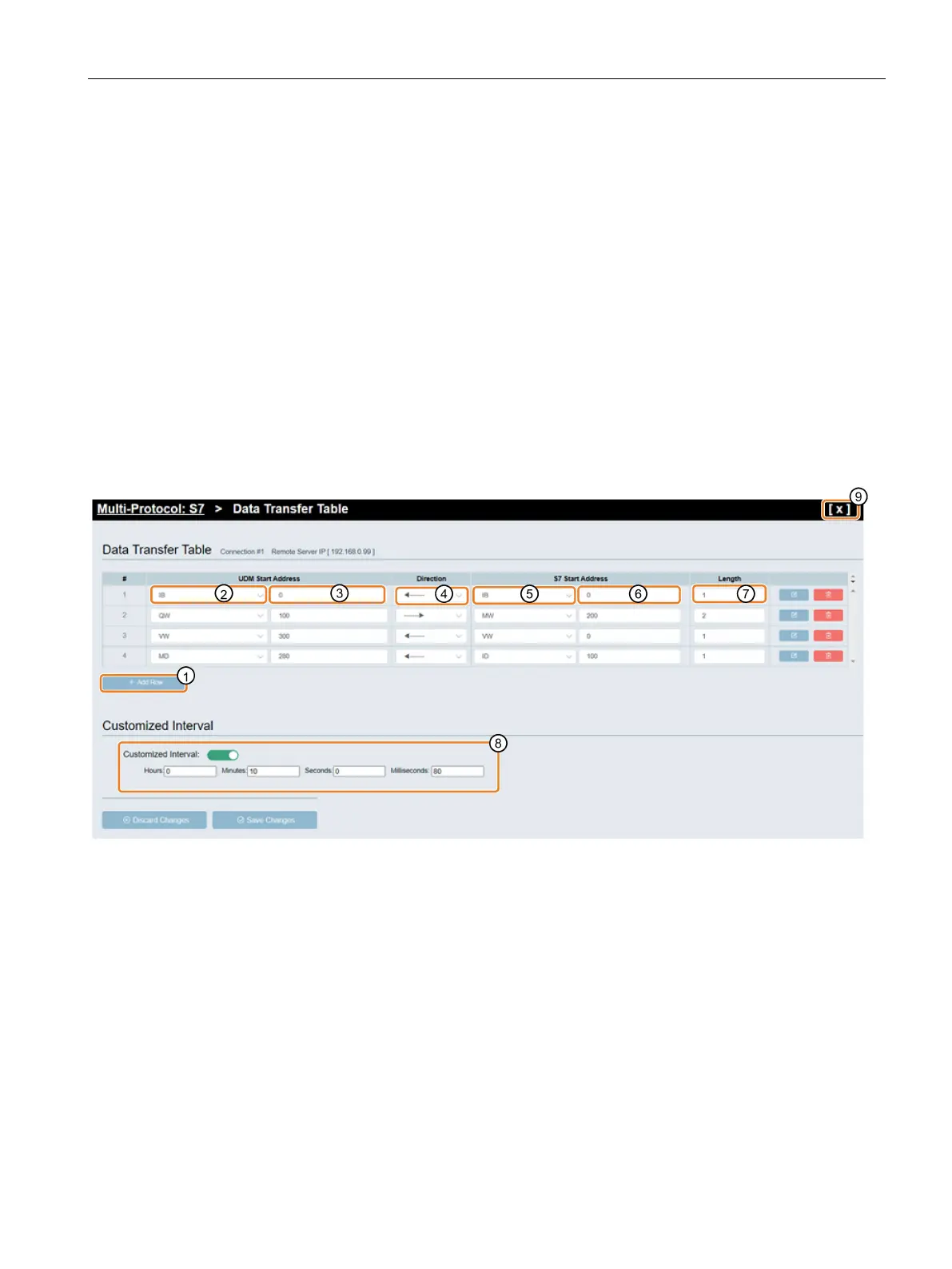

Data transfer table configuration
For the connections that CIM works as S7 client, you need to configure the data transfer
table:
1. Click "Add Row".
2. Click ② to choose the UDM address type of CIM.
3. Input one address in the address field of CIM ③.
4. Click the ④ to choose data transfer directions.
5. Click ⑤ to choose S7 address type of the remote S7 server.
6. Input the S7 Start address of the remote S7 server ⑥.
7. Input the length of the Data ⑦ need to be transferred.
8. To set the time interval that CIM synchronizes the data with the server, enable "Customized
Interval" and input the specified time interval ⑧.
The default minimum transmit interval is 80 milli-second.
