Siemens Milltronics Pointek ULS200 - Output Function; Function Display

Page EN-14 Pointek ULS200 – QUICK START MANUAL A5E32268616
mmmmm
English

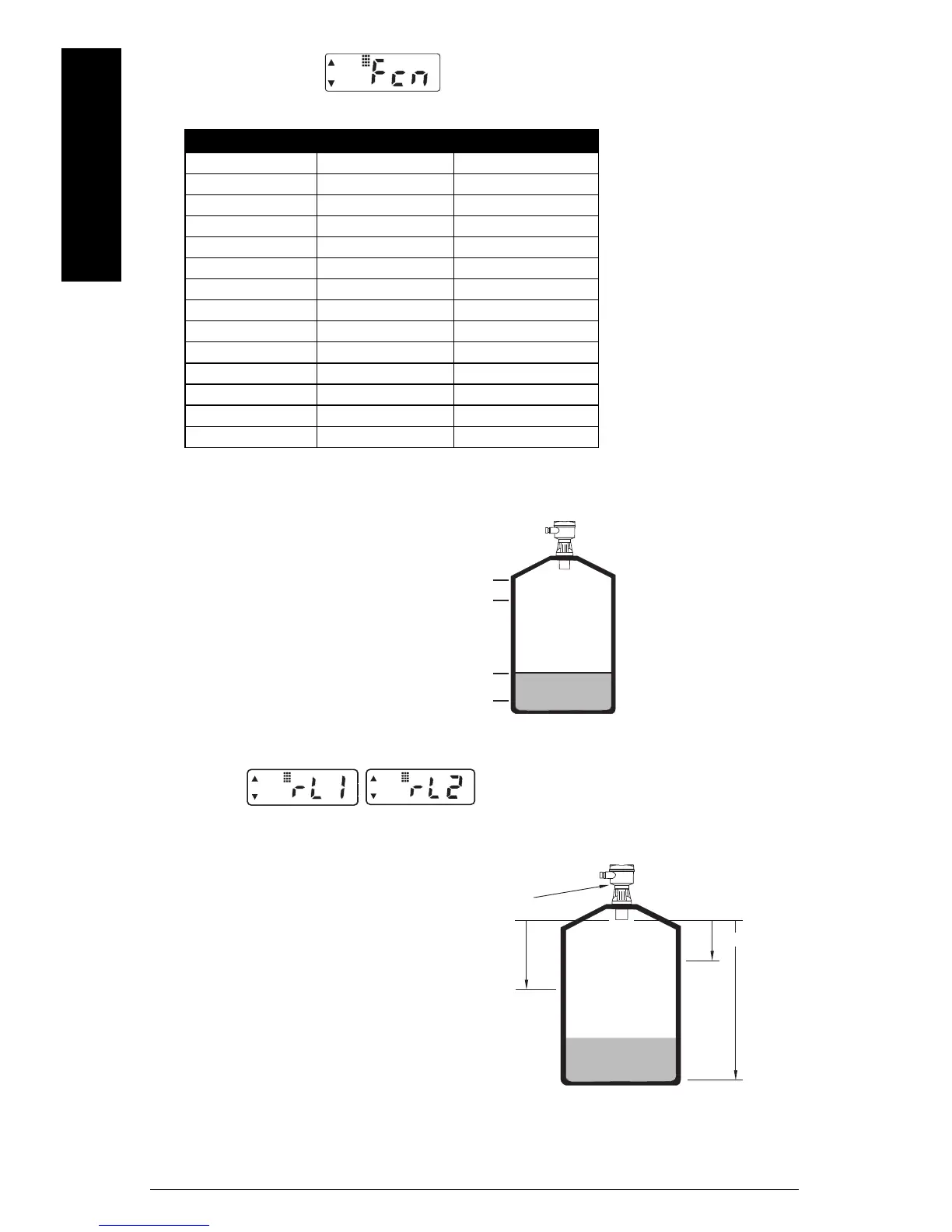

Output Function
The alarms can be set to function in the desired mode.
* Factory setting
Function display:
Setpoints
Function Relay 1 Relay 2
1 * high alarm low alarm
2 high alarm high alarm
3 low alarm low alarm
4 high alarm LOE alarm
5 low alarm LOE alarm
6 pump down low alarm
7 pump down high alarm
8 pump up low alarm
9 pump up high alarm
10 pump down LOE alarm
11 pump up LOE alarm
12 pump down pump up
13 pump down pump down
14 pump up pump up
high alarm H 
high-high alarm HH 
low alarm L 
low-low alarm LL 
loss of echo alarm LOE 
pump up control PU
pump down control PD
The setpoints can be set where reference levels,
either from the material in the vessel or from a
target, cannot be provided. This method can also
be used to trim the output levels obtained by the
Reference Method (Quick Start).
The setpoints are referenced from the face of the
sensor. They should not be set at or above the
blanking value, or at or below the range limit.
Factory Setting: Relay 1 = 0.5 m (1.64 ft)
Relay 2 = 4.50 m (14.76 ft)
high-high
high
low
low-low
ULS200
setpoint
blanking
range
limit
