Range Limit
Speed of Response
The speed of response adjustment allows the user to collectively set a number of
operating parameters.
measurement is the limit to which the Pointek ULS200 is able to keep up with
response: rates of change.
If the Pointek ULS200 measurement cannot keep up with the
rate of level change, set the adjustment from 1 to 2.
If the Pointek ULS200 still cannot keep up with the rate of
level change, set the adjustment option to 3. Avoid
choosing an option that is too fast for your application.
agitator discriminates between agitator blades in motion
discrimination: and the material (target) surface.
filter: discriminates between false echoes from acoustical
and electrical noise and the material (target) surface.
fail-safe timer: establishes the `Waiting' period from the time a loss
of echo or operating fault condition starts until the
fail-safe default is effected.
* Factory setting

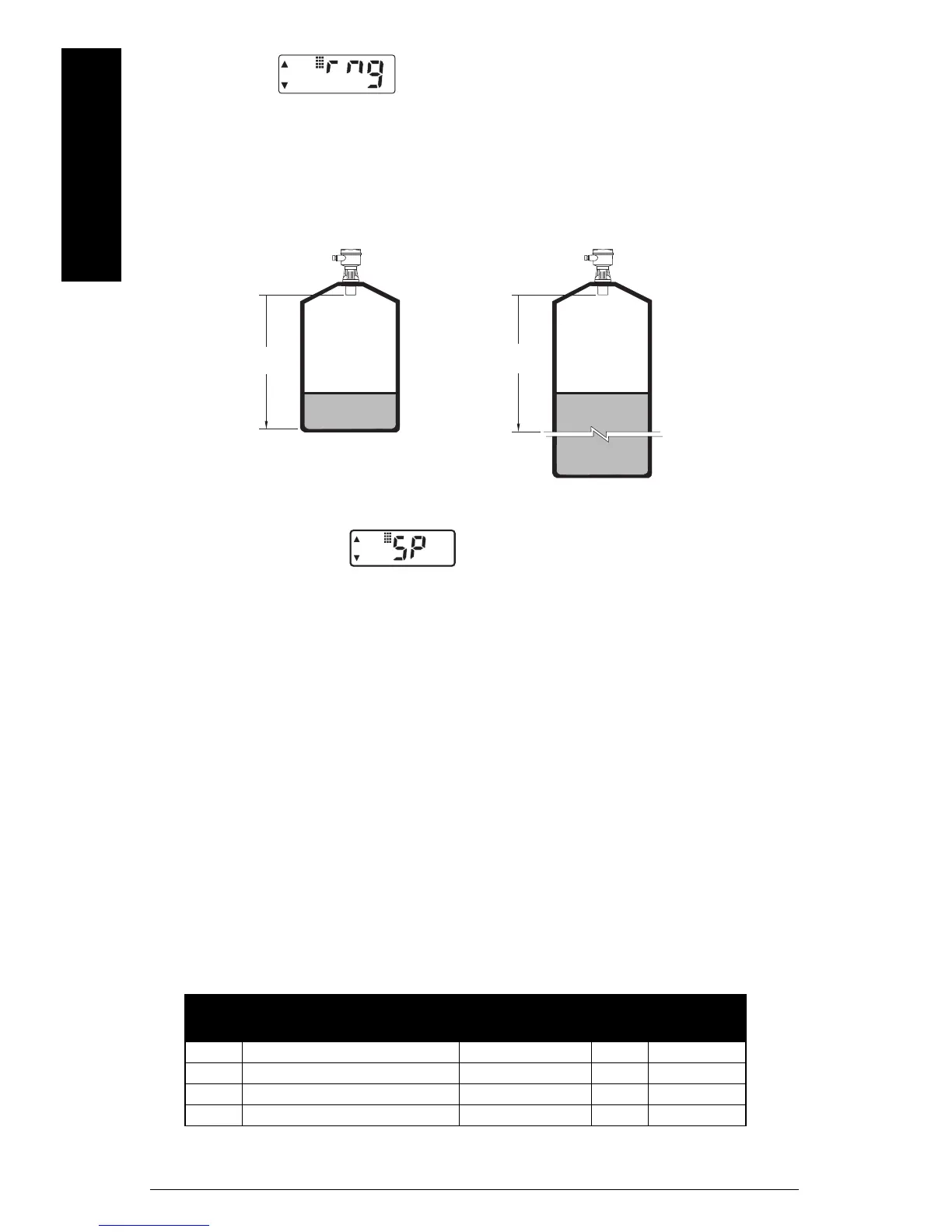

The range limit is the distance at which measurements are ignored. Generally this
refers to the bottom of the container being measured. If a measurement is
detected beyond the range limit it results in a Loss Of Echo (LOE) reading. The
result of this reading is determined by the Fail-Safe Mode, see
page 17 for more
information.
Factory setting: 5.50 m (18.0 ft)
SP measurement response
agitator
discrimination
filter FLS timer
1 0.3 m / min (0.1 ft / min) on on 10 min
2* 1 m / min (3.3. ft / min) on on 10 min
3 5 m / min (16.4 ft / min) on on 3 min
4 immediate off off 3 min
range
limit
range
limit
0 to 3 m vessels (solids)
0 to 5 m (liquids)
greater than 3 m vessels (solids)
greater than 5 m (liquids)
