A5E32268616 Pointek ULS200 – QUICK START MANUAL Page EN-7
mmmmm
English

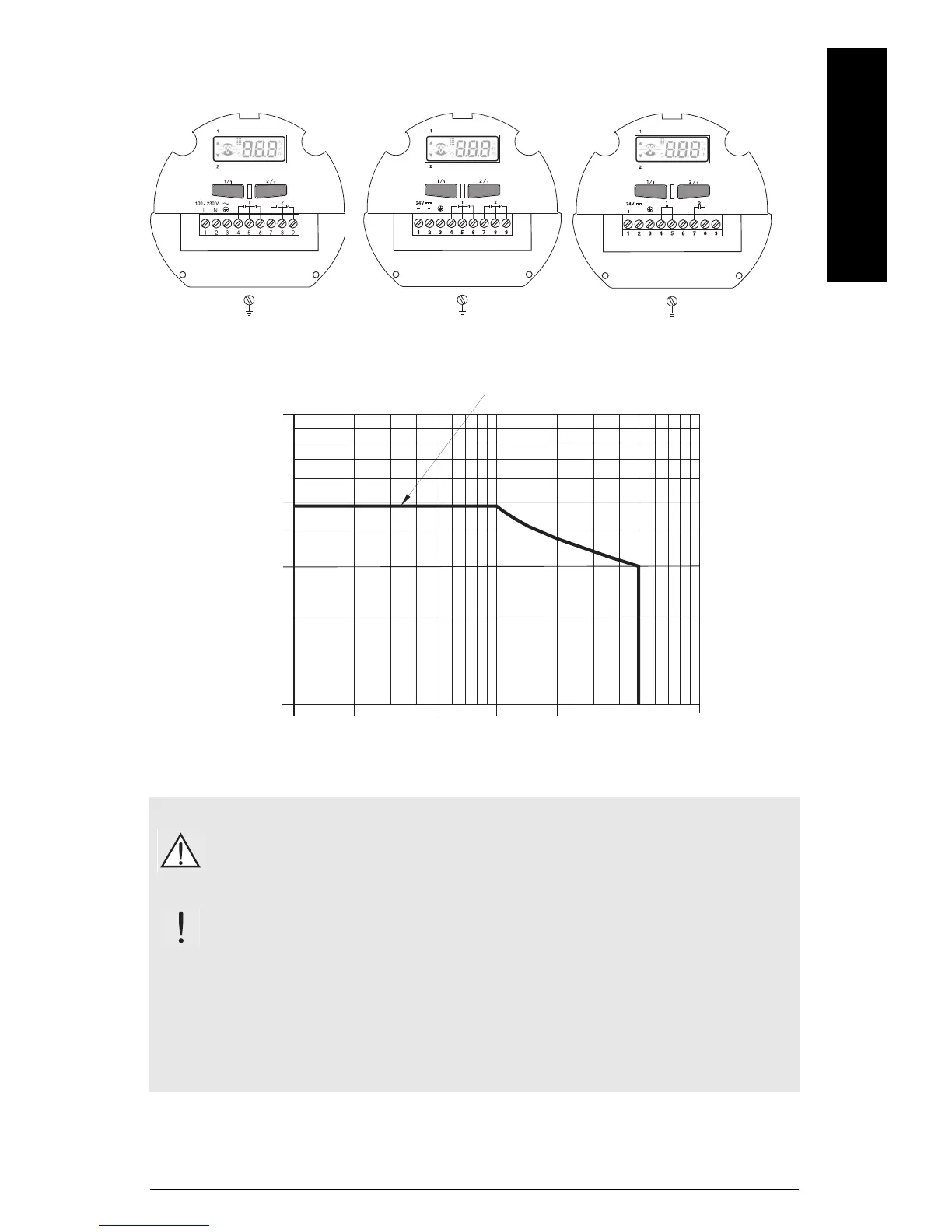

Interface
AC DC - relay output DC - transistor output
WARNINGS:
The DC input terminals shall be supplied from a source providing electrical
isolation between the input and output, in order to meet the applicable safety
requirements of IEC 61010-1
All field wiring must have insulation suitable for rated voltages.
Notes:
• A circuit breaker or switch in the building installation, marked as the disconnect switch,
shall be in close proximity to the equipment and within easy reach of the operator.
• Relay contact terminals are for use with equipment having no accessible live parts and
wiring having insulation suitable for at least 250 V.
• This product is susceptible to electrostatic shock. Follow proper grounding procedures.
100
50
40
30
20
10
0.1 0.2 0.5 1 2 5 10
Relay output - DC contact voltage and current limits
max. 48 V DC
switched contact voltage (V DC)
relay contact current (A)
(resistive load only)
