POLYMOBIL Plus SPR8-125.034.02 Page 2 of 2 Siemens AG
Rev. 02 03.05 CS PS 24 Medical Solutions
2 - 2 Unpacking
Remove the protection covers from the single tank and the collimator.
Remove the 4 Allen screws (2/Fig. 2, 17 mm spanner opening), the strap (3/Fig. 2) and
the U-shaped rail (4/Fig. 2).
Bring the foot pedal from the locking position into the maneuvering position
(6/Fig. 3). For other foot pedal positions, refer to the operating instructions.
Remove the 2 Allen screws and the bracket (7/Fig. 2, 17 mm spanner opening) from the
stand trolley on the right and left side.
Push the POLYMOBIL Plus over the rail (8/Fig. 3) and move it off the pallet via the ramp
(9/Fig. 3).

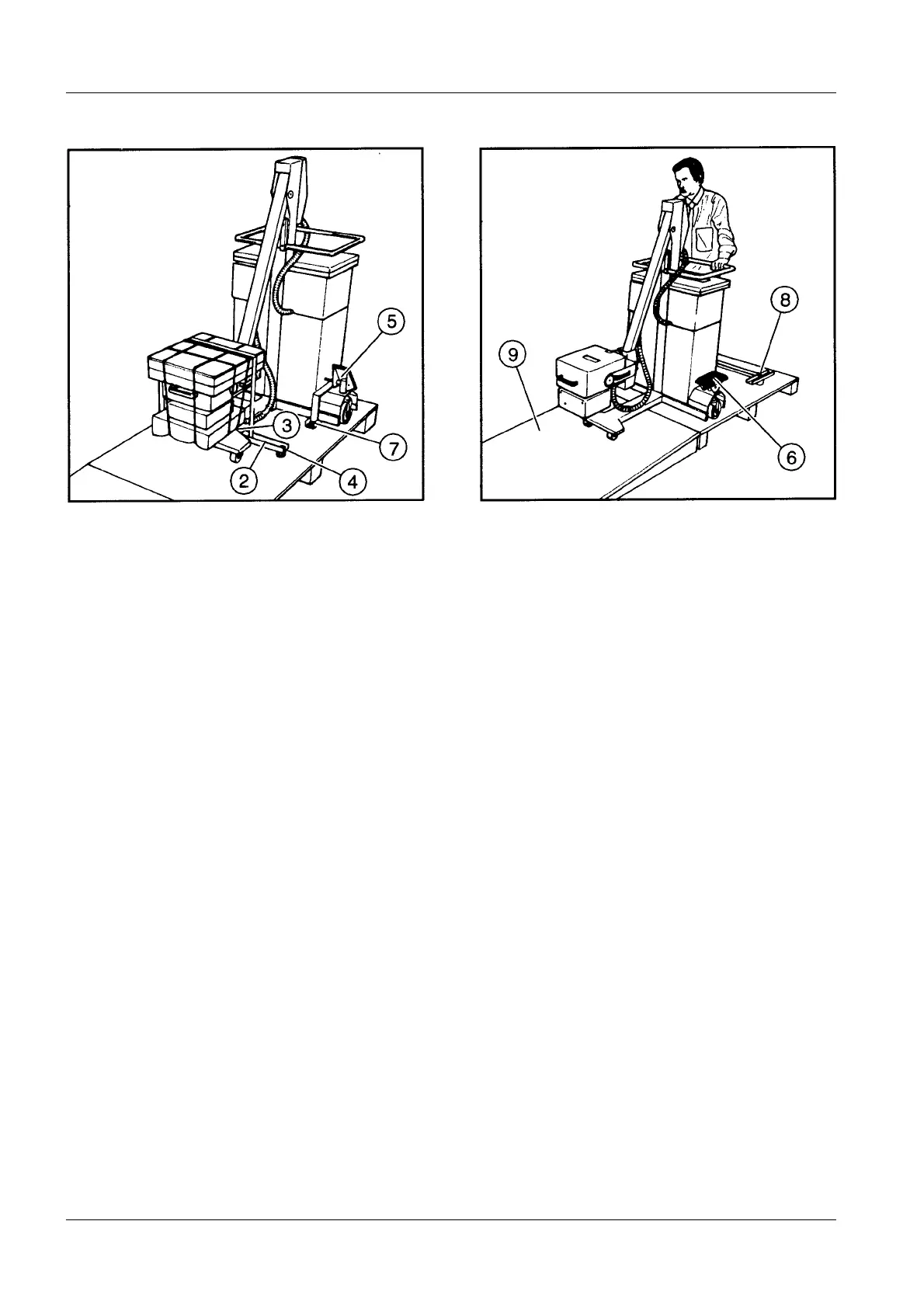

Fig. 2 Fig. 3
