PROFINET IO installation techniques
PROFINET IO communication can be set up as a bus a "BUS" or "STAR". Please note the
information in the section "Loop-through connection of PROFINET
IO and supply voltage
(Page 26)".
Controller e.g.
CPU S7-400
24 VDC
PROFINET
RF180C
RF180C RF180C

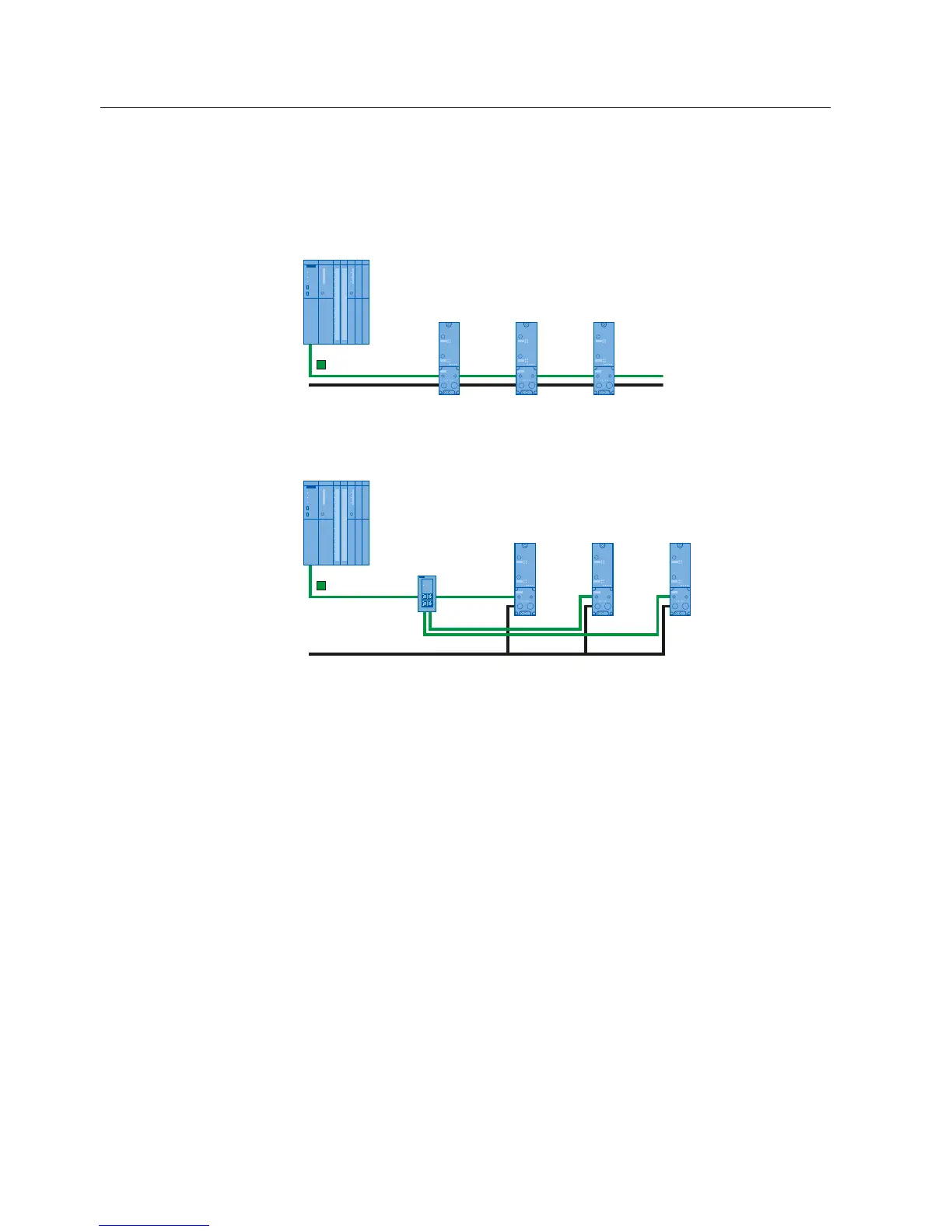

Figure 4-1 RF180C with "BUS"setup
Controller e.g.
CPU S7-400
24 VDC
Switch
(e.g. SCALANCE)
PROFINET
RF180C
RF180C RF180C
Figure 4-2 RF180C with "STAR" setup
