Connecting cable to the reader
10.2 Self-assembled cable
RF180C communication module
62 Operating Instructions, 12/2012, J31069-D0177-U001-A6-7618
10.2 Self-assembled cable
A reader/SLG connector plug with screw terminals is available for users who want to
individually assemble their own cables (refer to the relevant system manual). Cables and
reader/SLG connector plugs can be ordered from the catalog "ID 10 Industrial Identification
Systems".
Cable structure
You will need cables of the following specifications for self-assembled cables:
● 7 x 0.25 mm
2
● LiYC11Y 7 x 0.25
Connectors
M12 connectors can be obtained from the relevant specialist dealers (e.g. Binder).
Pin assignment
The pin assignment is listed in the following table.

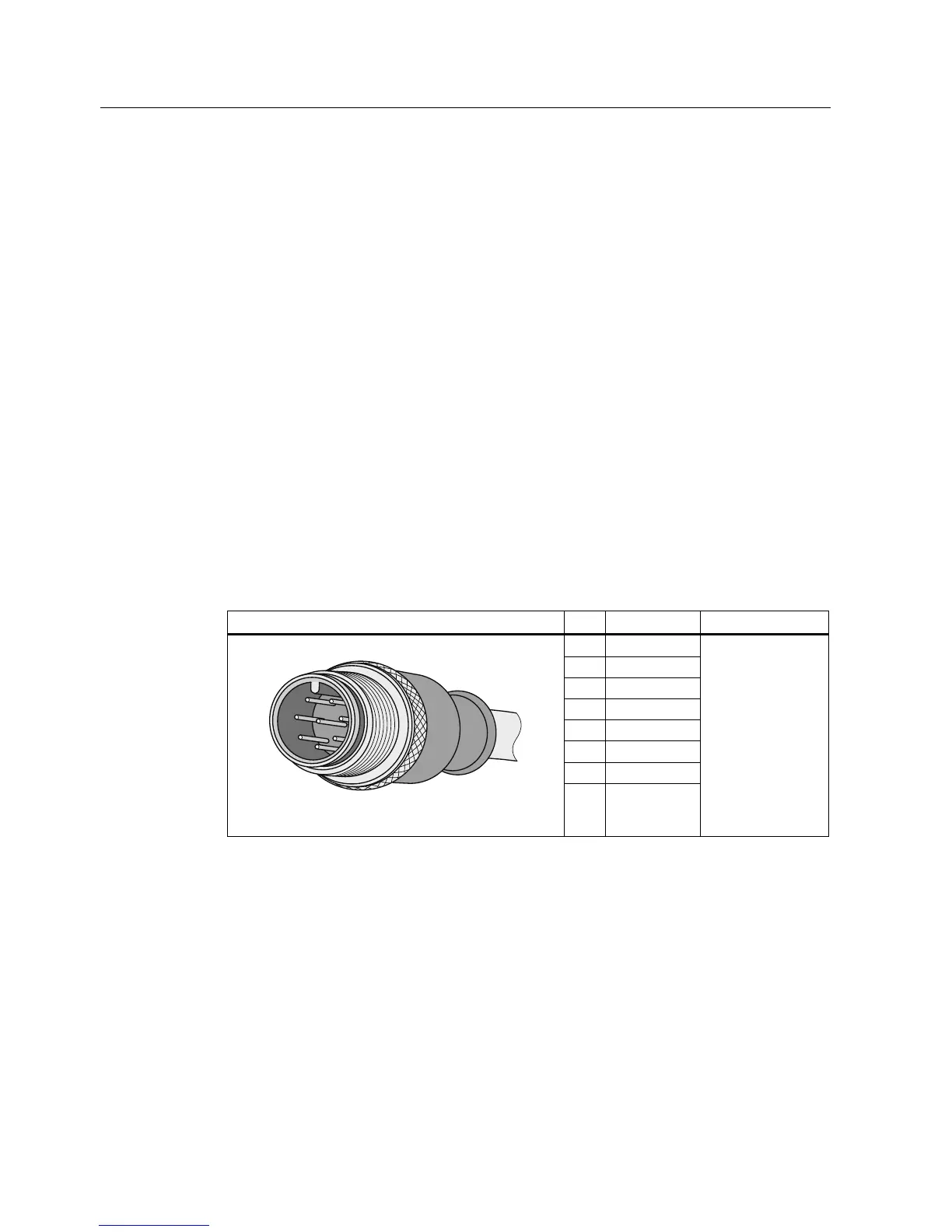

Table 10- 4 Pin assignment
M12 connector (male) Pin Signal Core color
1 1L+ (+ 24 V)
2 −RxD
3 0 V
4 RxD
5 TxD
6 −TxD
7 Free
8 Functional
ground
(PE)/shield
Note data sheet
provided by cable
manufacturer
