RF180C communication module
Operating Instructions, 12/2012, J31069-D0177-U001-A6-7618
7
Description
2
Area of application
The RF180C communication module is a module that can be used on any controller for
operating RFID components over PROFINET IO.

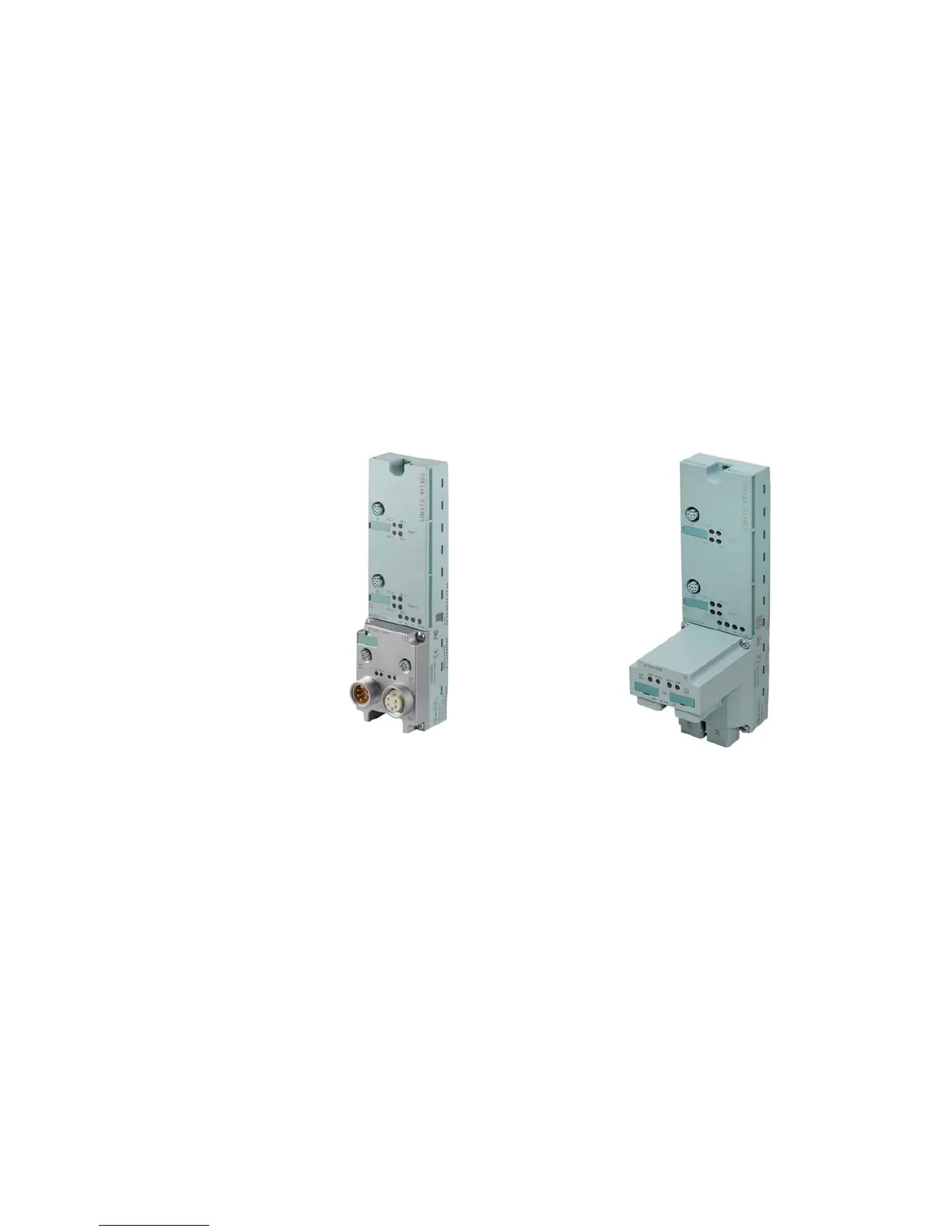

RF180C communication module
With M12 connection block (7/8") With push-pull connection block
When operating the RF180C on a SIMATIC S7, a user-friendly function block is made
available to the user (FB 45/FB 55). FB 55 can be used for single tag applications and
multitag applications; FB 45, however, can only be used for single tag applications. When
using it on other controllers, please follow the appropriate instructions for parameterization
and integration in the system.
The following RFID readers and code readers can be operated with the RF180C:
● RF200
● RF300 (standard addressing)
● RF600 (RF620R and RF630R)
● MOBY D
● MOBY U (standard addressing)
● MOBY E
● MOBY I (standard addressing)
