Siemens RUGGEDCOM RSG2488 Installation Manual

Installing the Device
2.3.3Mounting the Device to a Panel
Removing the Device
To remove the device from a DIN rail, do the following:
1. Remove screws from the DIN rail adapters on both sides of the device.
2
3
3
1
1
3
1
2
1
DIN Rail
2
DIN Rail Adapter
3
Screw

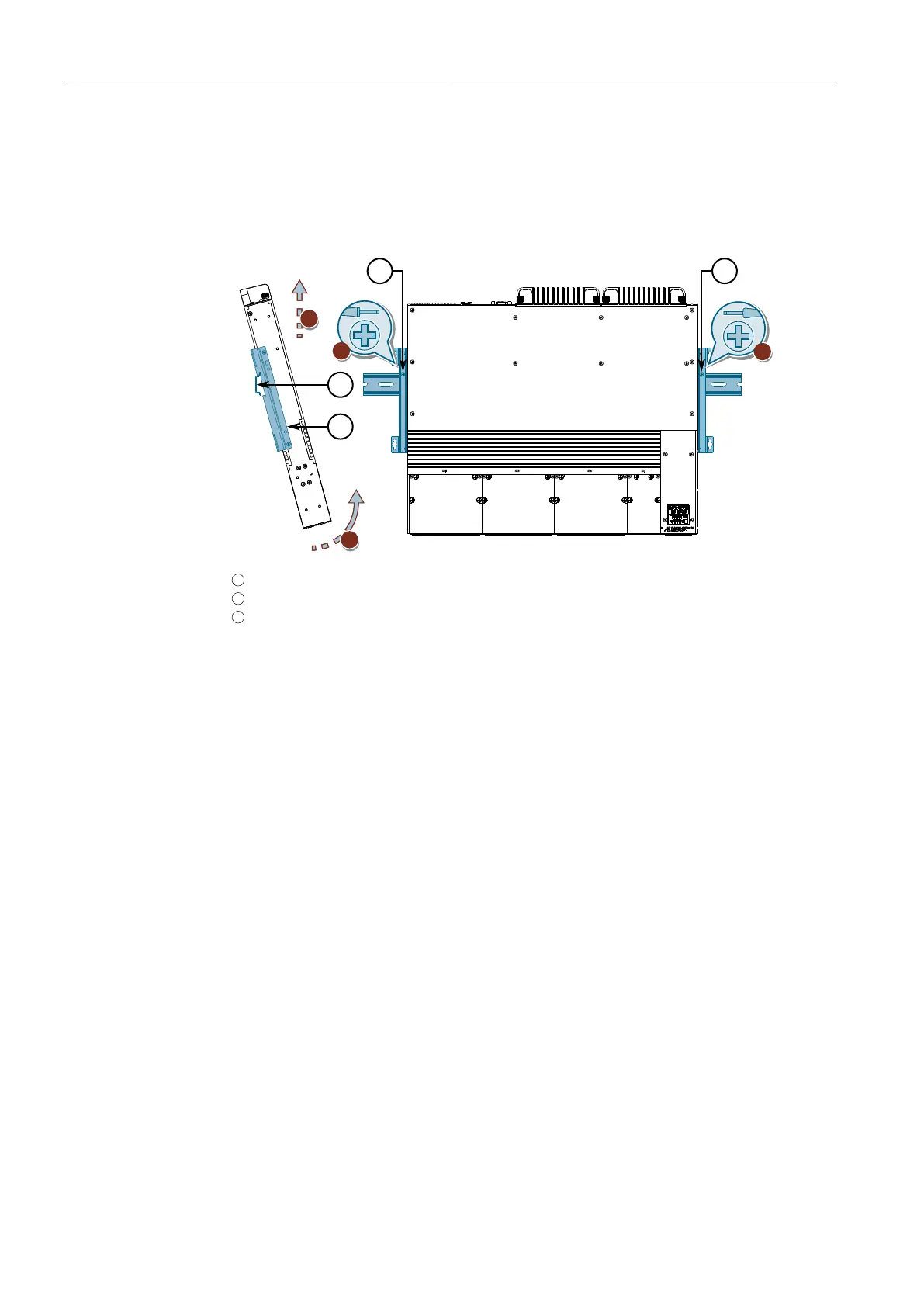

Figure2.3 Removing the Device from a DIN Rail
2. Swing the bottom of the device away from the DIN rail.
3. Lift the device off the DIN rail.
2.3.3 Mounting the Device to a Panel
For panel installations, the RUGGEDCOM RSG2488 can be ordered with panel/DIN rail
adapters pre-installed on each side of the chassis. The adapters allow the device to
be attached to a panel using screws.
RUGGEDCOM RSG2488
Installation Manual, 07/2021, C79000-G8976-1048-11
11
