3.2Configuring the Device
Pin Name Description
9 Reserved (Do Not Connect)
The management port is a 10/100Base-TX copper Ethernet port with an RJ45
connector. The following is the pin-out for the management port:

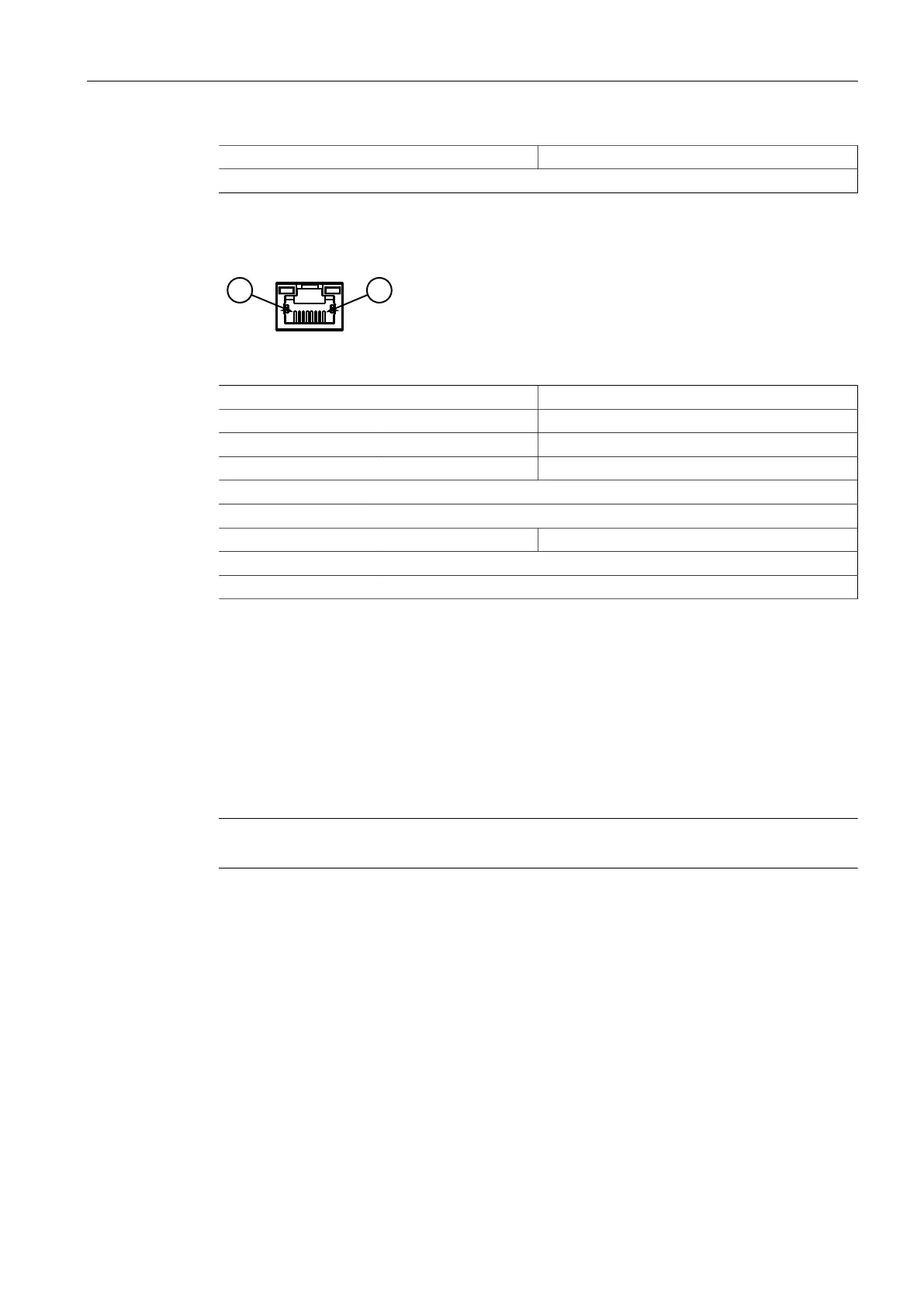

Figure3.2 RJ45 Management Port
Pin Name Description
1 TX+ Transmit Data+
2 TX- Transmit Data-
3 RX+ Receive Data+
4 Reserved (Do Not Connect)
5 Reserved (Do Not Connect)
6 RX- Receive Data-
7 Reserved (Do Not Connect)
8 Reserved (Do Not Connect)
Communication Ports
Connect any of the available Ethernet ports on the device to a management
switch and access the RUGGEDCOM RSG2488 console and Web interfaces via the
device's IP address. The factory default IP address for the RUGGEDCOM RSG2488 is
https://192.168.0.1.
If connecting to the management port, use the address https://10.0.0.1.
For more information about available ports, refer to "Modules (Page 25)".
Note
Single-mode fiber ports only support Ultra Physical Contact (UPC) cable connectors.
3.2 Configuring the Device
Once the device is installed and connected to the network, it must be configured.
All configuration management is done via the RUGGEDCOM RSG2488 interface.
For more information about configuring the device, refer to the RUGGEDCOM ROS
Configuration Manual associated with the installed software release.
22
RUGGEDCOM RSG2488
Installation Manual, 07/2021, C79000-G8976-1048-11
