Device Management
3
This section describes how to connect to and manage the device.
3.1 Connecting to the Device
The following describes the various methods for accessing the RUGGEDCOM
RSG2488 console and Web interfaces on the device. For more detailed instructions,
refer to the RUGGEDCOM ROS Configuration Manual for the RUGGEDCOM RSG2488.
Serial Console and Management Ports
Connect a workstation directly to the serial console or management ports to access
the boot-time control and RUGGEDCOM RSG2488 interfaces. The serial console
port provides access to RUGGEDCOM RSG2488's console interface, while the
management port provides access to RUGGEDCOM RSG2488's console and Web
interfaces.
The serial console port implements RS-232 DCE (Data Communication Equipment) on
a DB9 connector. The following is the pin-out for the port:

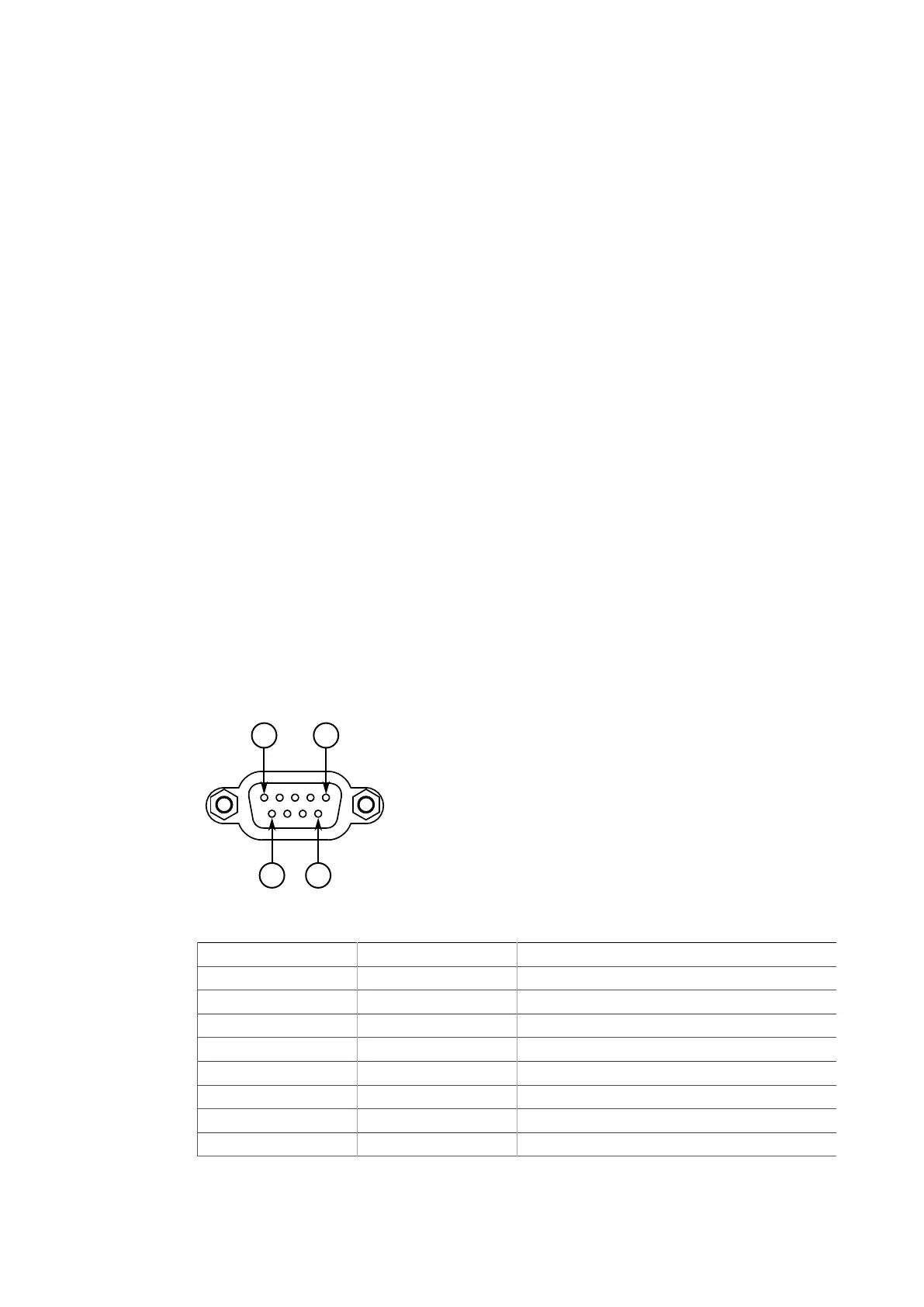

Figure3.1 Serial DB9 Console Port
Pin Name Description
1 DCD Data Carrier Detect
2 RX Receive Data
3 TX Transmit Data
4 DTR Data Terminal Ready
5 GND Signal Ground
6 DSR Data Set Ready
7 RTS Request to Send
8 CTS Clear To Send
RUGGEDCOM RSG2488
Installation Manual, 07/2021, C79000-G8976-1048-11
21
