Siemens RUGGEDCOM RSG2488 Installation Manual

Installing the Device
2.5.2Connecting Low DC Power
1. Connect the positive wire from the power source to the positive/live (+/L)
terminal on the terminal block.
1
2
4
6
3
5
3
5
4
6
1

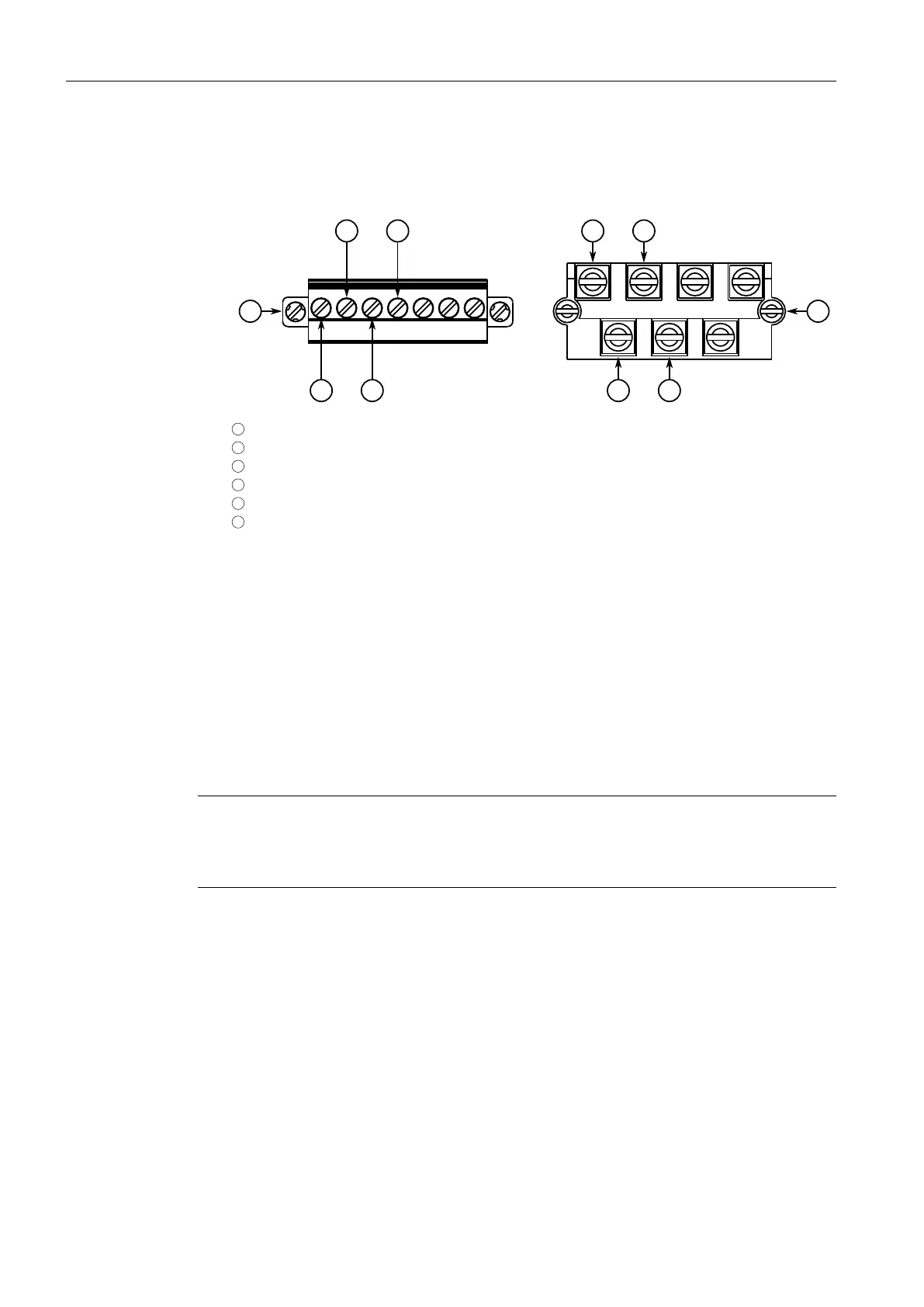

Screw-Type Terminal Block for HIP Power Supplies
2
Pluggable Terminal Block for HI Power Supplies
3
Positive/Live (+/L) Terminal for PS1
4
Neutral/Negative (-/N) Terminal for PS1
5
Positive/Live (+/L) Terminal for PS2
6
Neutral/Negative (-/N) Terminal for PS2
Figure2.6 AC Terminal Block Wiring
2. Connect the negative wire from the power source to the neutral/negative (-/N)
terminal on the terminal block.
3. Connect the ground terminal on the power source to the ground terminal on the
device. For more information, refer to "Grounding the Device (Page 16)".
2.5.2 Connecting Low DC Power
To connect a low DC power supply to the device, do the following:
Note
The screw-type terminal block is installed using Phillips screws and compression
plates, allowing either bare wire connections or crimped terminal lugs. Use #6 size
ring lugs for secure, reliable screws, which must be removed to make connections.
RUGGEDCOM RSG2488
Installation Manual, 07/2021, C79000-G8976-1048-11
15
