Siemens SCALANCE W784-1 User Manual

SCALANCE W-784-1xx / SCALANCE W-74x-1
Operating Instructions (Compact), Release 08/2007, A5E01174713-02
67
Mounting
4
4.1 Mounting without an adapter (wall mounting only)
Drilling template and procedure
The location of the holes for mounting the SCALANCE W784-1xx / W74x-1 on a wall is
shown in the following figure:
L1
PoE
P1
R1
F
s
SCALANCE
100
5
90
20
110
205
20
15
30

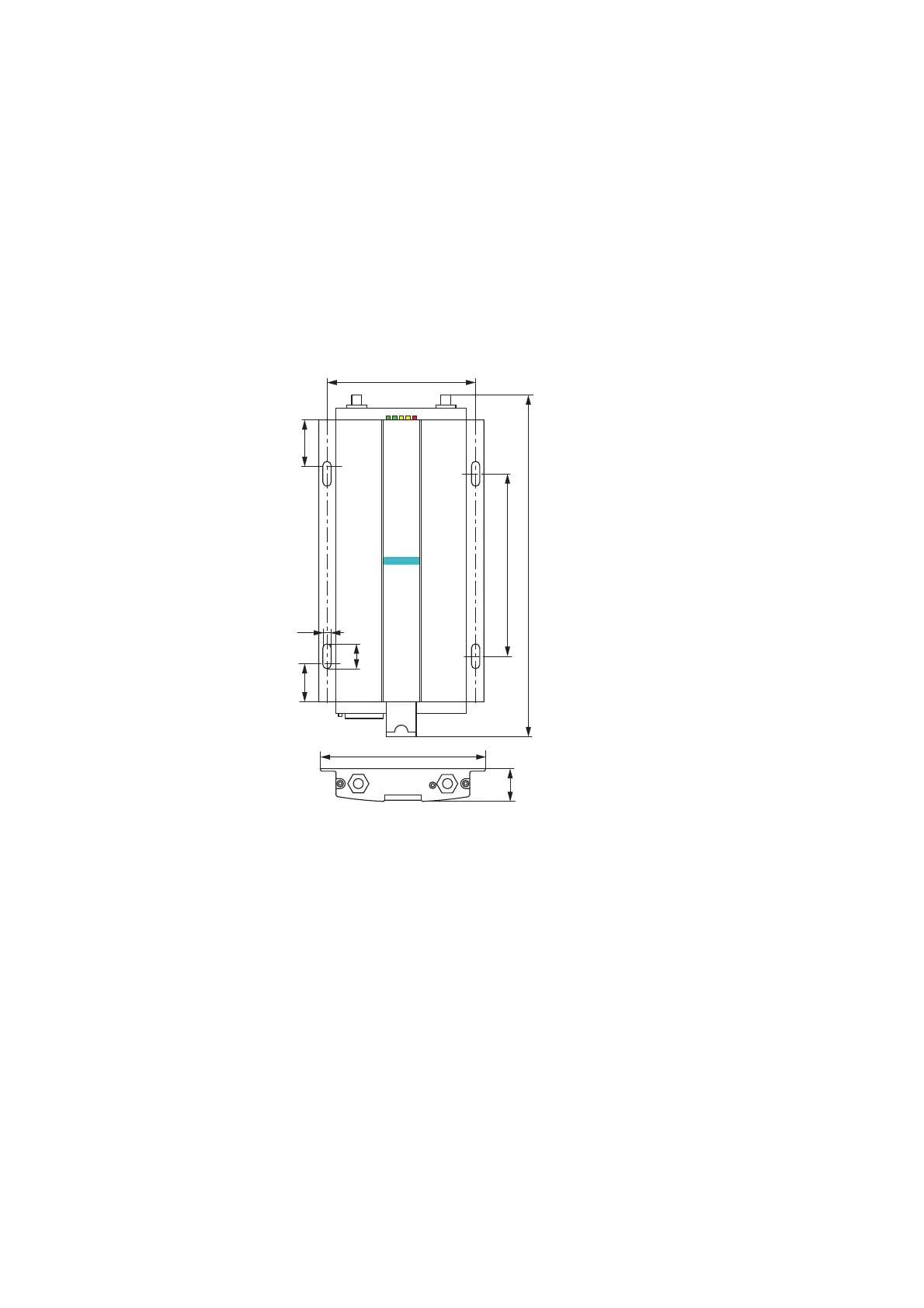

Figure 4-1 Drilling template for wall mounting of a SCALANCE W784-1xx / W74x-1
