Siemens SCALANCE W784-1 User Manual

Mounting
4.2 Mounting with adapter plate
SCALANCE W-784-1xx / SCALANCE W-74x-1
Operating Instructions (Compact), Release 08/2007, A5E01174713-02
71
4.2.3 Mounting the SCALANCE W784-1xx / W74x-1 on an adapter plate
Procedure
SCALANCE
L1
PoE
P1
R1
F
s

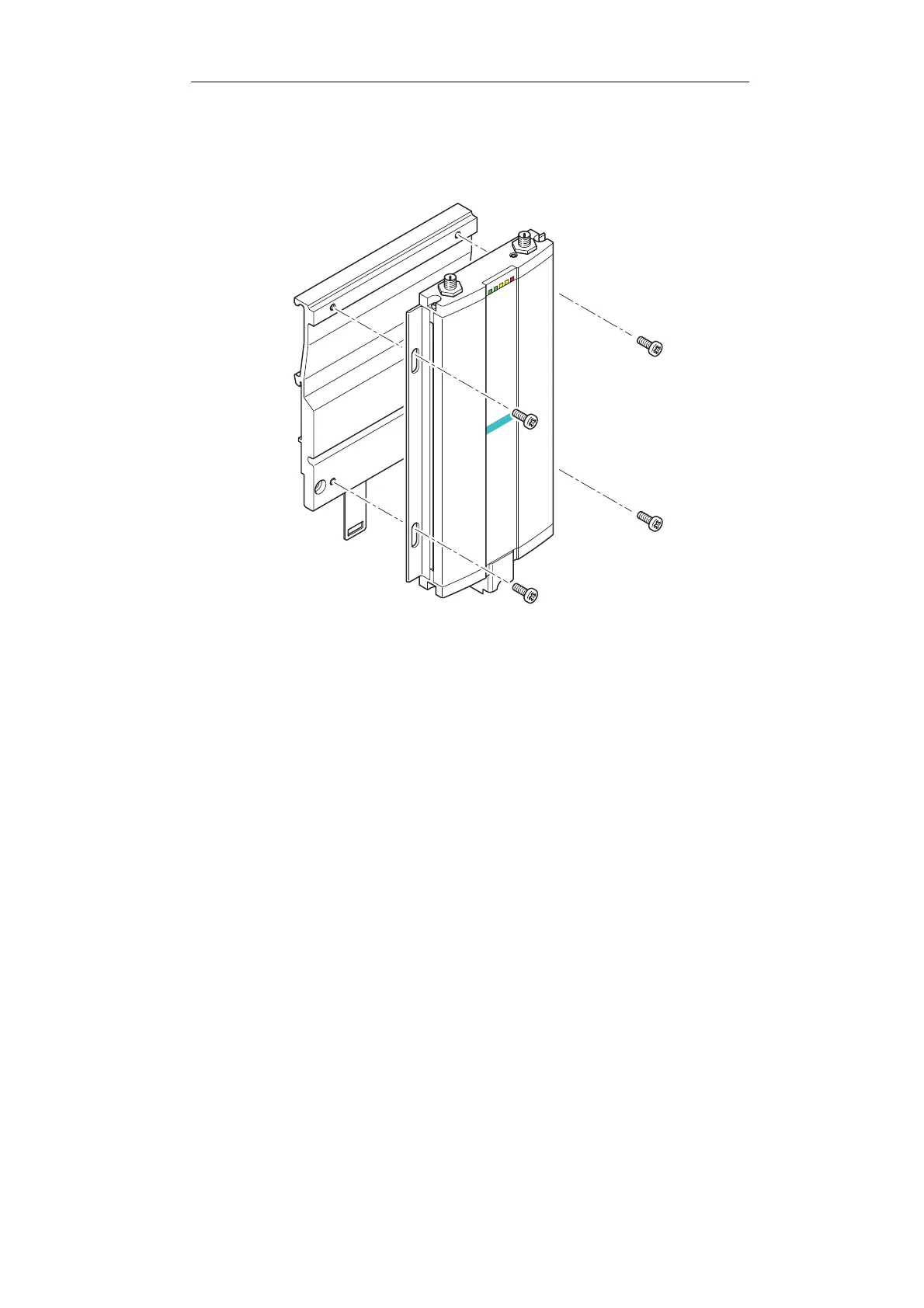

Figure 4-4 Screwing the SCALANCE W784-1xx / W74x-1 to an adapter plate
Screw the SCALANCE W784-1xx / W74x-1 to the plate using the four M4 screws supplied
with the adapter plate. The maximum tightening torque for these screws is 0.7 Nm.
