Siemens SCALANCE W784-1

Connecting up
5.6 Inserting / removing the C-PLUG
SCALANCE W-784-1xx / SCALANCE W-74x-1
Operating Instructions (Compact), Release 08/2007, A5E01174713-02
81
5.6 Inserting / removing the C-PLUG
Inserting the C-PLUG
A
1
2

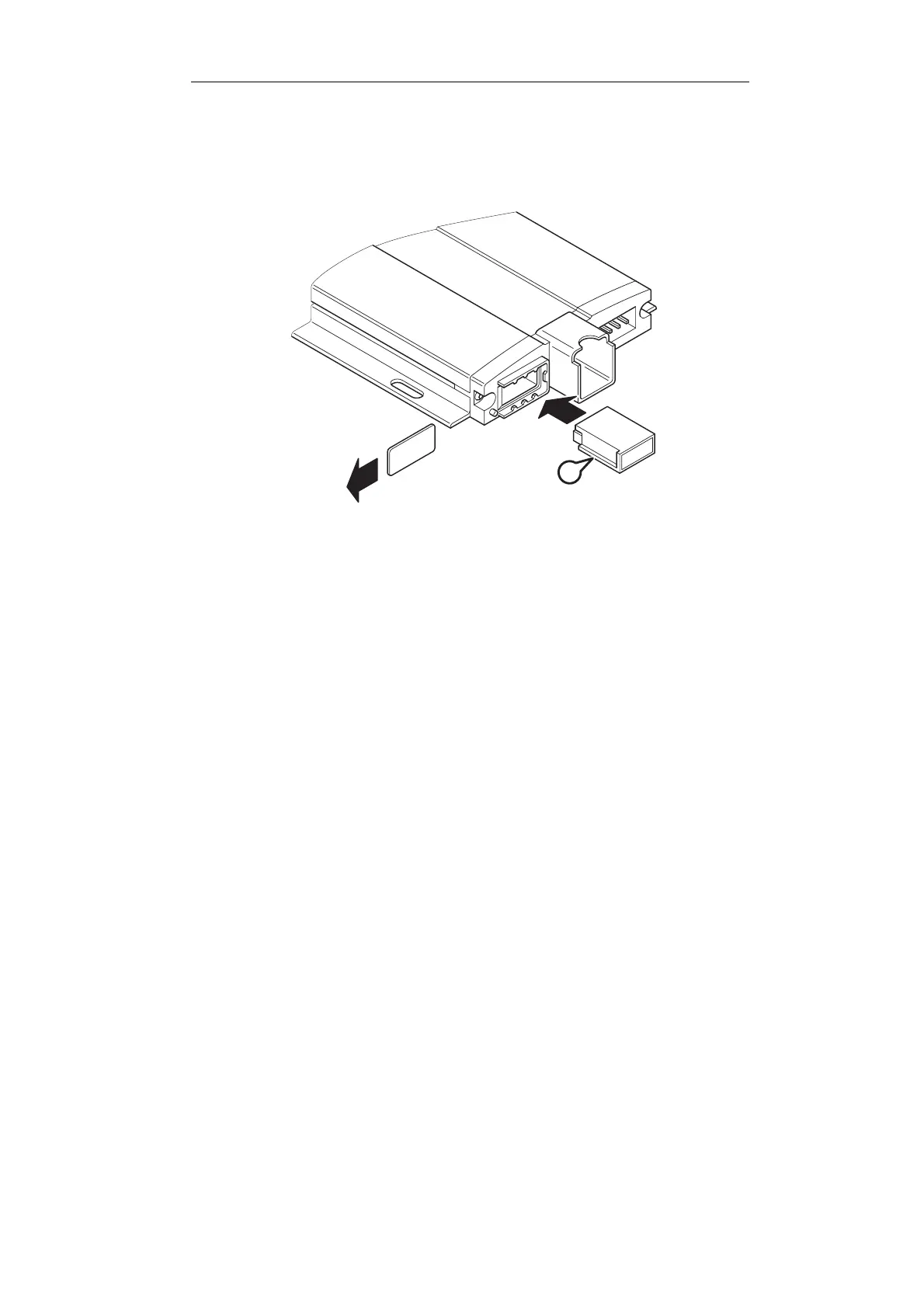

Figure 5-4 Inserting a C-PLUG in a W784-1xx / W74x-1
Follow the steps below to insert a C-PLUG in a SCALANCE W784-1xx / W74x-1:
1. Remove the cover of the slot.
2. The housing of the C-PLUG has a protruding long edge (position A). The C-PLUG can
only be inserted as shown in the figure above. The slot has a groove at this position.
Insert the C-PLUG into the slot.
3. Close the slot with the cover.
Removing the C-PLUG
1. Remove the cover of the slot.
2. Insert a screwdriver between the left-hand front edge of the C-PLUG and the slot and
release the C-PLUG. Remove the C-PLUG
3. Close the slot with the cover.
