Mounting
4.2 Mounting with adapter plate
SCALANCE W-784-1xx / SCALANCE W-74x-1
70 Operating Instructions (Compact), Release 08/2007, A5E01174713-02
4.2.2 Mounting the adapter plate on a 35 mm DIN rail
Procedure
A
B

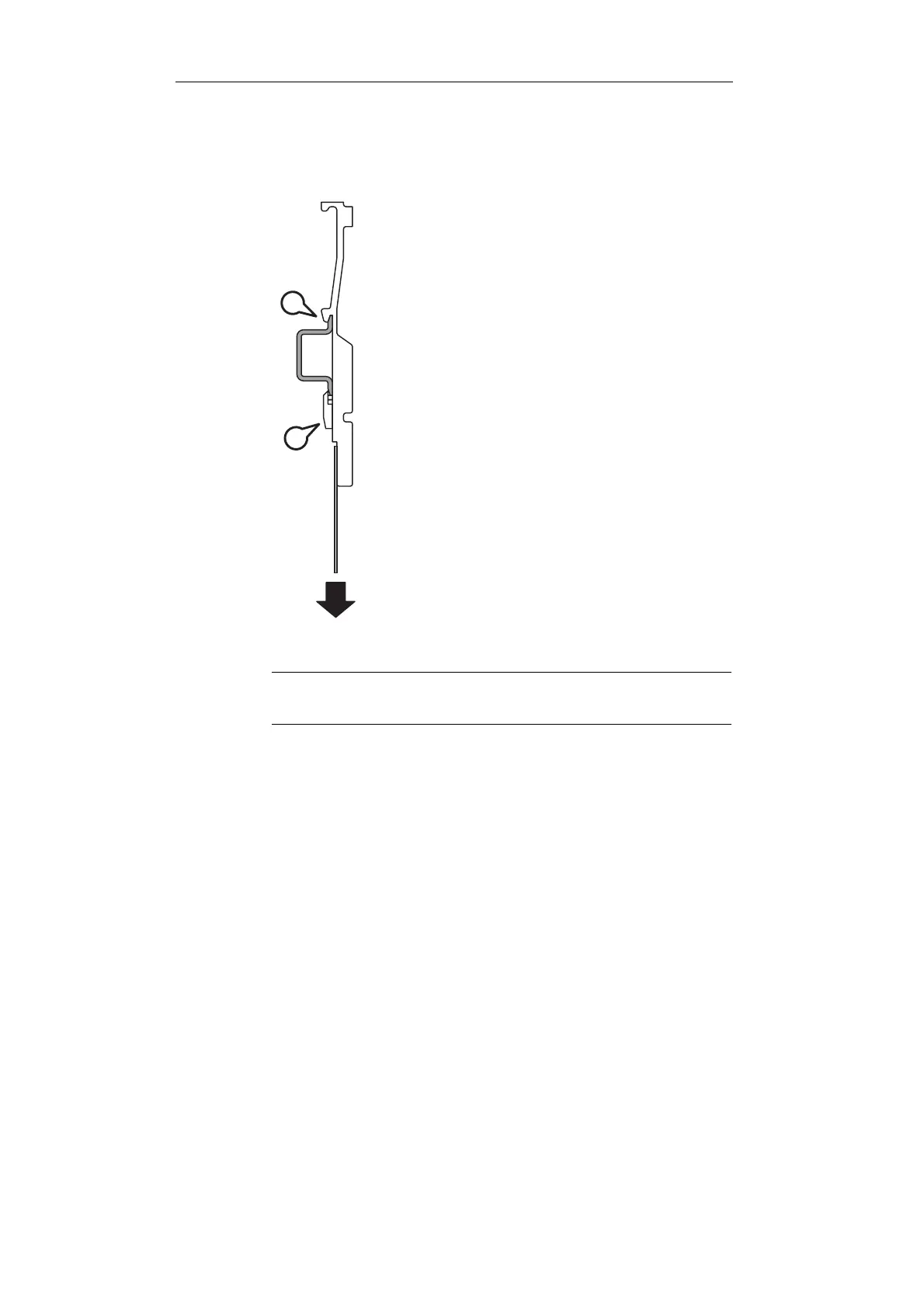

Figure 4-3 Side view of a DIN rail (shown in gray) with an adapter plate fitted
Note
For cabinet installation, we recommend that you do not install relays on the same or on
directly neighboring mounting rails
Follow the steps below to fit the adapter plate to a DIN rail:
1. Place the adapter plate on the upper edge of the DIN rail (position A in the figure above).
2. Pull down the DIN rail sliding catch (position B in the figure above) and press the adapter
plate against the DIN rail until the sliding catch engages.
