3.4 Description of the product
SCALANCE X-400
Operating Instructions, 06/2015, C79000-G8976-C186-12
53
Note
It is possible to insert and remove the media modules during operation. Before inserting a
medial module, remove the cover and protective cap from the port. Please put these away
for safe keeping. If you remove a media module, close the terminal strip with
the protective
cap and the slot with the cover.
Options for slot 5 (SCALANCE X414-3E)
Slot 5 of the basic device has two RJ-45 jacks for connecting TP cables. The possible data
transmission rates on electrical connections are 10, 100, or 1000 Mbps.
An optical gigabit module in slot 5 allows data transmission with multimode or single mode
FOC. In this case, the two RJ-45 jacks can no longer be used.
Options for slots 6 and 7 (SCALANCE X414-3E)
Slots 6 and 7 do not have any ports but allow two optical Fast Ethernet modules to be
inserted each with ports. This gives you the opportunity of data transmission at a data
transmission rate of 100 Mbps over multimode or single mode FOC.

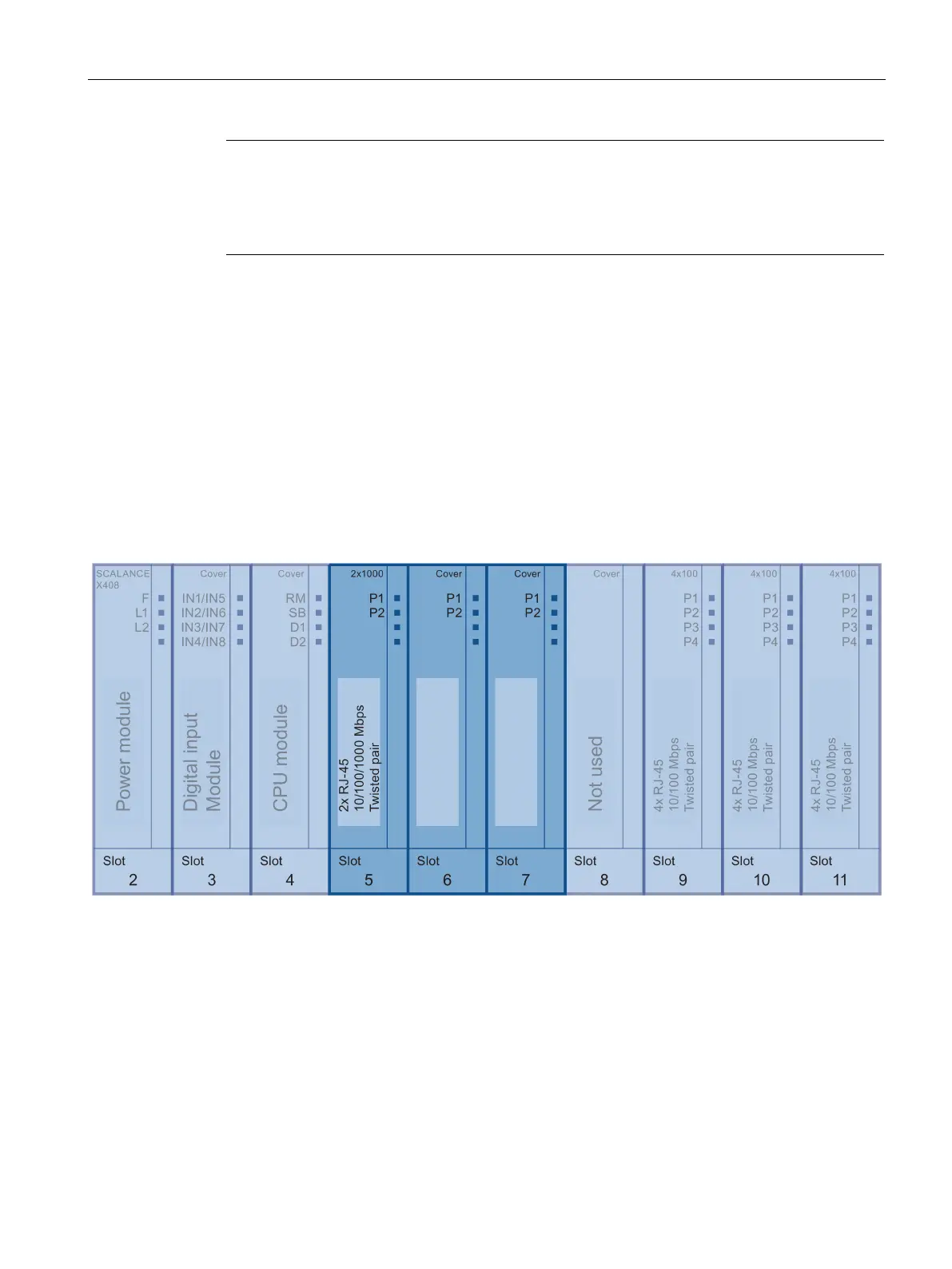

Figure 3-25 Slots of the media modules
