Description
3.4 Description of the product
SCALANCE X-400
Operating Instructions, 06/2015, C79000-G8976-C186-12
69
When using the gigabit ports for electrical cables (twisted pair), use cover type CV490
2x1000 on slot 5.

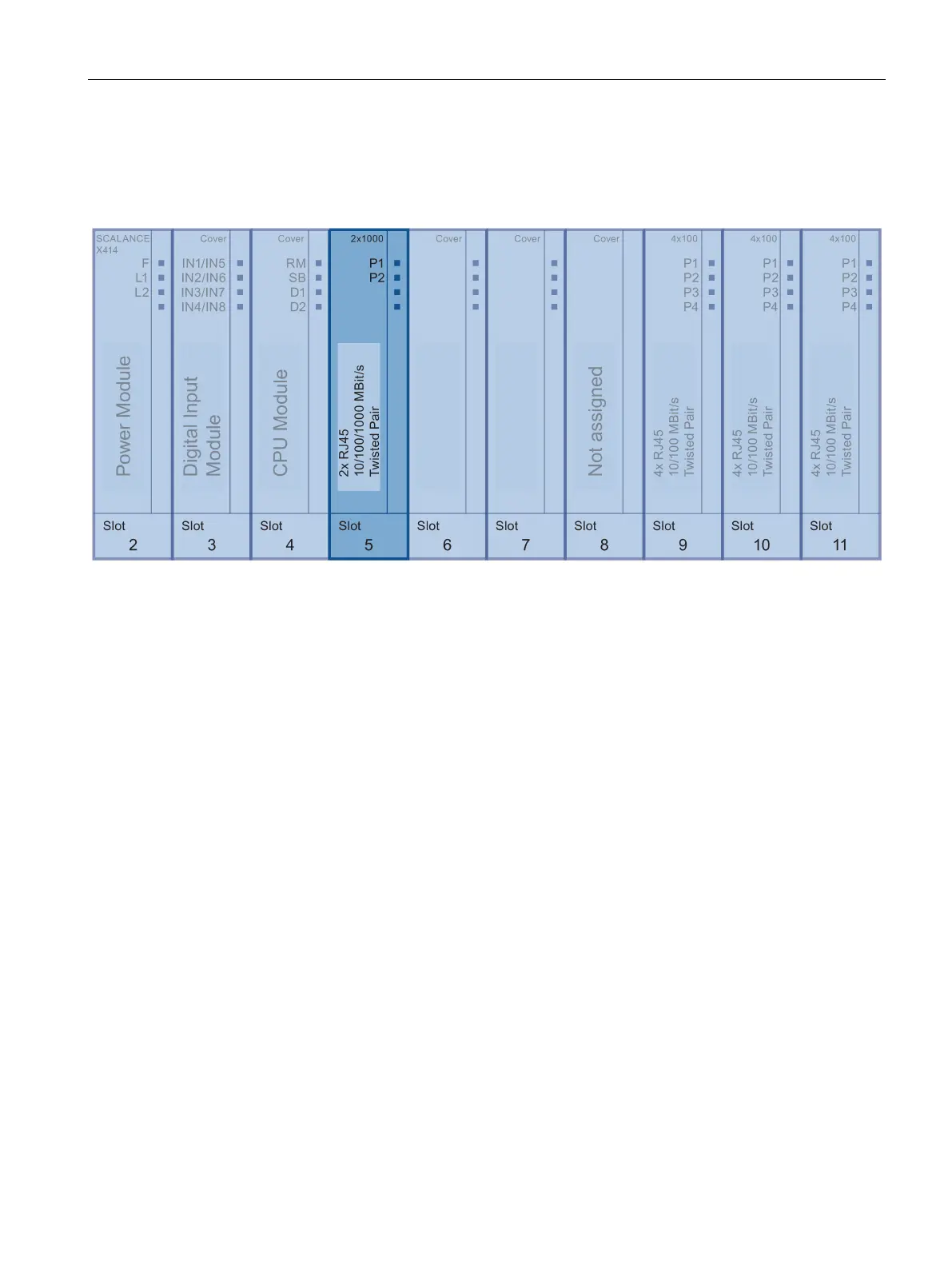

Figure 3-34 Slot 5 for the CV490 2x1000 cover
The port status of the two electrical gigabit ports 1 and 2 are displayed on the front panel of
the cover by two LEDs.
