Description
3.4 Description of the product
SCALANCE X-400
70 Operating Instructions, 06/2015, C79000-G8976-C186-12
CV490 2x100
Slots 6 and 7 are solely for the Fast Ethernet media modules MM491-2, MM491-2LH+ and
MM491-2LD. The basic device does not provide any ports on these slots.

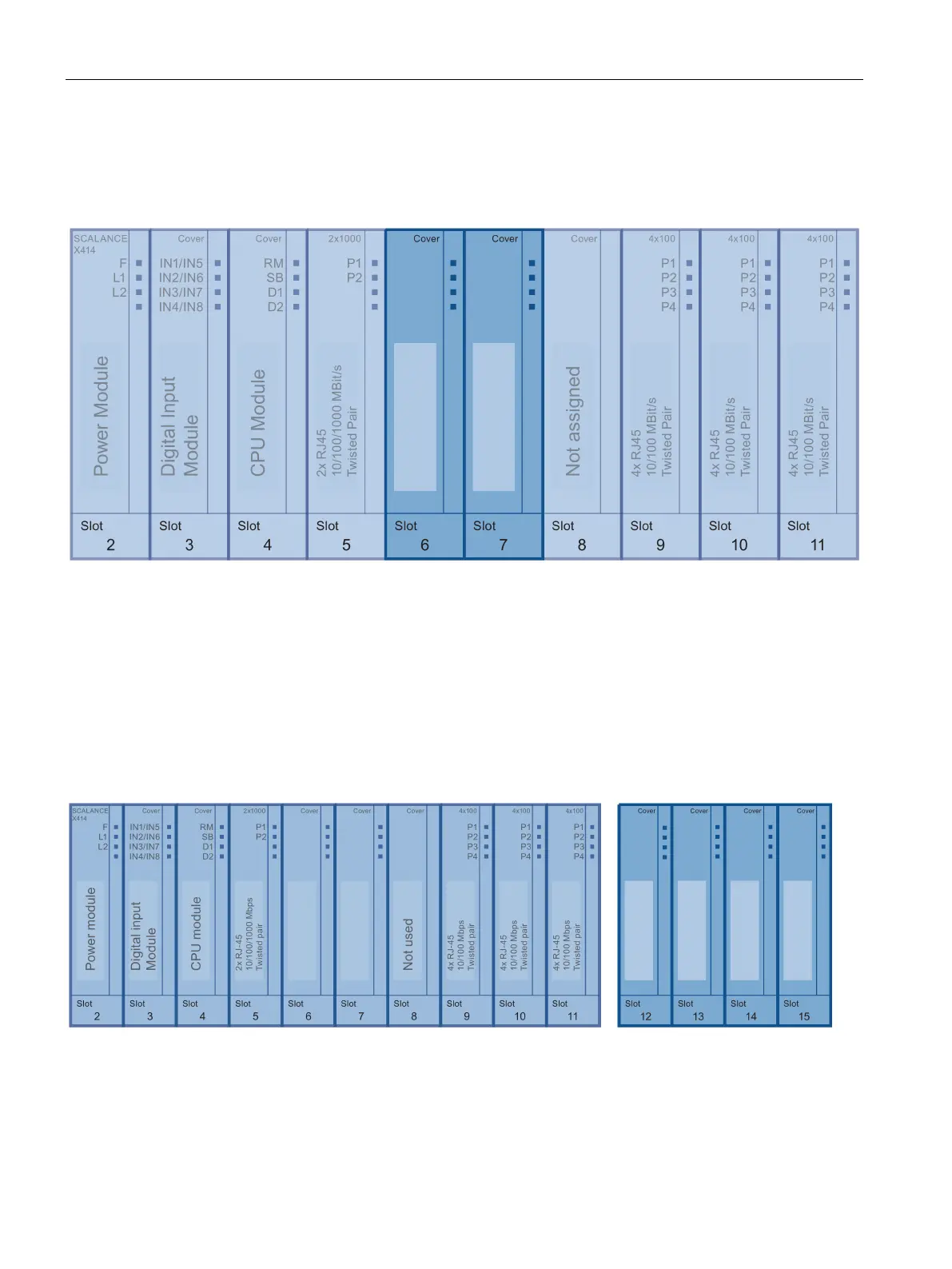

Figure 3-35 Slots 6 and 7 for the CV490 2x100 cover
Displays of the cover
The LEDs of the CV490 2x100 cover have no function.
Further slots for the CV490 2x100 cover
Use the CV490 2x100 cover not only for the SCALANCE X414-3E but also for slots 12
through 15 of the media module extender EM496-4 if no media modules are inserted.
Figure 3-36 Slots 12 through 15 for CV490 2x100 cover on media module extender EM496-4
