3.4 Description of the product
SCALANCE X-400
Operating Instructions, 06/2015, C79000-G8976-C186-12
71
The SCALANCE X414-3E provides you with four electrical Fast Ethernet ports on slots 9
through 11.

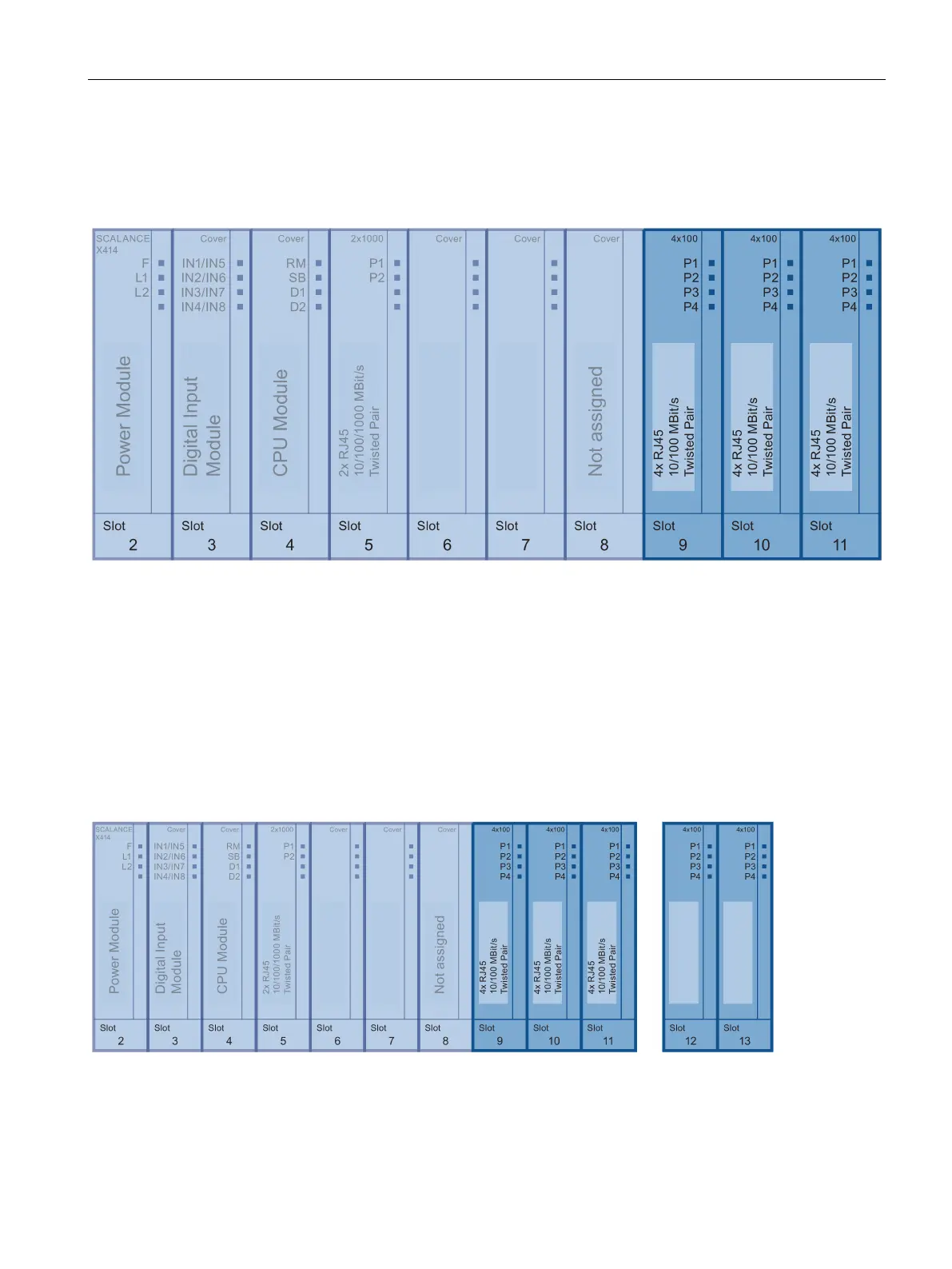

Figure 3-37 Slots 9 to 11 for CV490 4x100 cover
The status of each of the four Fast Ethernet ports 1 through 4 is displayed on the front panel
of the CV490 4x100 cover by four LEDs.
Further slots for the CV490 4x100 cover
The CV490 4x100 cover can not only be used with the SCALANCE X414-3E but also for
slots 12 and 13 of the twisted pair extender EM495-8.
Figure 3-38 Slots 12 and 13 for the CV490 4x100 cover on the twisted pair extender module EM495-8
