Installation
4.2 Installing / uninstalling the SCALANCE X-400
SCALANCE X-400
84 Operating Instructions, 06/2015, C79000-G8976-C186-12
To remove the device, follow the steps below:
1. Using a slotted screwdriver with a 5.5 mm wide blade, pull down the clip on the basic
device slightly and pull out the lower part of the basic device to the front so that the spring
clips can no longer engage.
2. Lift the IE Switch X-400 up and off the DIN rail.

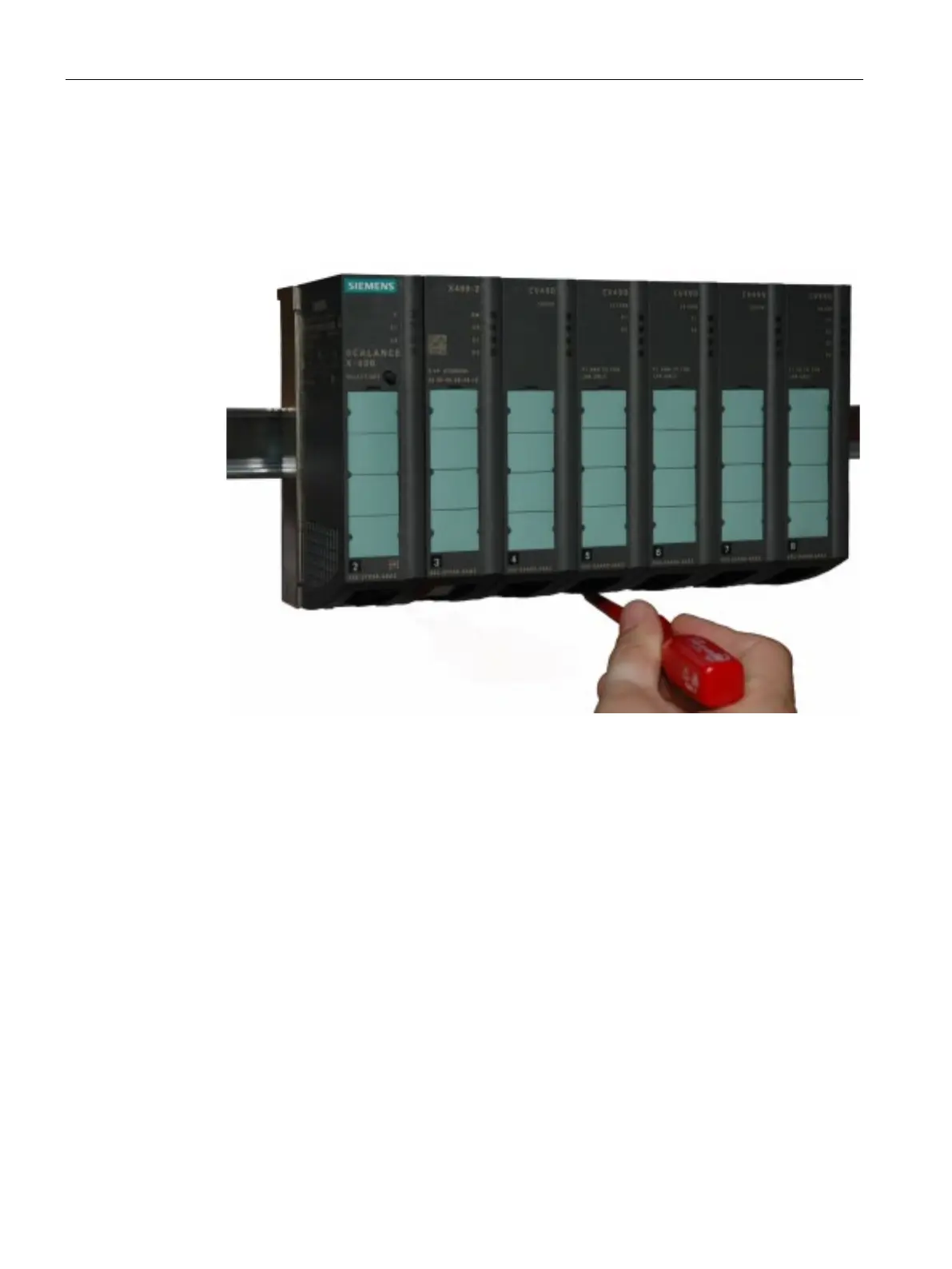

Figure 4-4 Removing the SCALANCE X408-2 from a 35 mm DIN rail
