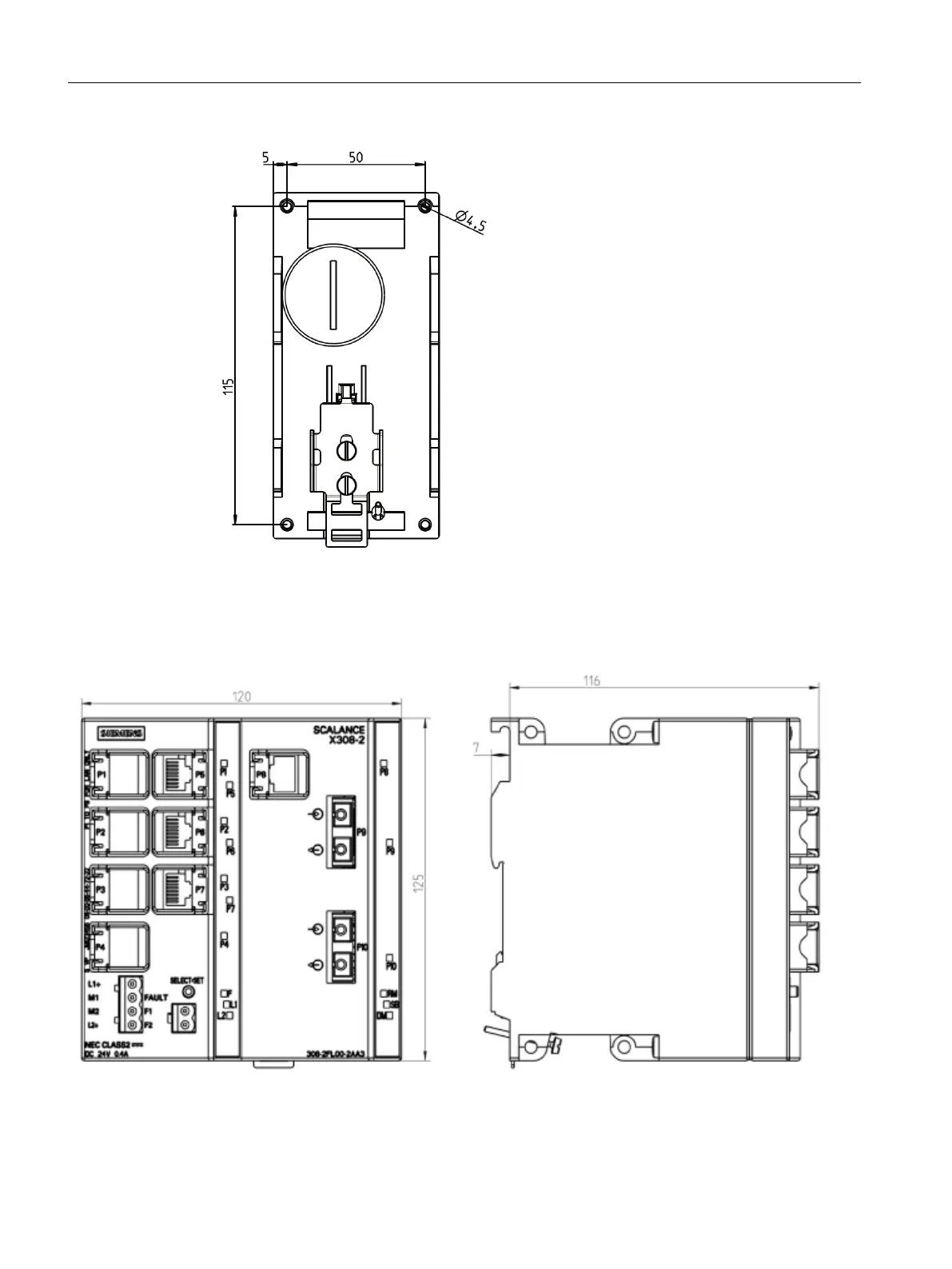

Figure 8-2 Small design dimension drawing (IE Switch X-306)
Medium design
Figure 8-3 Medium design dimension drawing (example used here SCALANCE X308-2)
Dimension drawings
SCALANCE X-300
70 Compact Operating Instructions, 11/2019, A5E00982643-18
